Connector B Installation Note

WARNING: This page is about a different car, the 2004 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.

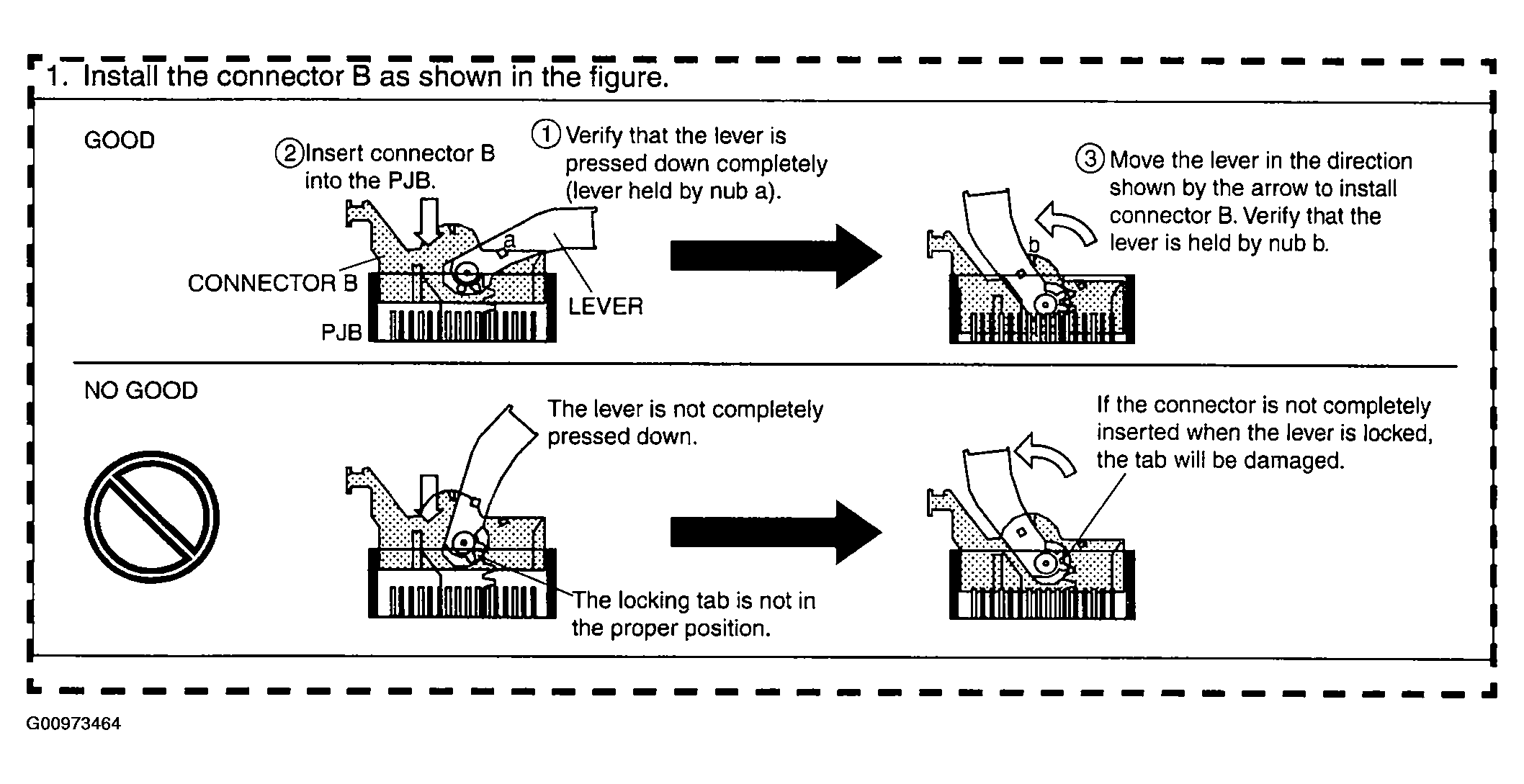

Fig 1: Installing Connector B
G00973464Courtesy of MAZDA MOTORS CORP.
