Installation Procedure

WARNING: This page is about a different car, the 2009 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.
    Fig 1: Identifying Knock Sensor
    GM1800587Courtesy of GENERAL MOTORS CORP.
    CAUTION: Refer to Fastener Caution .
  1. Position the knock sensor to the engine block and install the knock sensor bolt.

    Tighten:  Tighten the bolt to 25 N.m (18 lb ft).

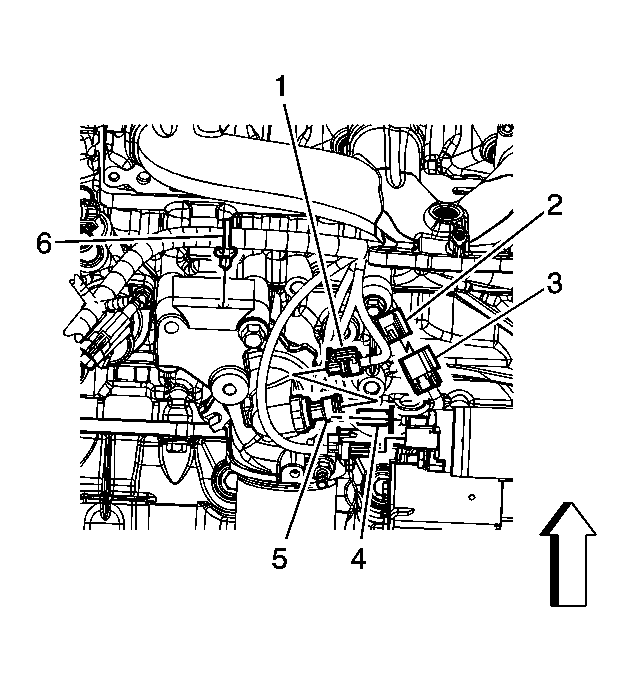

    2. Fig 2: Knock Sensor
    GM1887295Courtesy of GENERAL MOTORS CORP.
  2. Connect the engine wiring harness electrical connector (3) to the knock sensor (2).
  3. Lower the vehicle.
