Power Distribution Schematics

WARNING: This page is about a different car, the 2009 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

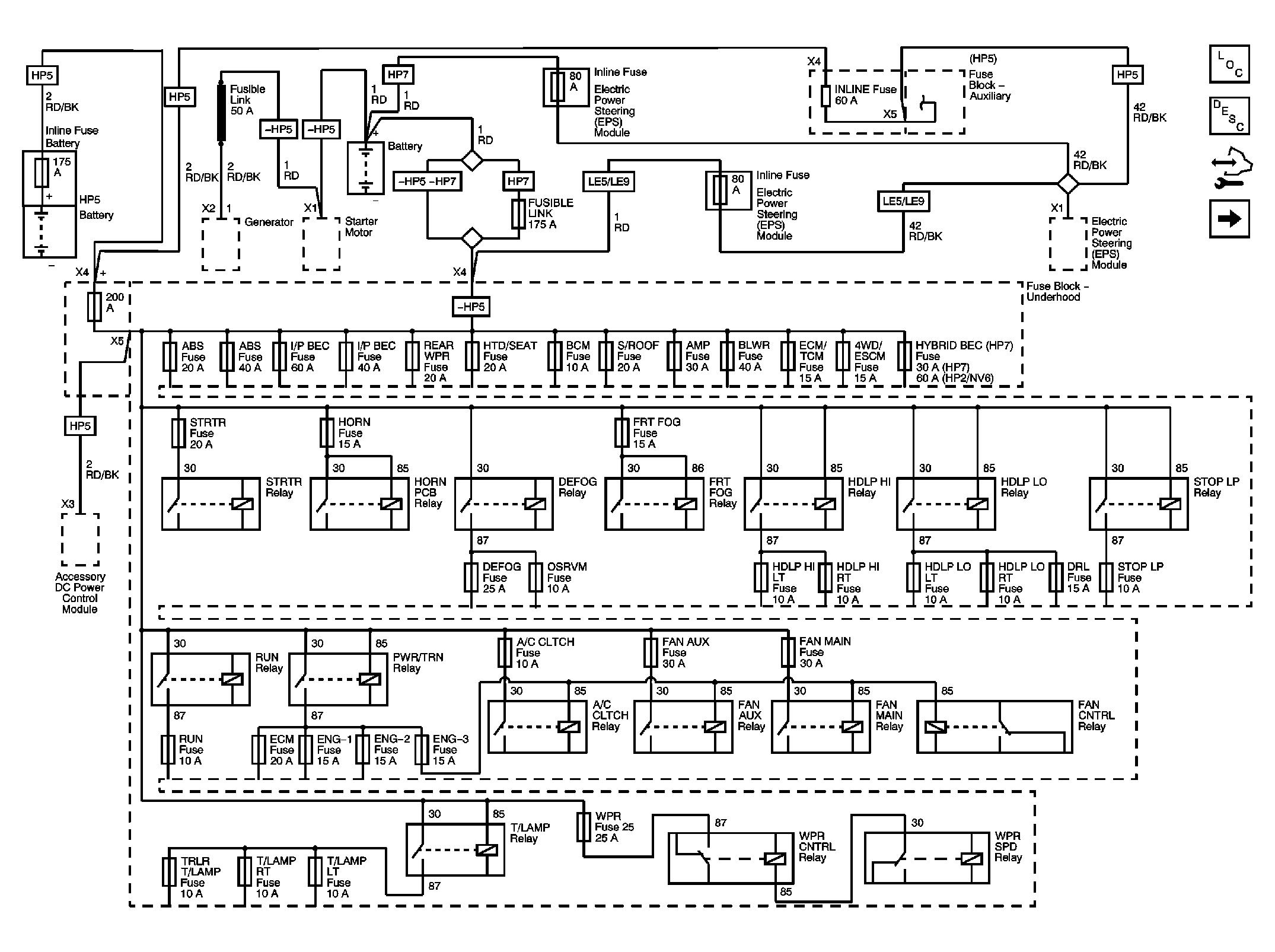

Fig 1: B+ Bus, EPS Fuse and Auxiliary Fuse Block

Courtesy of GENERAL MOTORS CORP.

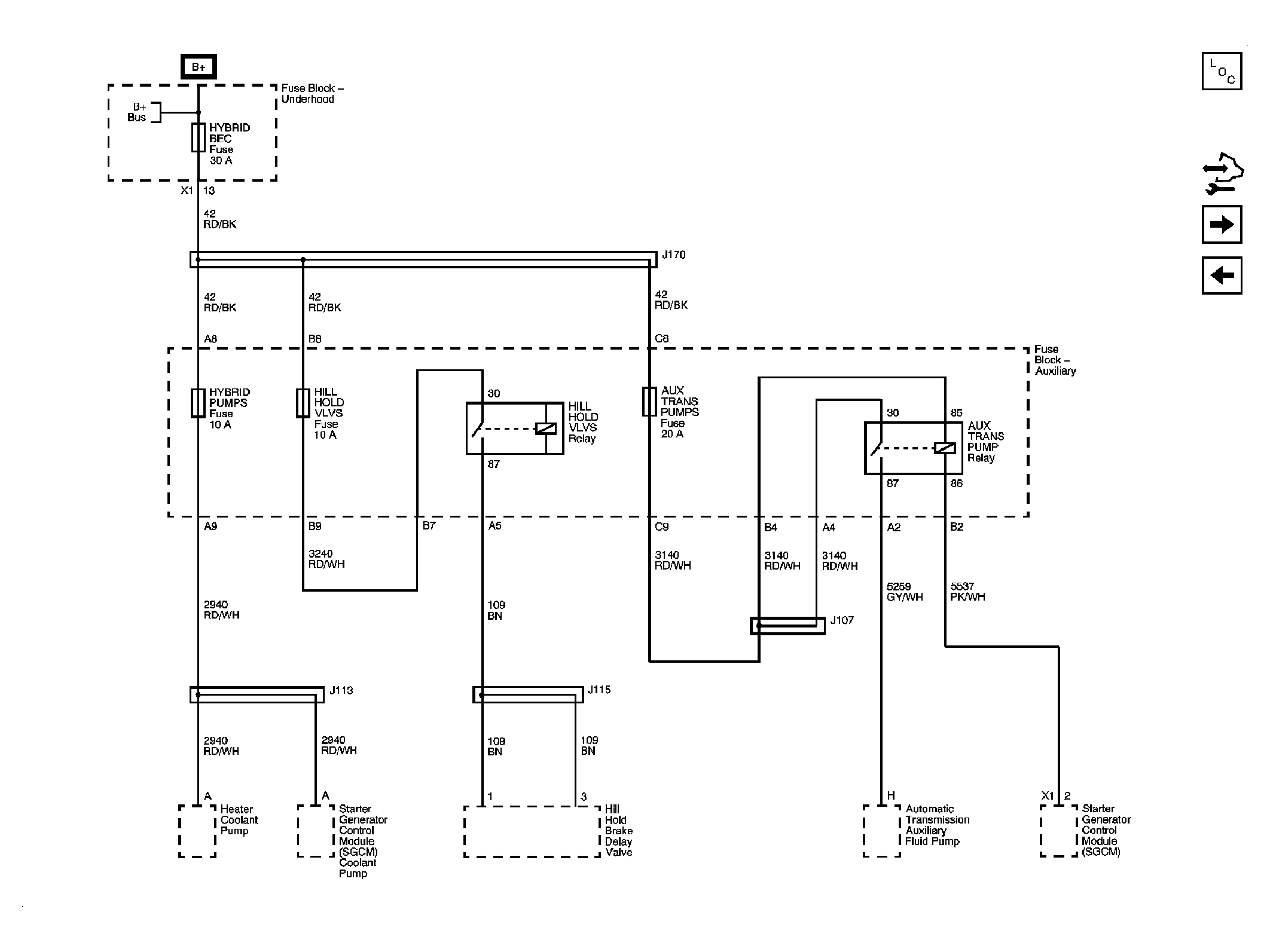

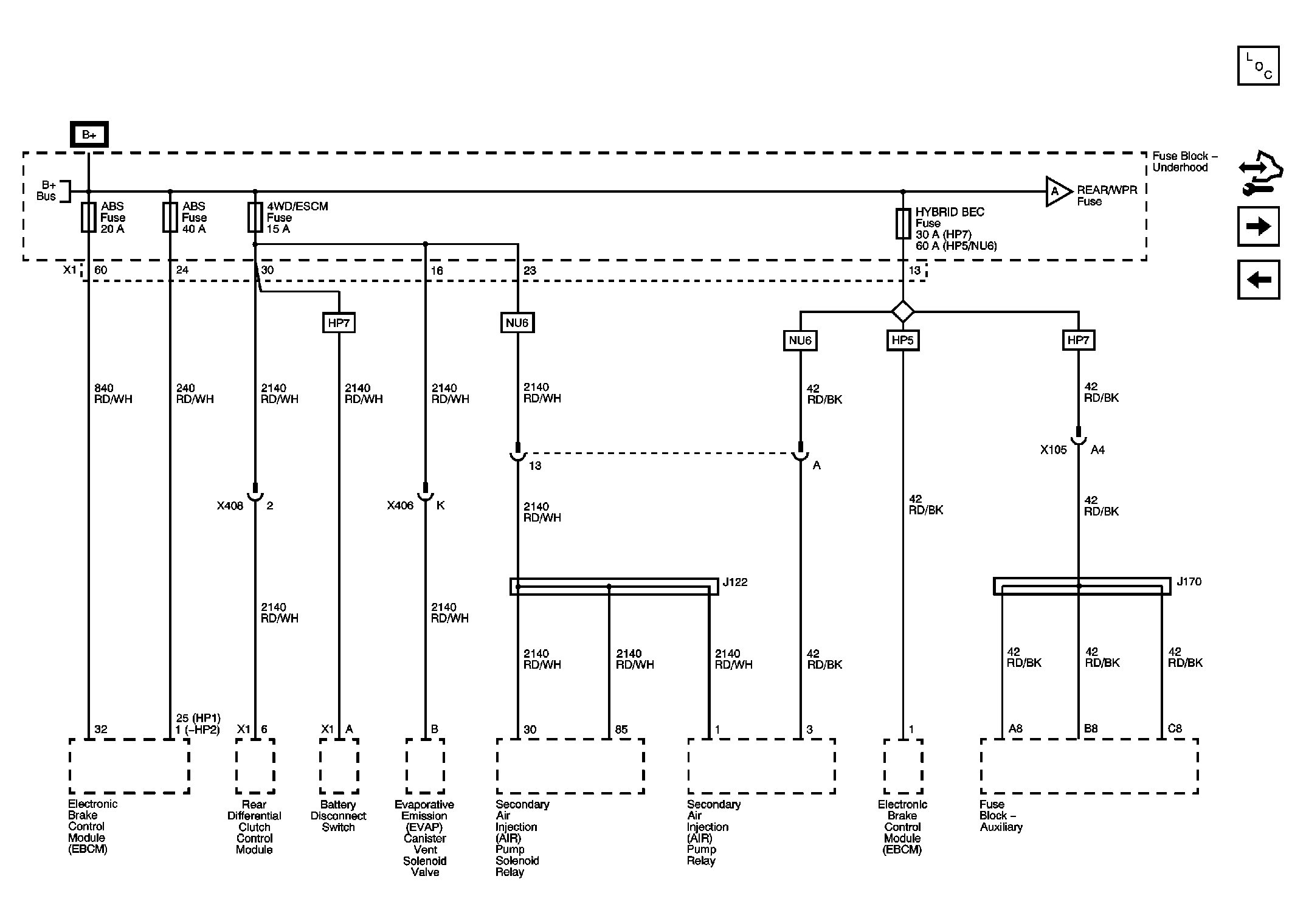

Fig 2: ABS, Hybrid BEC, 4WD/ESCM Fuses

Courtesy of GENERAL MOTORS CORP.

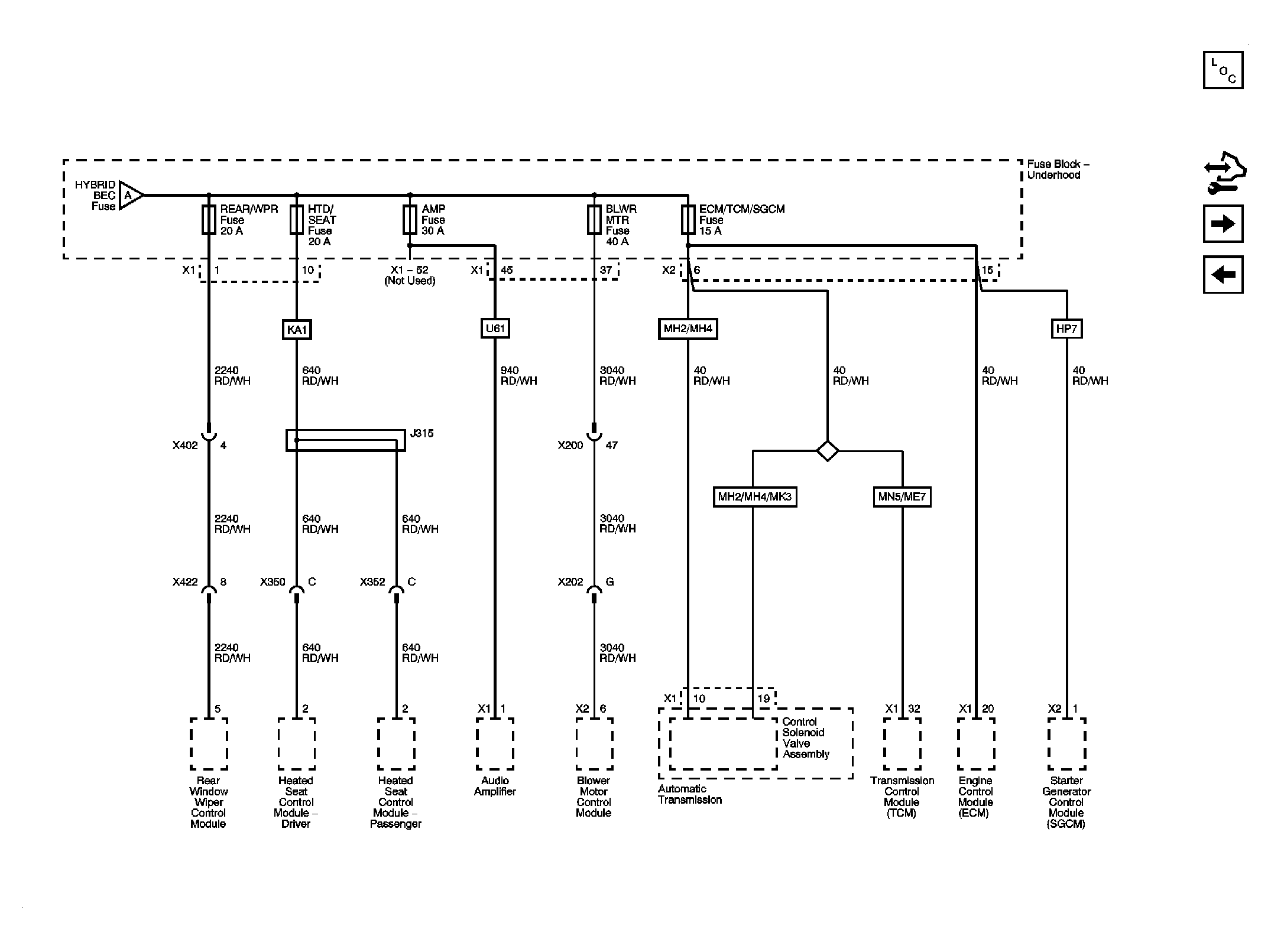

Fig 3: AMP, ECM/TCM/SGCM, HTD Seats, HVAC Blower, Rear Wiper Fuses

Courtesy of GENERAL MOTORS CORP.

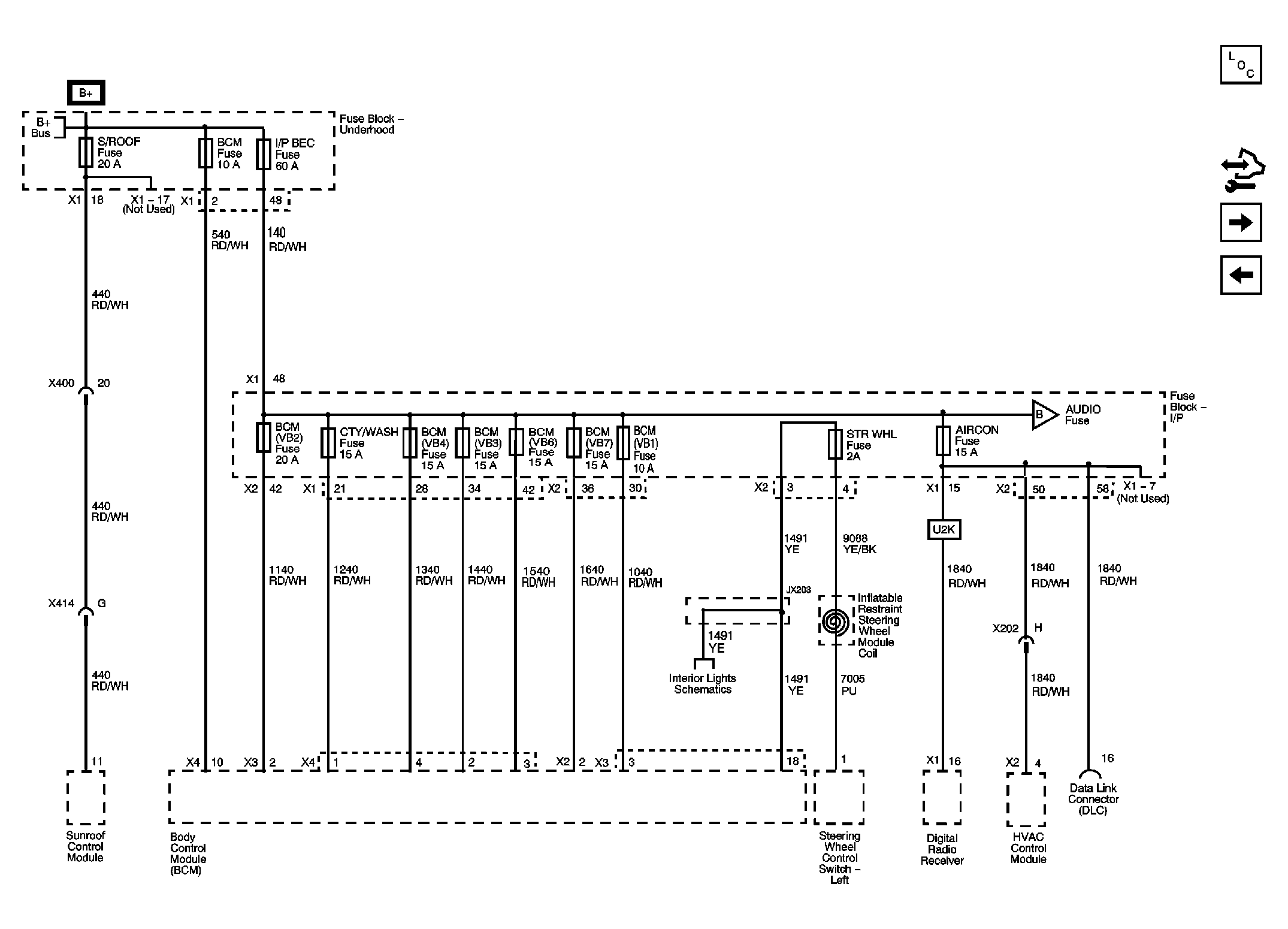

Fig 4: AIRCON, BCM, BCM(VB1), BCM(VB2), BCM (VB3), BCM(VB4), BCM(VB6), BCM(VB7), CTY/WASH, I/PBEC, S/ROOF

Courtesy of GENERAL MOTORS CORP.

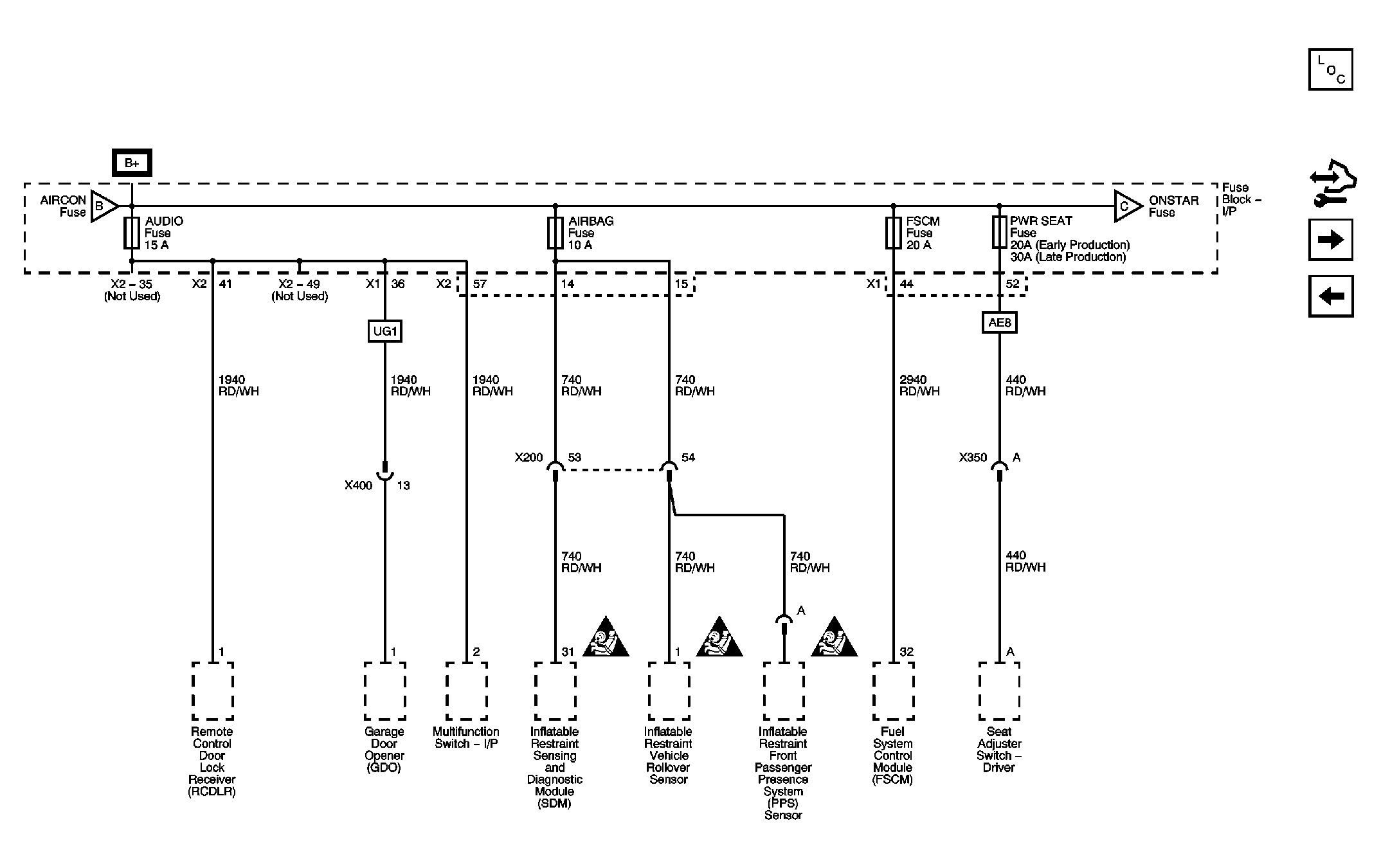

Fig 5: AIR BAG, AUDIO, FSCM, POWER SEAT Fuses

Courtesy of GENERAL MOTORS CORP.

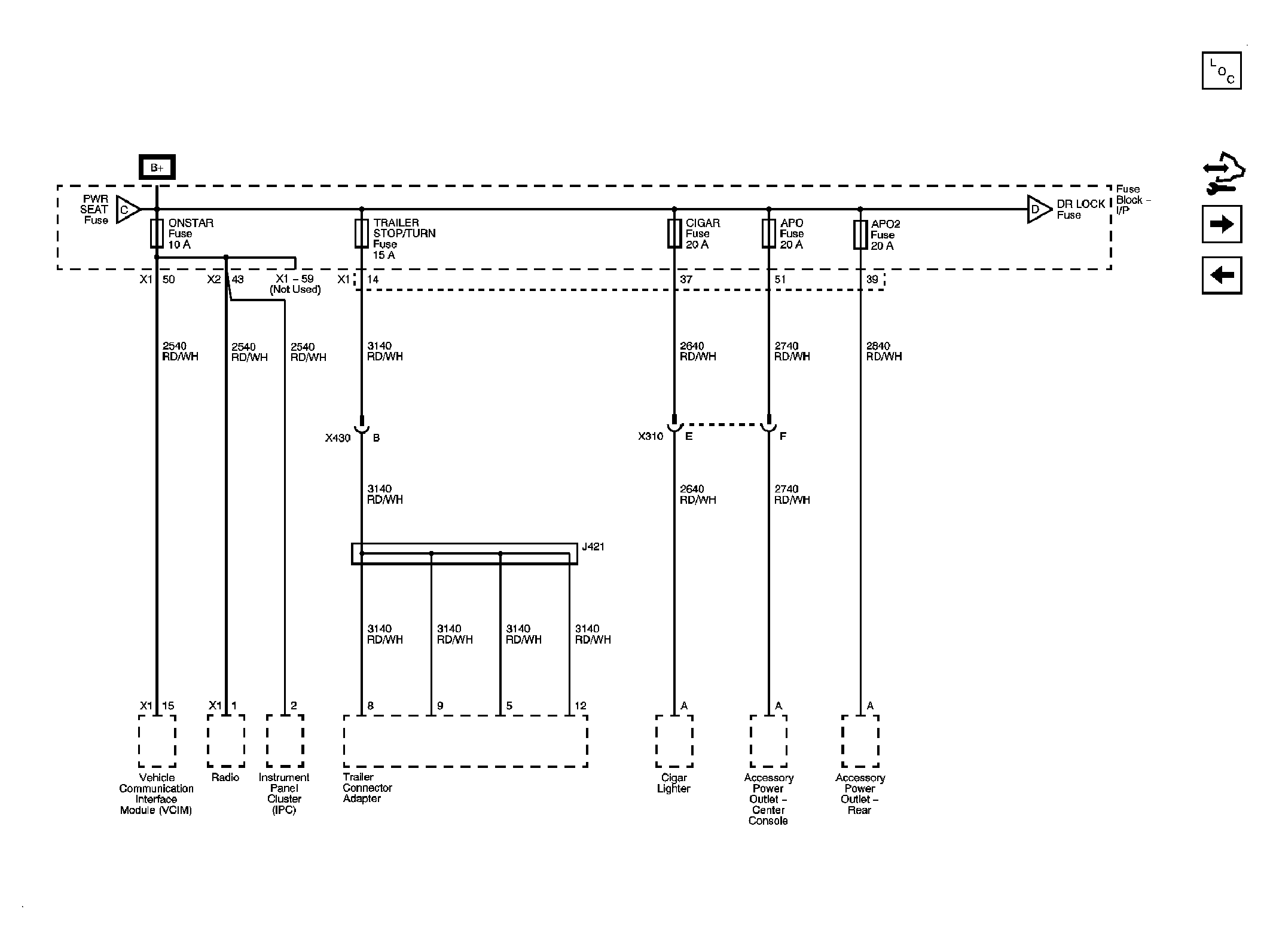

Fig 6: APO, APO 2, Cigar, ONSTAR, Trailer STOP/TRN Fuses

Courtesy of GENERAL MOTORS CORP.

Fig 7: Door Lock, FRT Washer, RLS Relays

Courtesy of GENERAL MOTORS CORP.

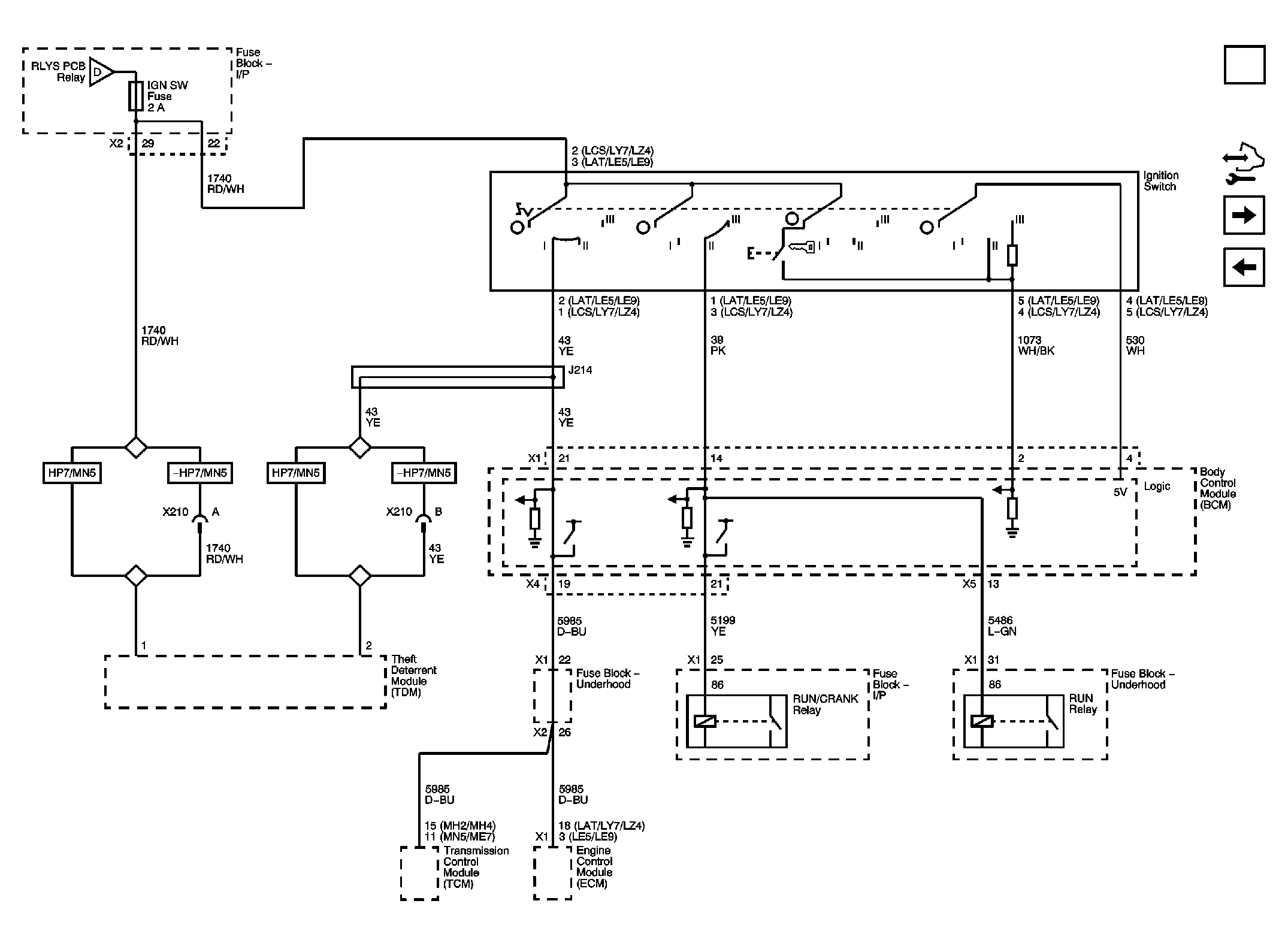

Fig 8: Ignition Switch Fuse

Courtesy of GENERAL MOTORS CORP.

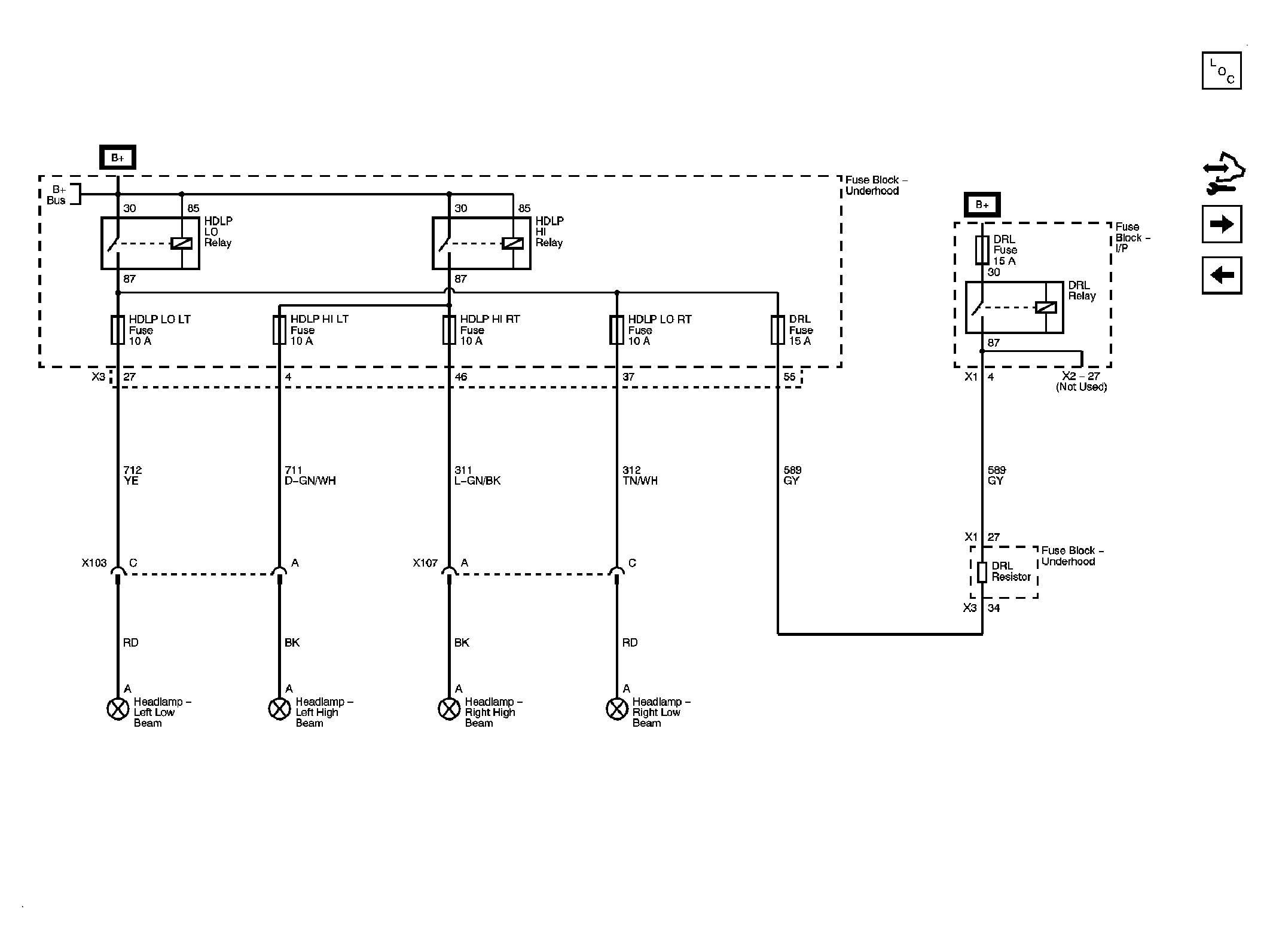

Fig 9: HDLP LO, HDLP HI, and DRL Relays

Courtesy of GENERAL MOTORS CORP.

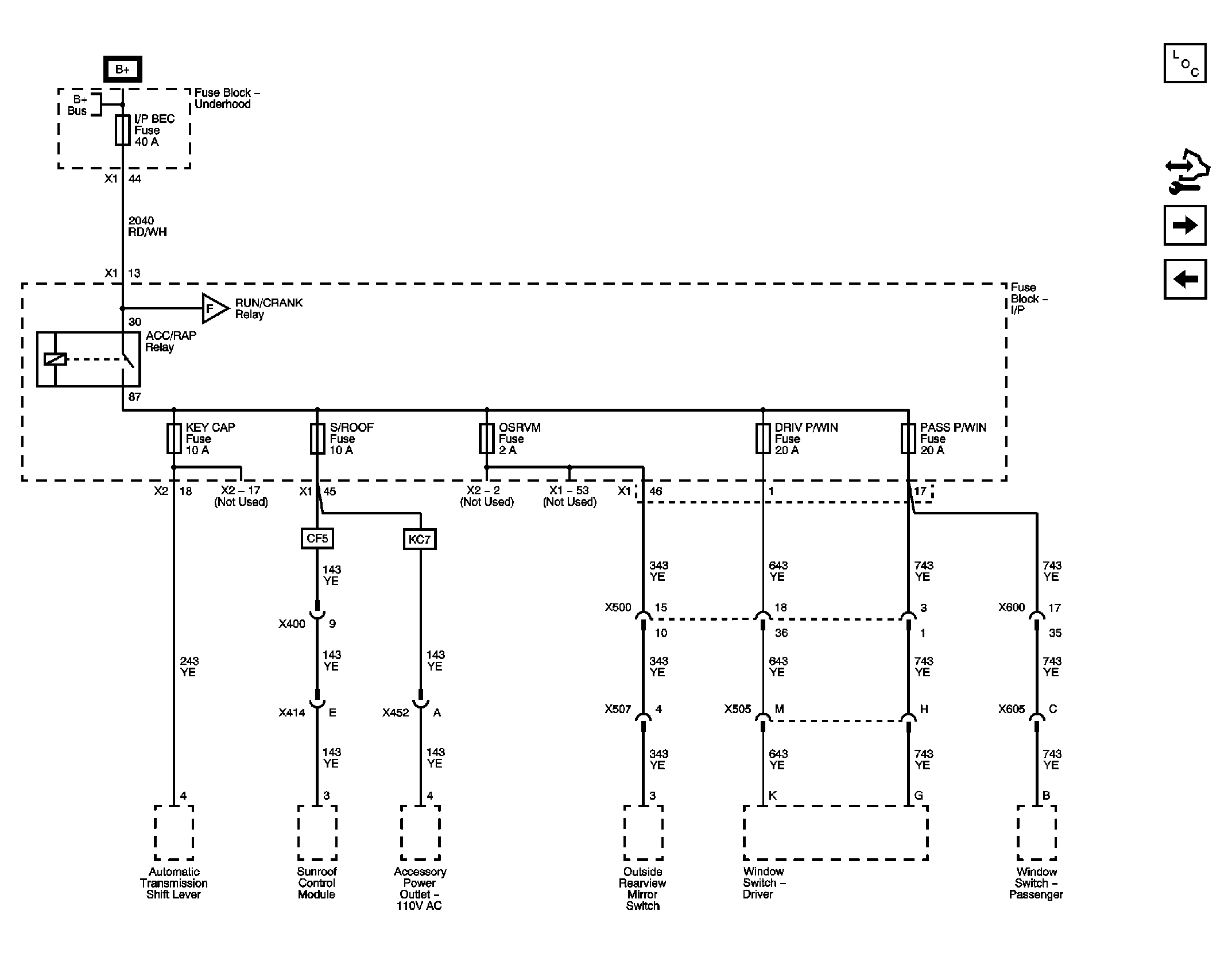

Fig 10: RAP Relay

Courtesy of GENERAL MOTORS CORP.

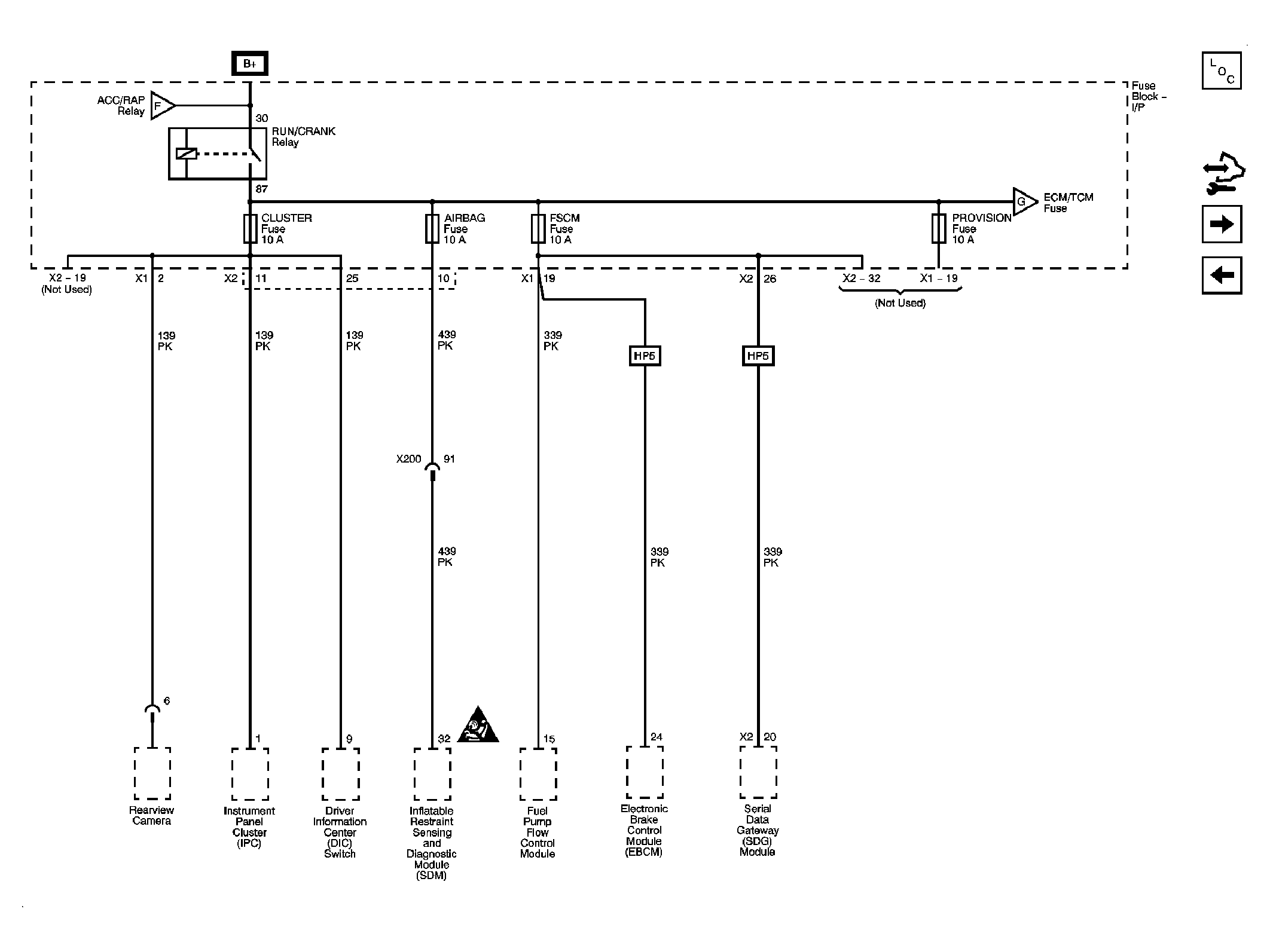

Fig 11: AIR BAG, CLUSTER, FSCM Fuses, RUN/CRANK Relay

Courtesy of GENERAL MOTORS CORP.

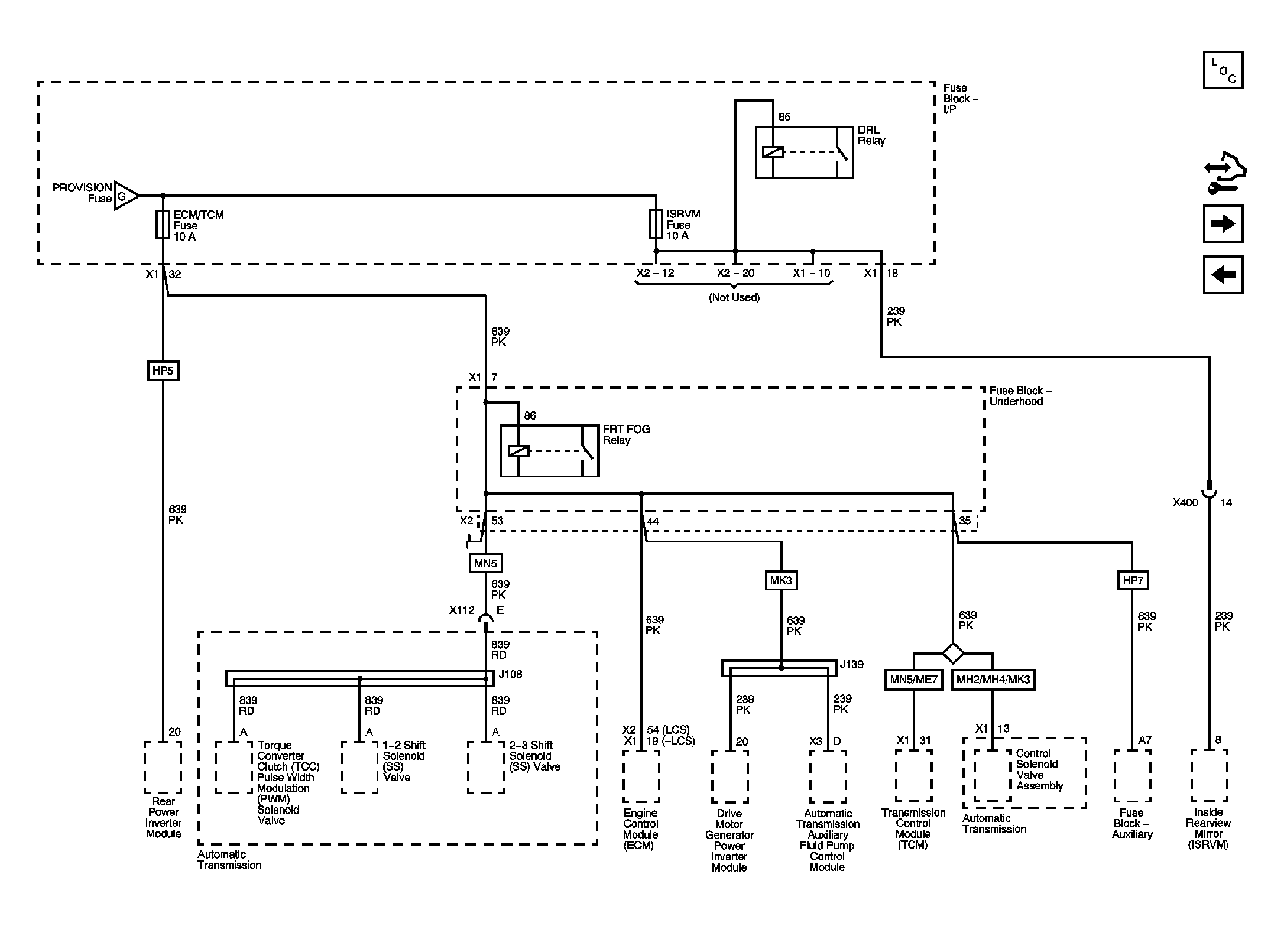

Fig 12: ECM/TCM and ISRV Fuses

Courtesy of GENERAL MOTORS CORP.

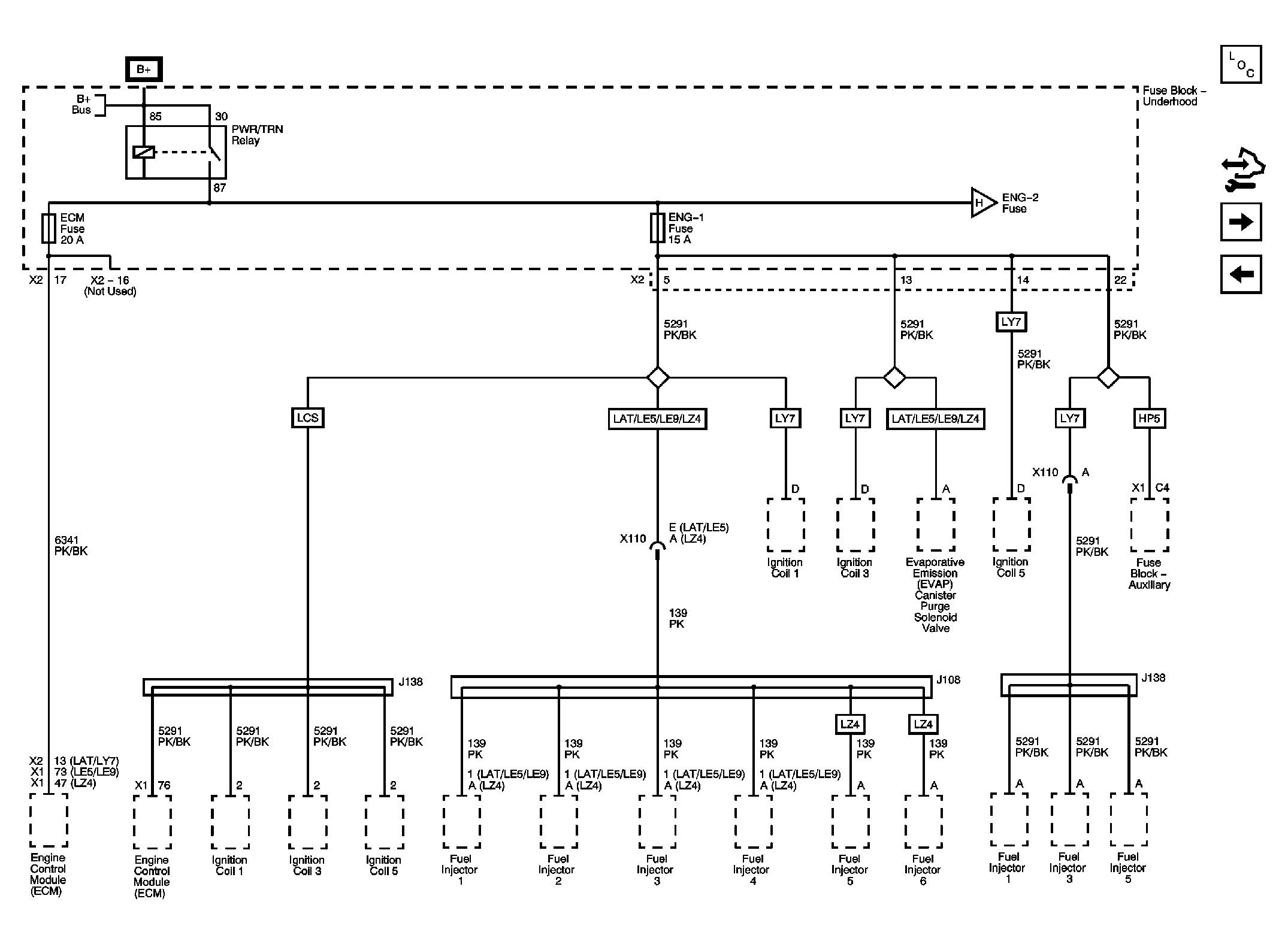

Fig 13: ECM, ENG1 Fuses, PWR/TRN Relay

Courtesy of GENERAL MOTORS CORP.

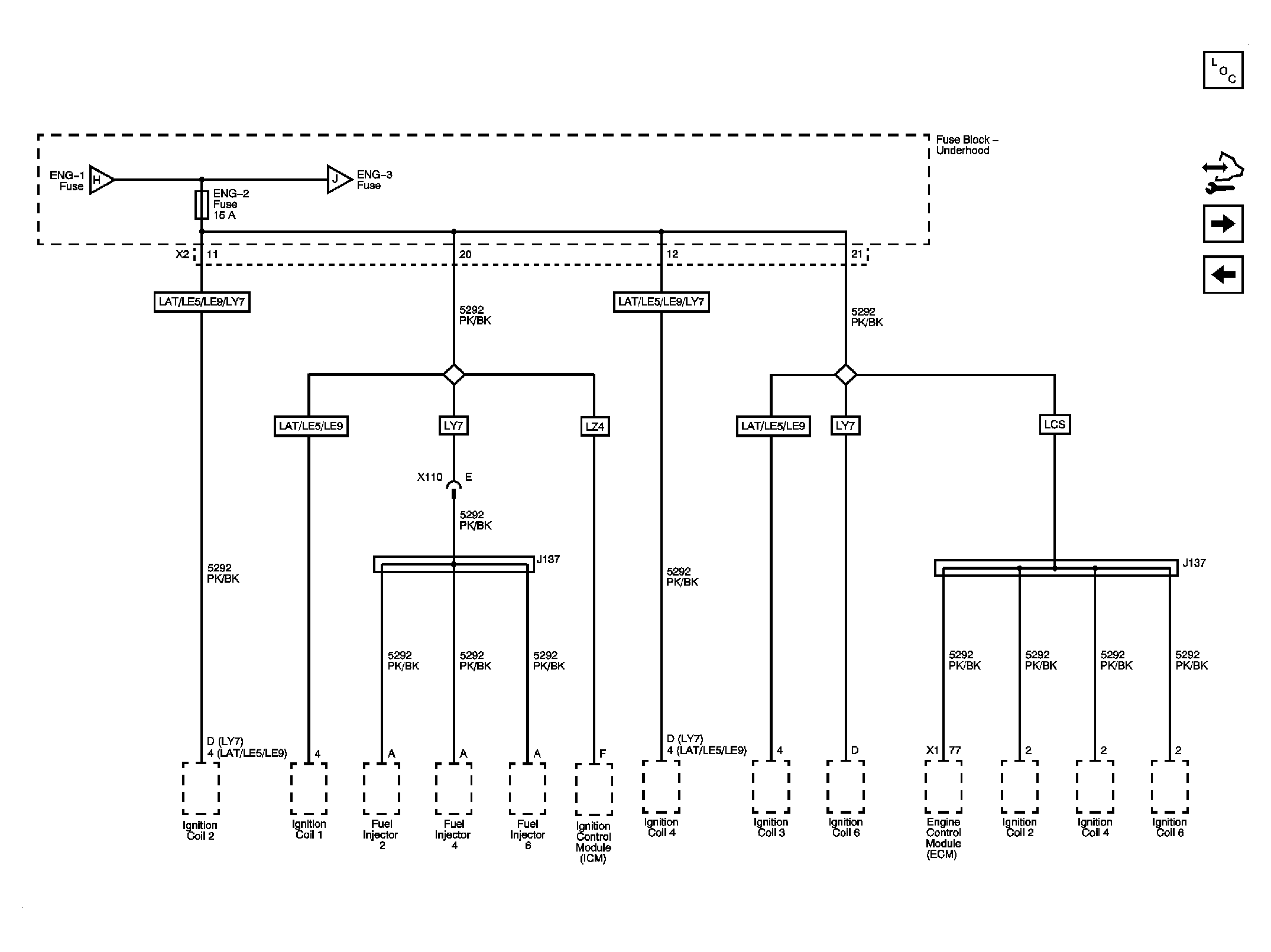

Fig 14: ENG 2 Fuse

Courtesy of GENERAL MOTORS CORP.

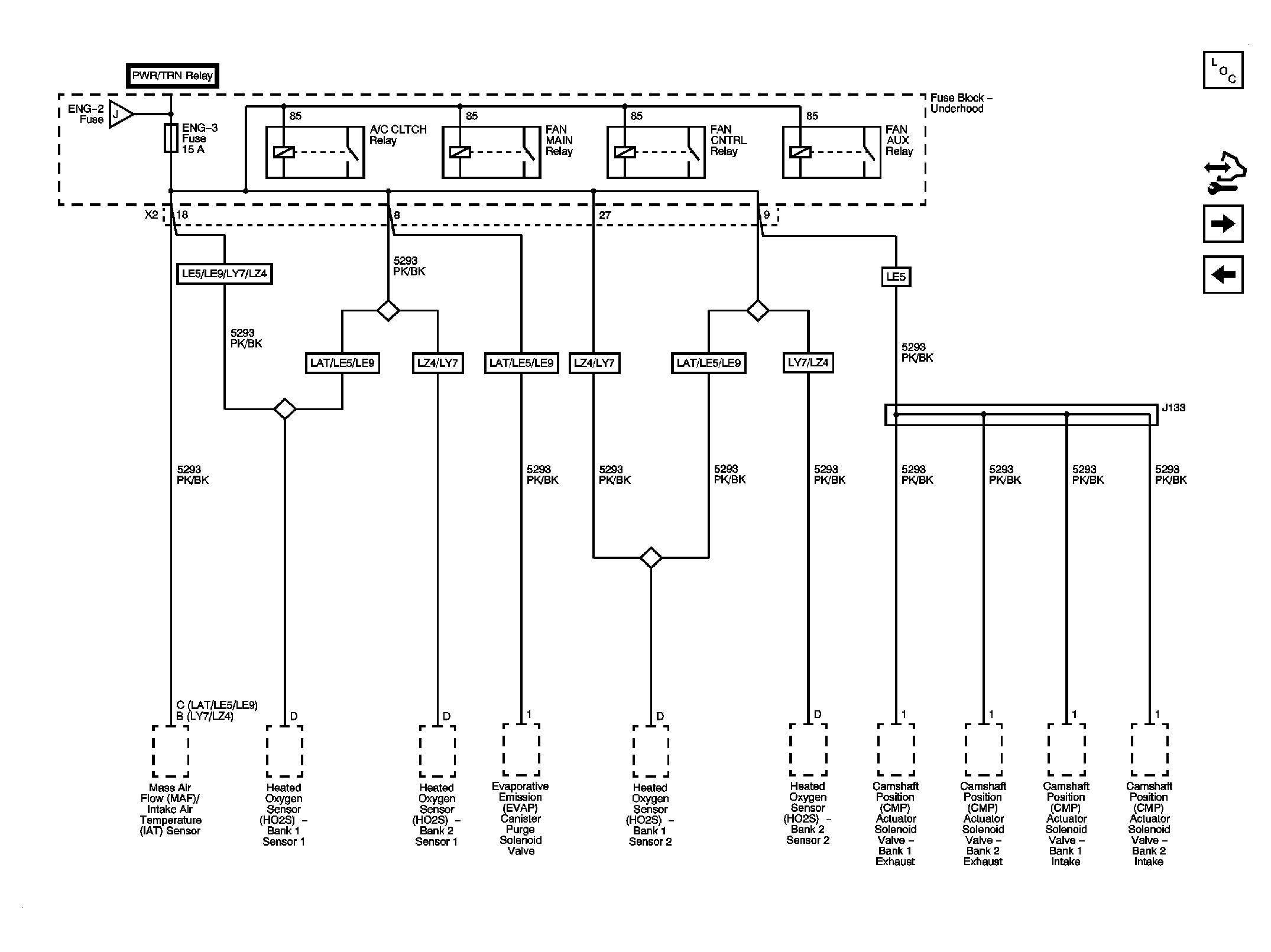

Fig 15: ENG3 Fuse

Courtesy of GENERAL MOTORS CORP.

Fig 16: Run Relay

Courtesy of GENERAL MOTORS CORP.

Fig 17: Fuse Block Auxiliary (HP7)

Courtesy of GENERAL MOTORS CORP.

Fig 18: Fuse Block Auxiliary (HP5) B+ Bus

Courtesy of GENERAL MOTORS CORP.

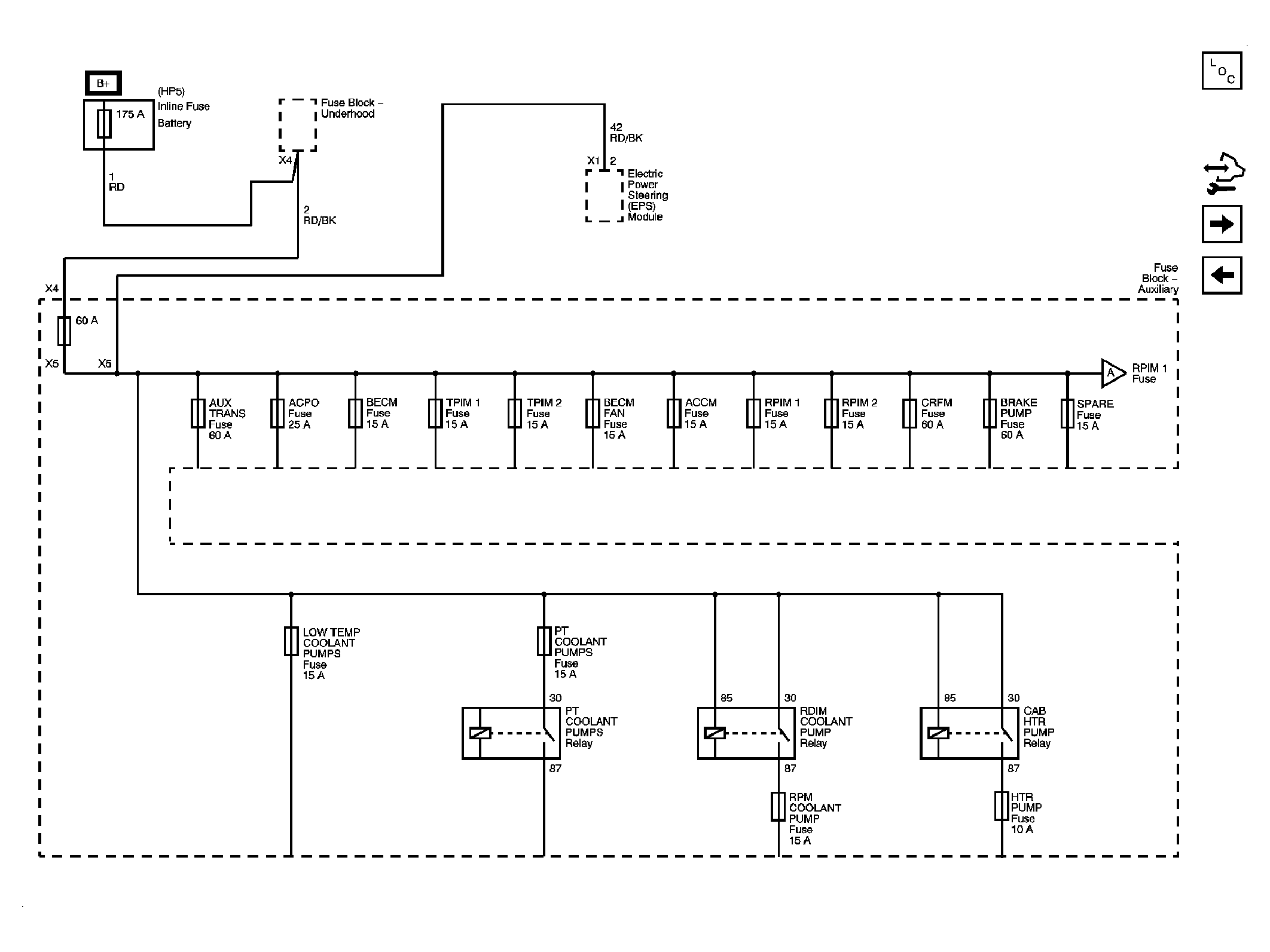

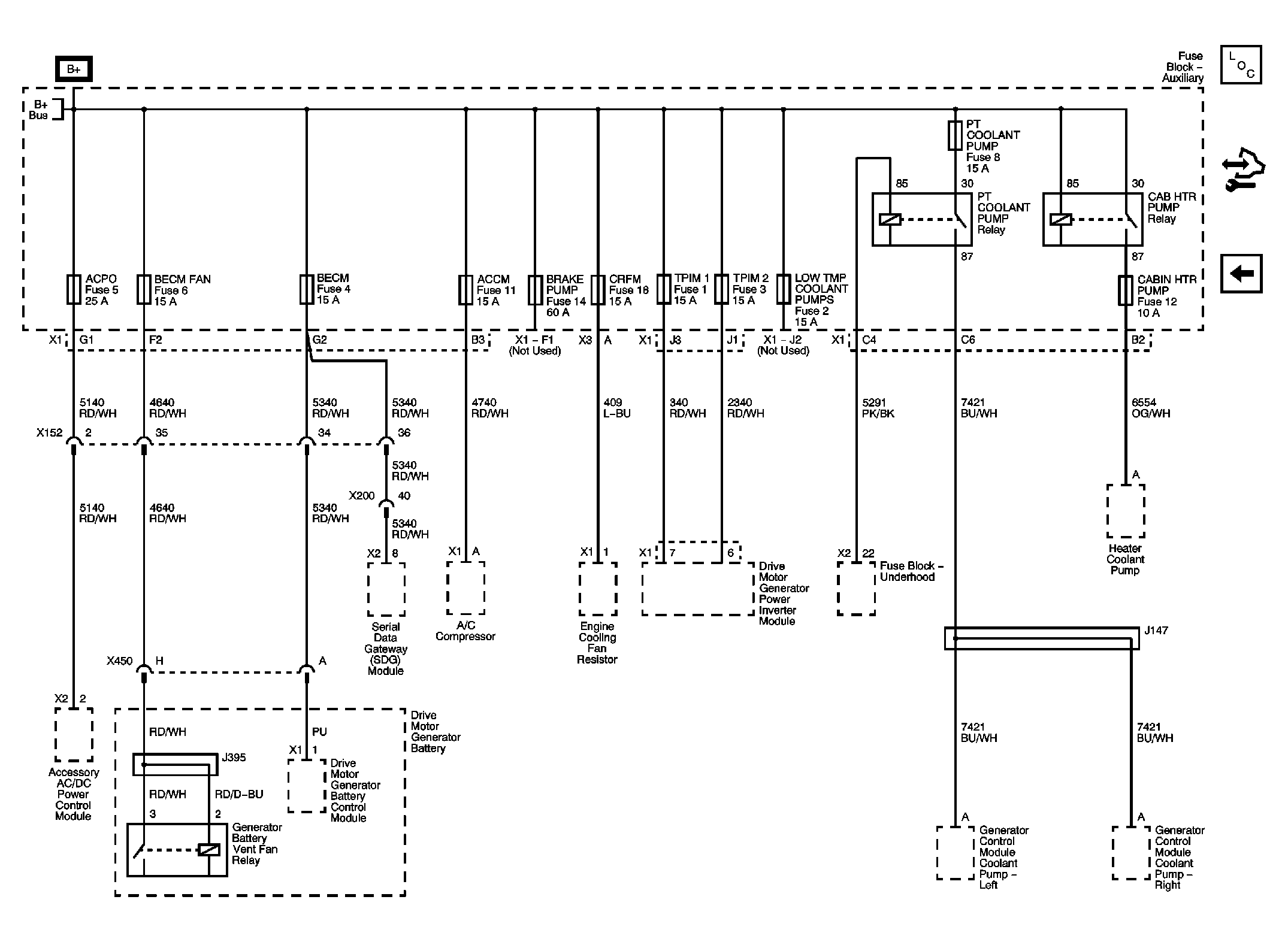

Fig 19: Fuse Block - Auxiliary, ACCM, ACPO, BECM Fan, BECM, CRFM, HTRPUMP, TPIM1, TPIM2 Fuses and CAB HTR PUMP Relay

Courtesy of GENERAL MOTORS CORP.
