Ignition Lock Schematics

WARNING: This page is about a different car, the 2009 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

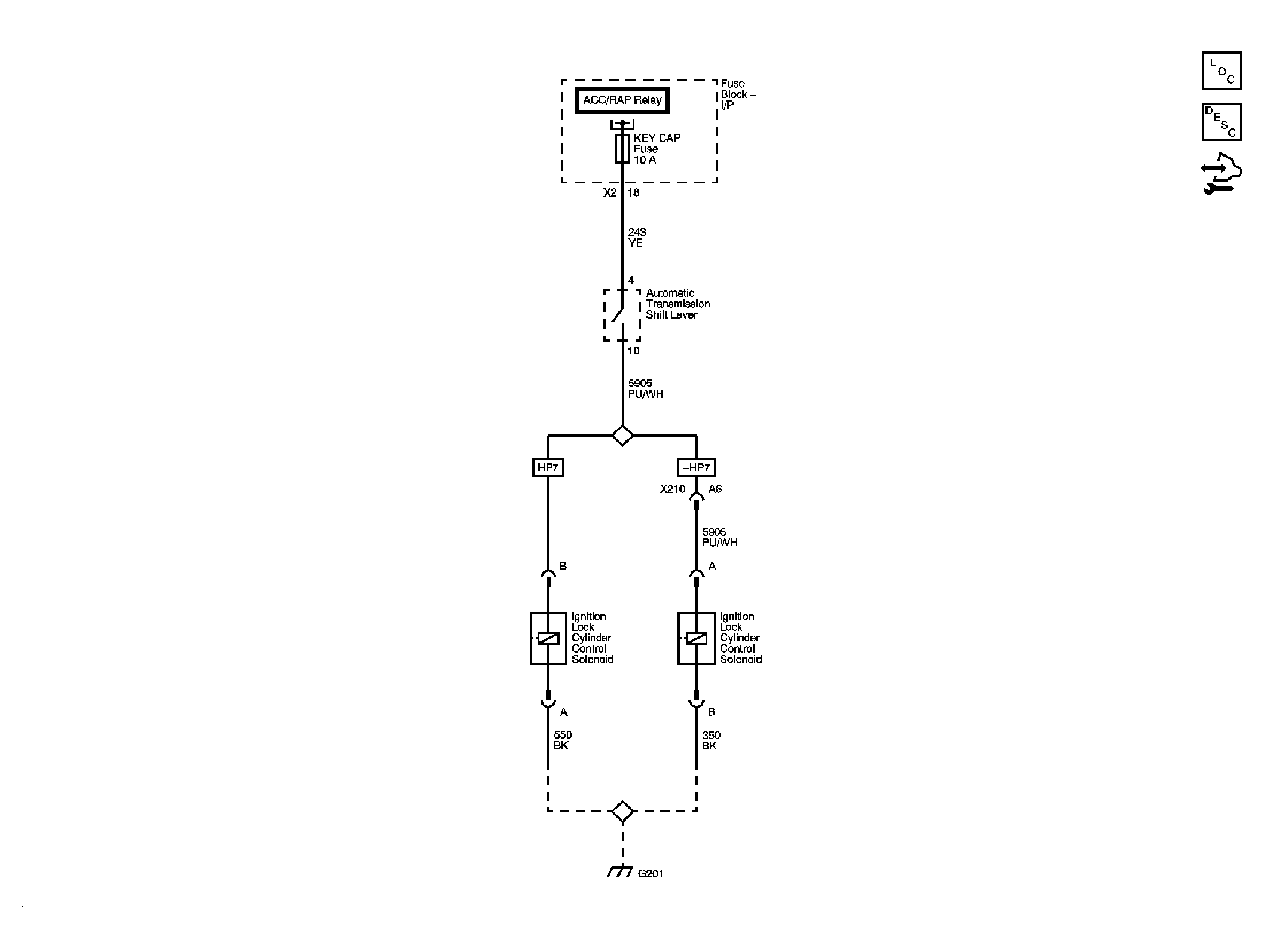

Fig 1: Ignition Lock Schematic
GM2080178Courtesy of GENERAL MOTORS CORP.
