Removal Procedure

WARNING: This page is about a different car, the 2003 Buick Regal and 2003 Buick Century. However, it is still accessible from the selected car via links, so may be relevant.
  1. Turn the ignition ON.
  2. Turn the wiper switch to the DELAY position.
  3. Turn the ignition OFF when the windshield wipers are in the midwipe position.
  4. Press the wiper blade clip button in to release the wiper blade from the inside radius of the wiper arm.

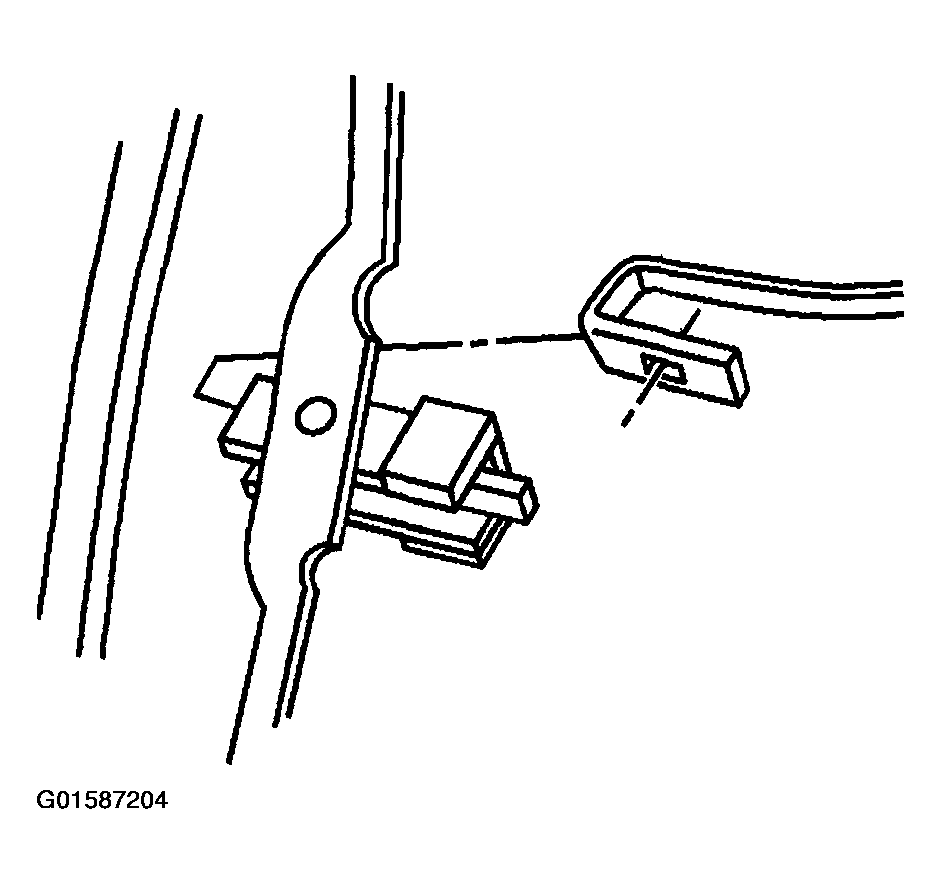

    Fig 1: Releasing Wiper Blade Pivot From Wiper Arm Hook
    G01587204Courtesy of GENERAL MOTORS CORP.
  5. Remove the wiper arm out through the opening in the wiper blade.
    Fig 2: Removing Wiper Arm
    G01587205Courtesy of GENERAL MOTORS CORP.
