Installation Procedure

WARNING: This page is about a different car, the 2003 GMC Sierra, 2003 GMC Cab & Chassis Sierra, 2003 Chevrolet Silverado, and 2003 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the vent inlet hose to the surge tank.
  2. Reposition the vent inlet hose clamp to the surge tank.
  3. Install the vent inlet hose to the radiator.
  4. Reposition the vent inlet hose clamp to the radiator.
  5. Fill the cooling system. Refer to Draining and Filling Cooling System .

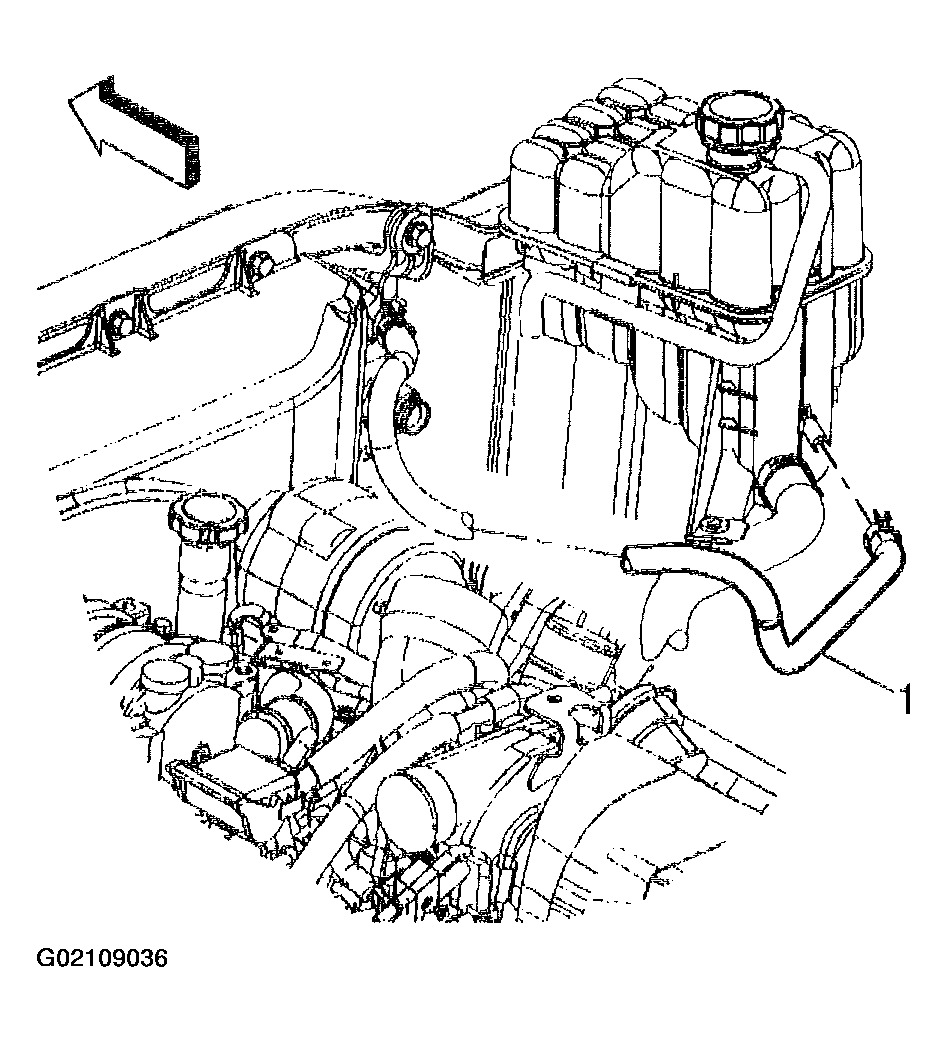

    Fig 1: Install Vent Inlet Hose
    G02109036Courtesy of GENERAL MOTORS CORP.
