Removal Procedure

  1. Remove the battery negative cable from the battery.
  2. Raise and suitably support the vehicle.
  3. Remove the electrical connector from the engine oil pressure sensor.
  4. Remove the engine oil pressure switch.

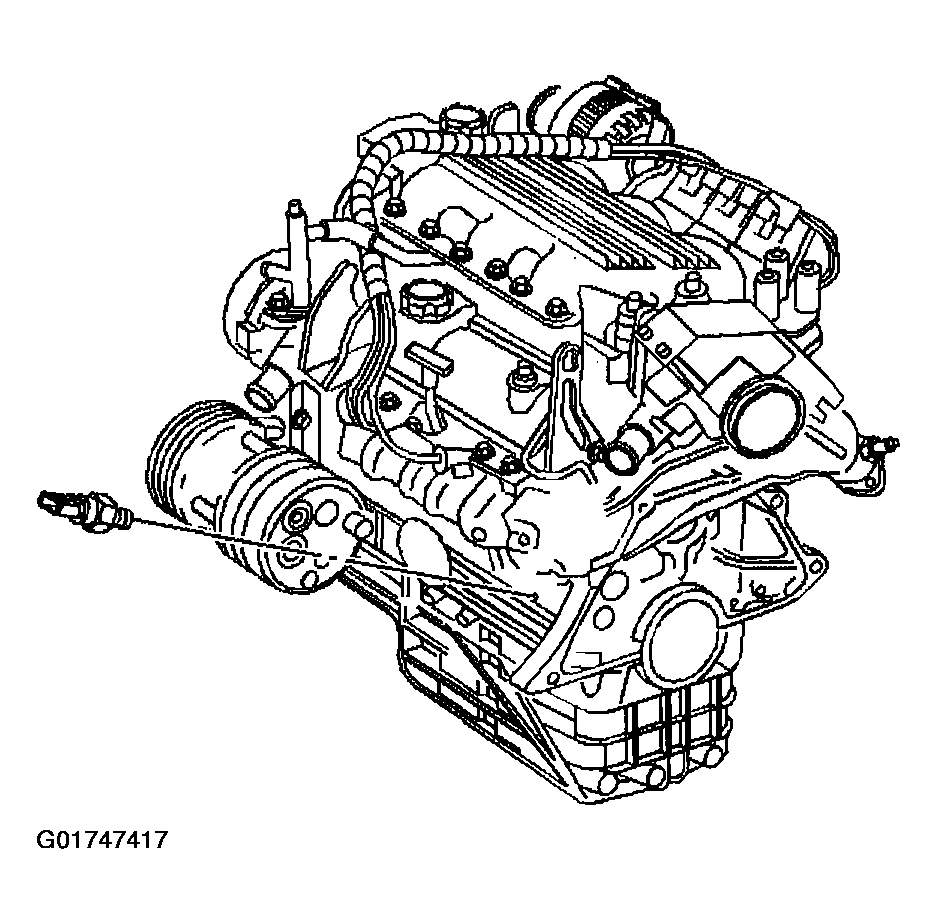

    Fig 1: Removing Engine Oil Pressure Switch
    G01747417Courtesy of GENERAL MOTORS CORP.
