Scan Tool Data List

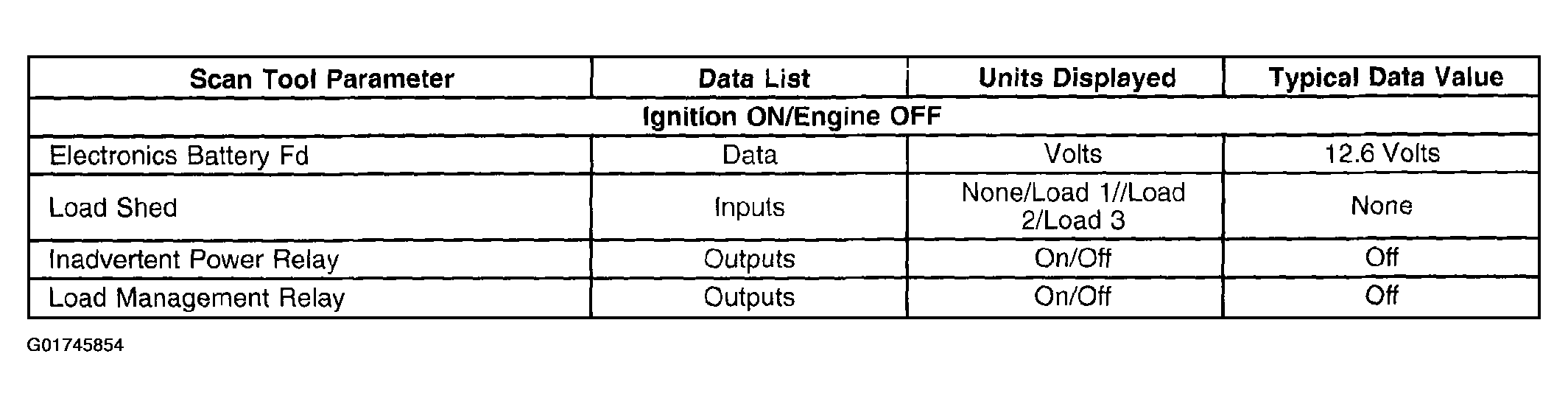

Fig 1: Body Control Module (BCM)

G01745854

Courtesy of GENERAL MOTORS CORP.

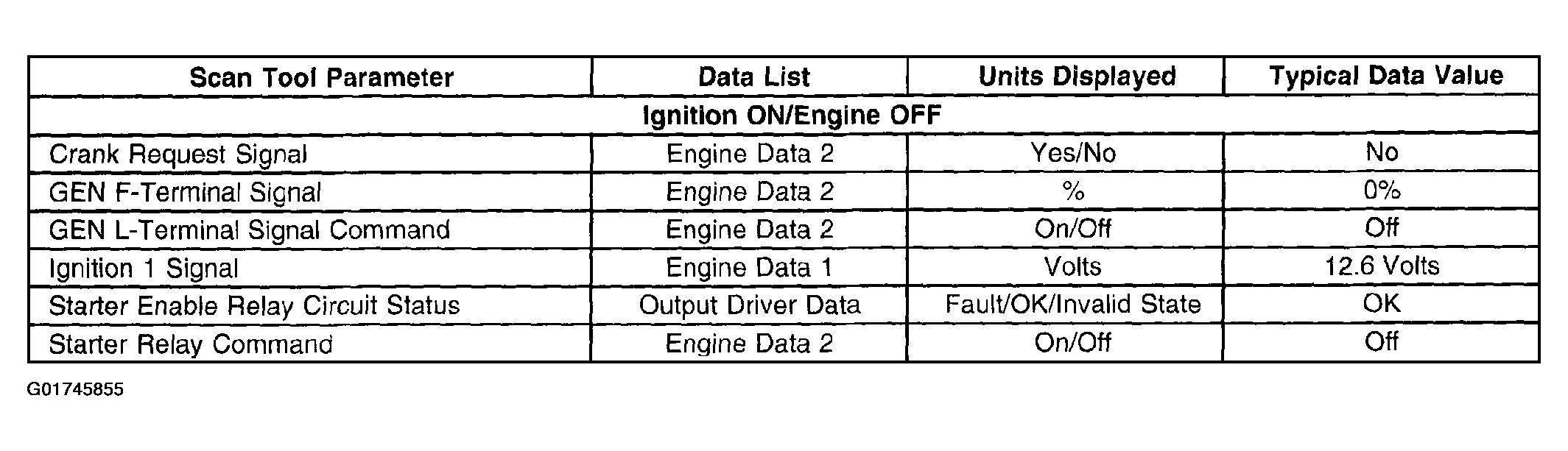

Fig 2: Powertrain Control Module (PCM)

G01745855

Courtesy of GENERAL MOTORS CORP.
