ABS Schematics

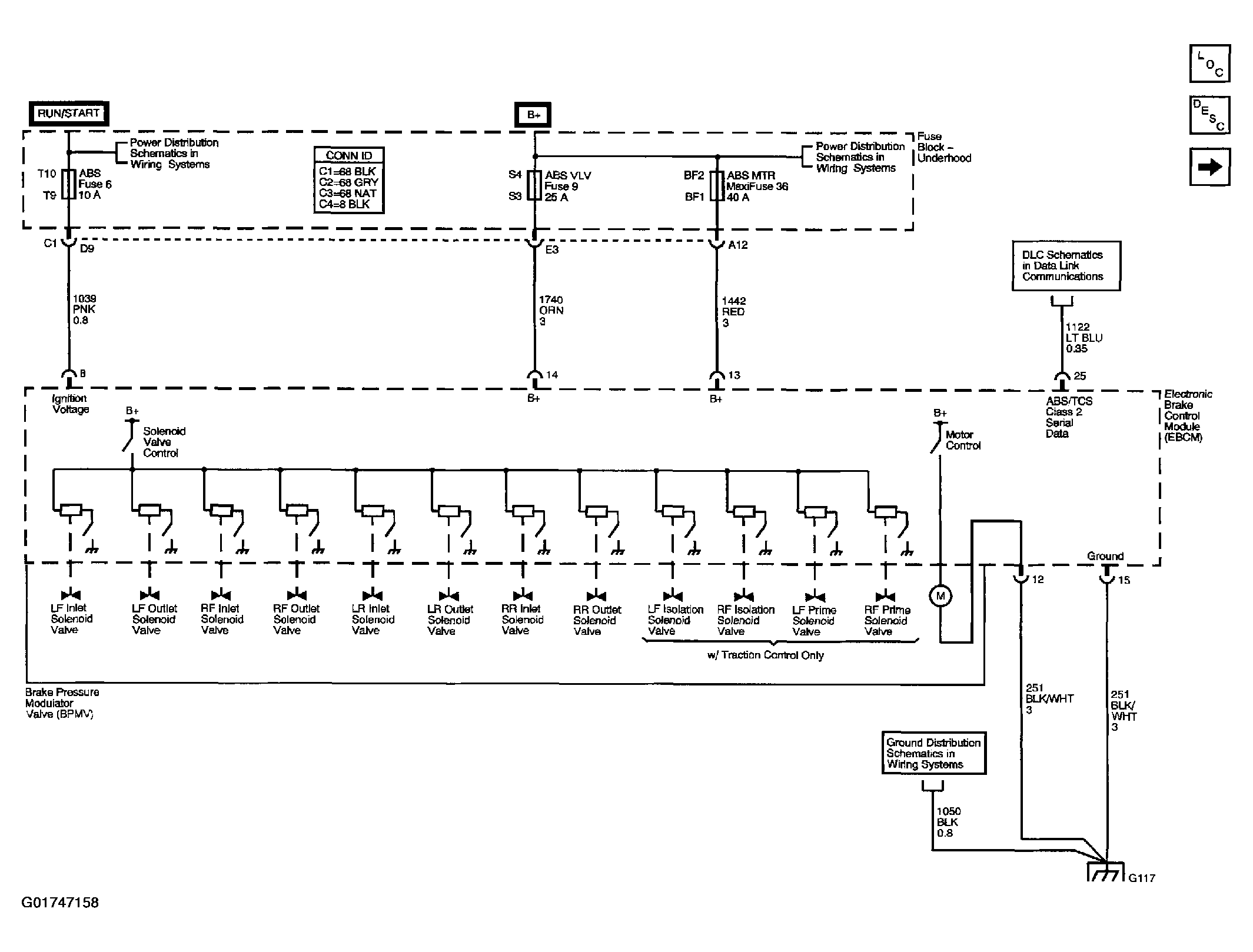

Fig 1: ABS Schematics (Module Power, Ground, and DLC)
G01747158Courtesy of GENERAL MOTORS CORP.

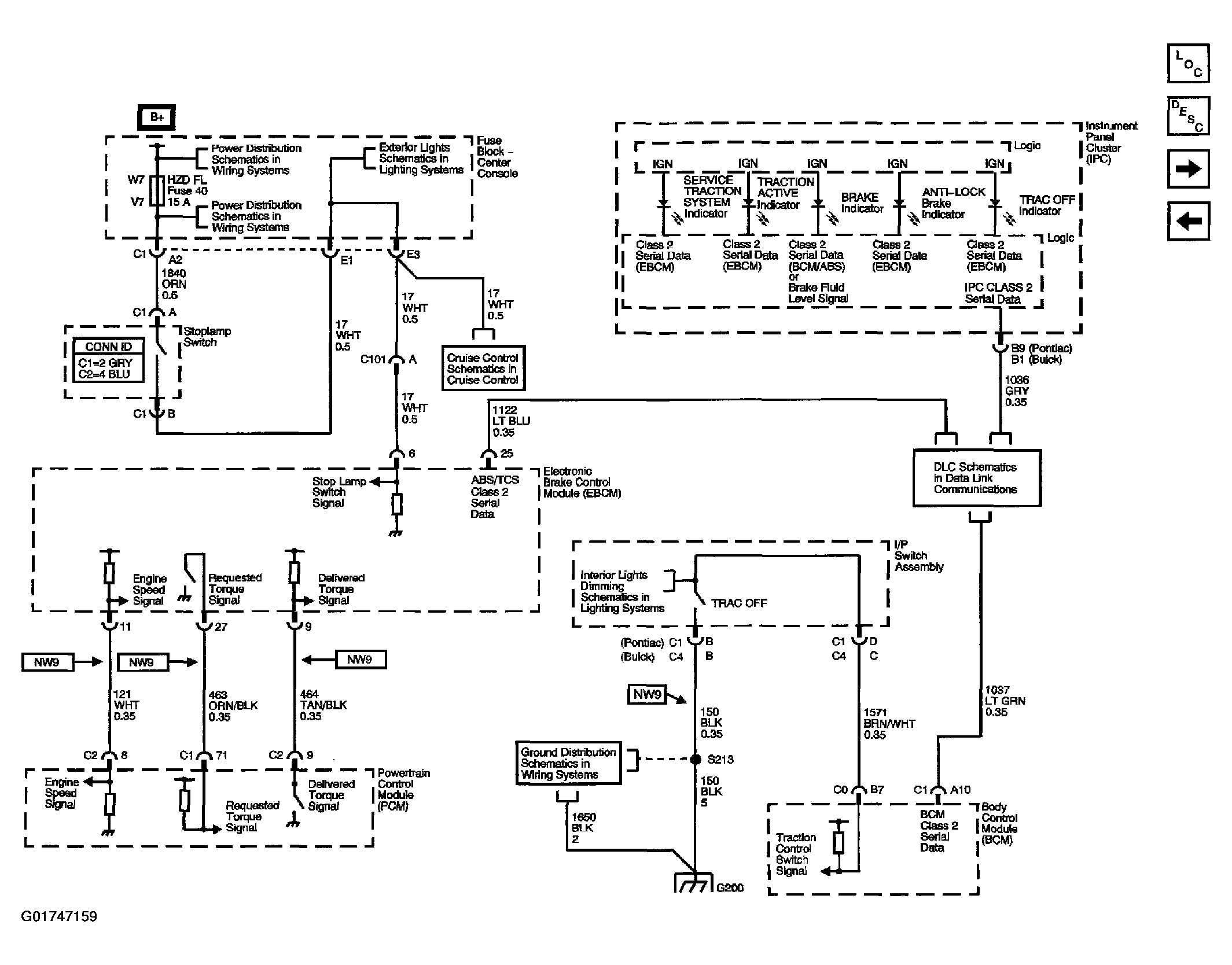

Fig 2: ABS Schematics (Indicators and Traction Control-NW9)
G01747159Courtesy of GENERAL MOTORS CORP.

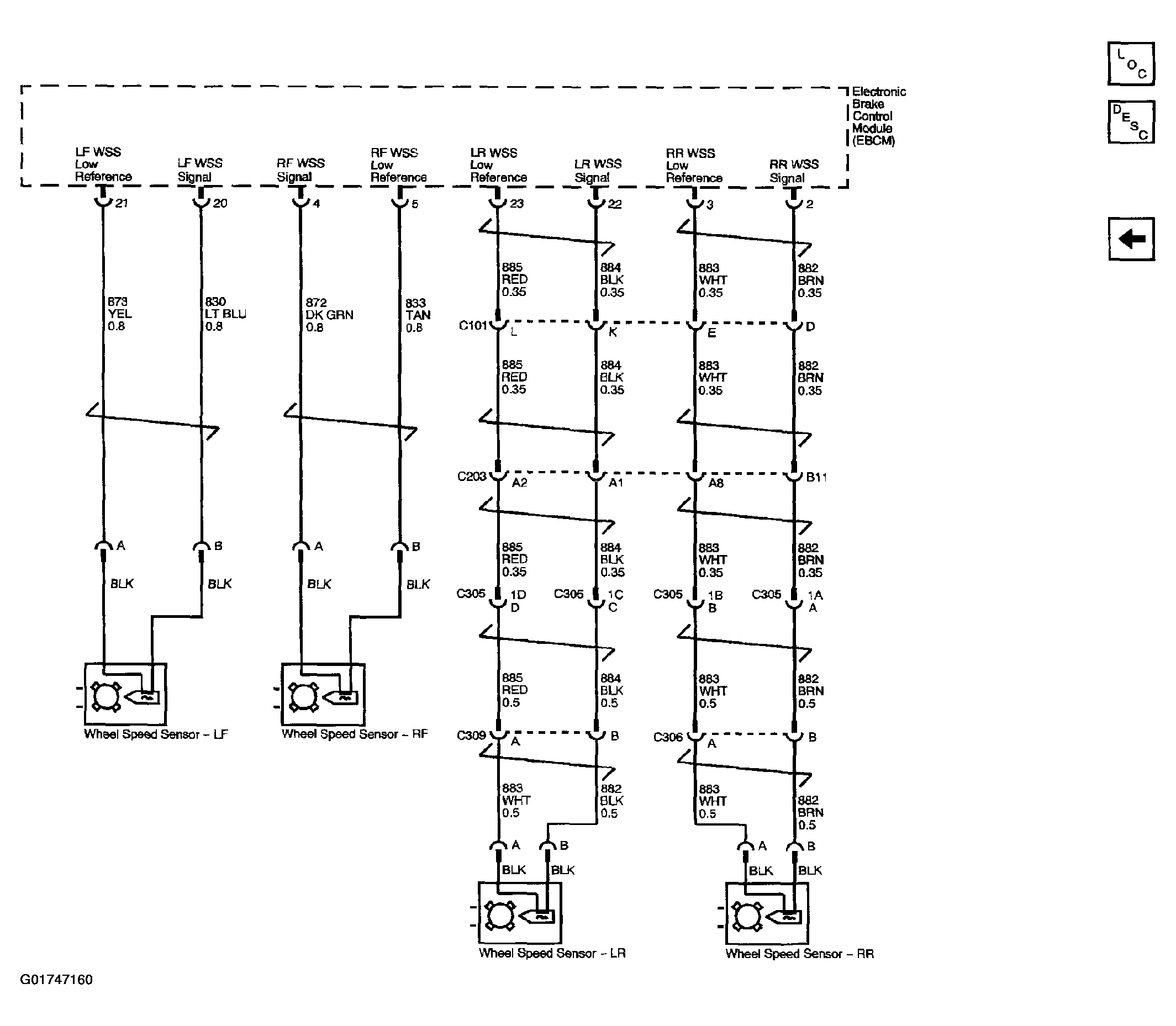

Fig 3: ABS Schematics (Wheel Speed Sensors)
G01747160Courtesy of GENERAL MOTORS CORP.
