Removal Procedure

CAUTION: Refer to GLASS & SHEET METAL HANDLING CAUTION .

Important:  The window reveal molding fills the cavity between the body and window. If the reveal molding is stretched or damaged, it cannot be reused and it must be replaced.

  1. Lift up on the loose area of the reveal molding.
  2. Clean the top edge of the window surface and the reveal molding with a 50/50 mixture of isopropyl alcohol and water by volume on a dampened lint-free cloth.
  3. If the reveal molding cannot be reused, refer to Urethane Adhesive Installation of Stationary Windows .

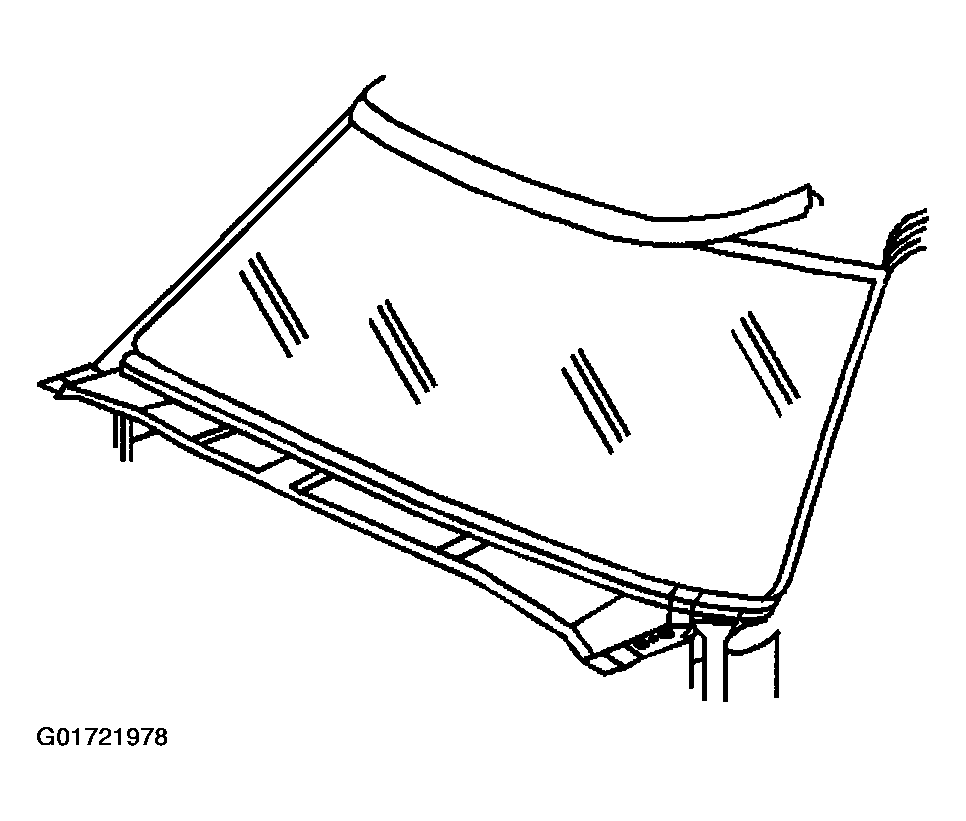

    Fig 1: Lifting Reveal Molding
    G01721978Courtesy of GENERAL MOTORS CORP.
