Removal Procedure

  1. Use a small flat-bladed tool at the front of the power window switch in order to remove the switch plate from the front door trim panel

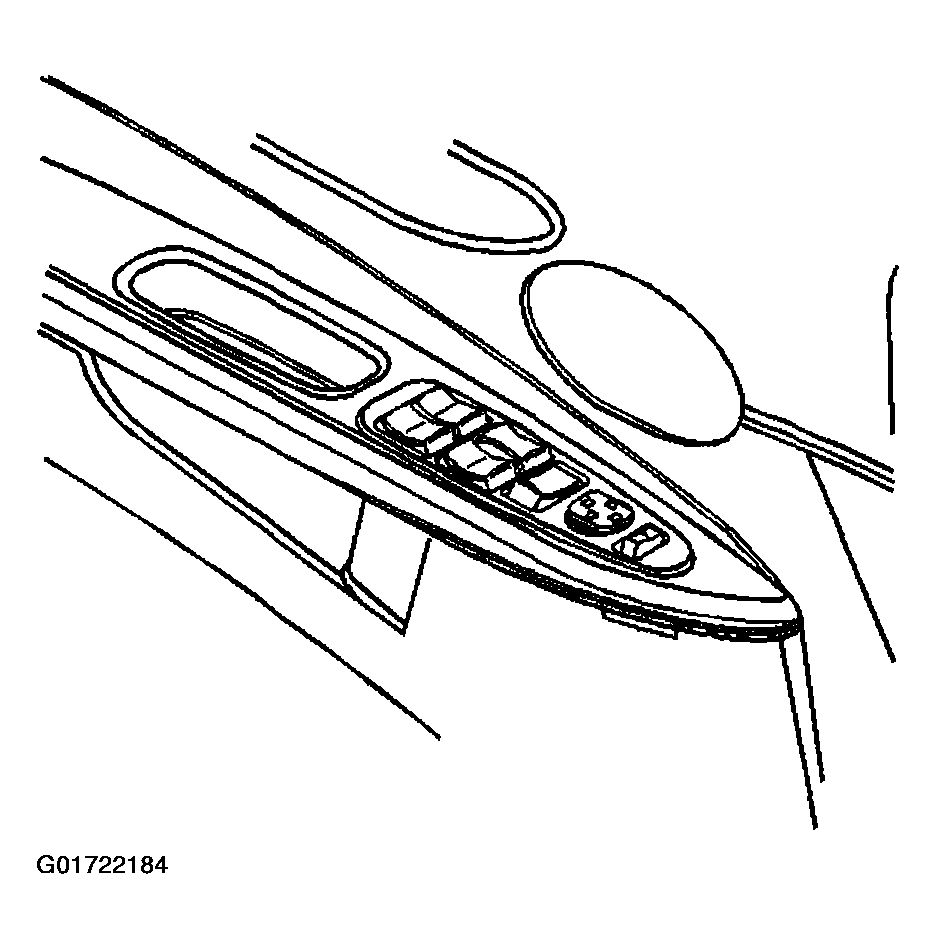

    Fig 1: View Of Power Window Switch
    G01722184Courtesy of GENERAL MOTORS CORP.
  2. Disconnect the electrical connector from the power window switch.
  3. Remove the power window switch from the front door trim panel.

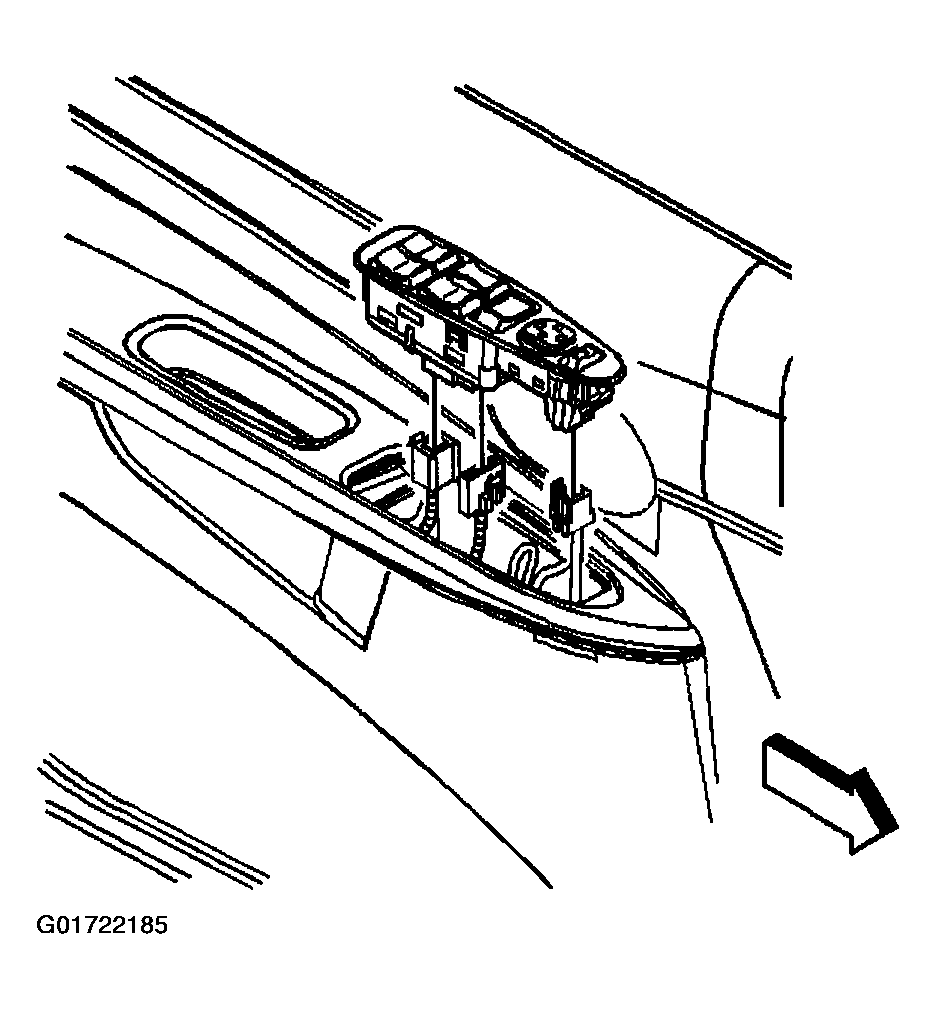

    Fig 2: Removing Power Window Switch From Front Door Trim Panel
    G01722185Courtesy of GENERAL MOTORS CORP.
  4. Use a small flat-bladed tool in order to remove the power window switch from the switch plate

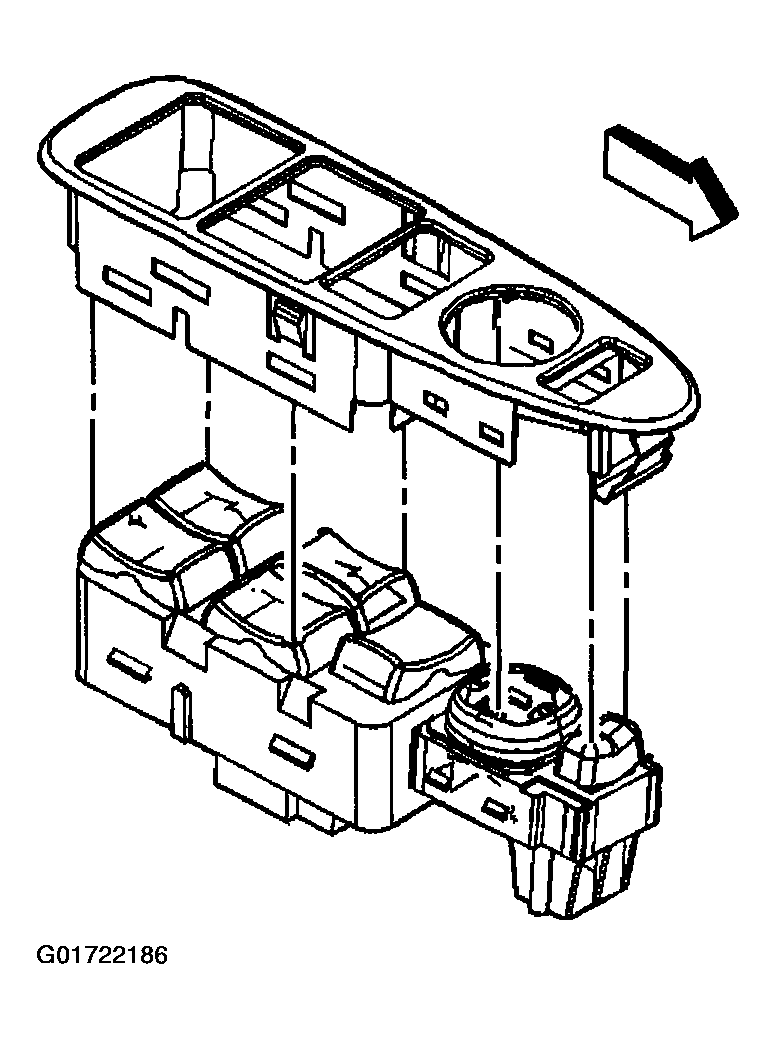

    Fig 3: Removing Power Window Switch From Switch Plate
    G01722186Courtesy of GENERAL MOTORS CORP.
