Removal Procedure

  1. Remove the front door lock. Refer to Lock Replacement - Front Door .
  2. Remove the front door lock to front door lock actuator screws.
  3. Remove the front door actuator from the front door lock.

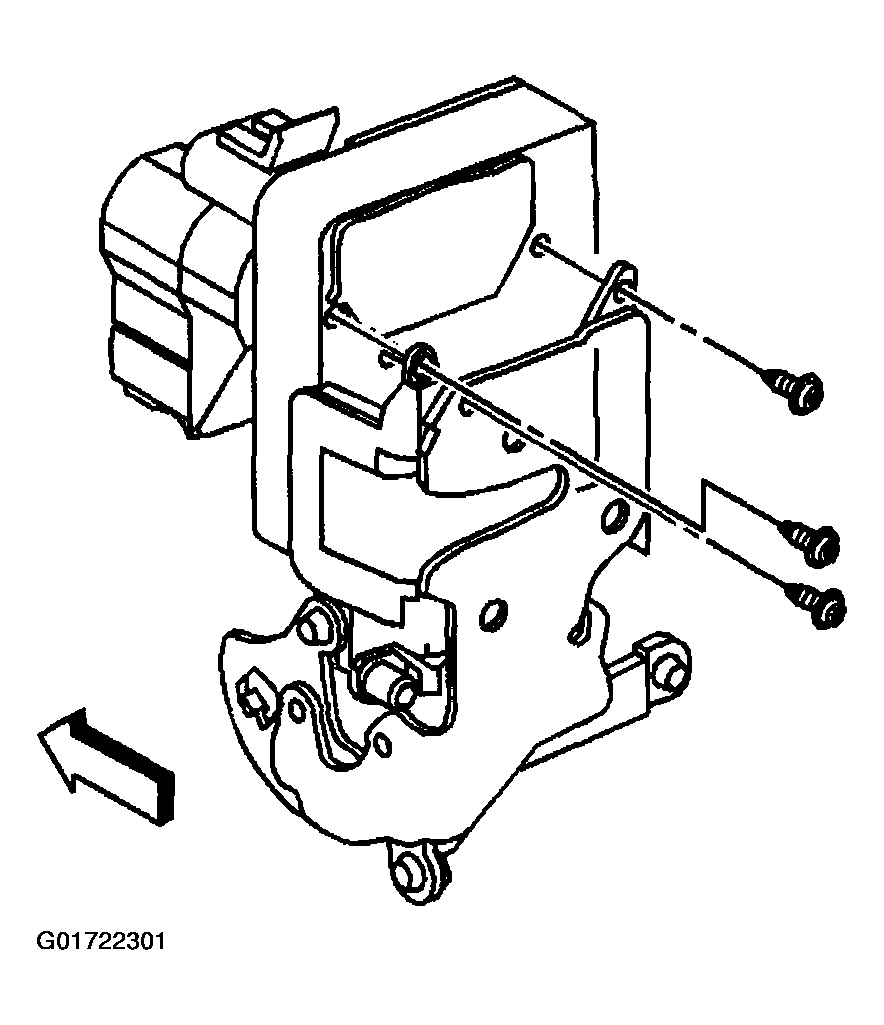

    Fig 1: Removing Front Door Lock Actuator Screws
    G01722301Courtesy of GENERAL MOTORS CORP.
