Installation Procedure

  1. Install the front seat track covers to the front seat.
    NOTE: Refer to FASTENER NOTICE .
  2. Install the screws to the front seat track covers.

    Tighten

    Tighten the front seat track cover screws to 40 N.m (30 lb ft).

  3. Install the front bucket seat. Refer to Seat Replacement - Bucket .

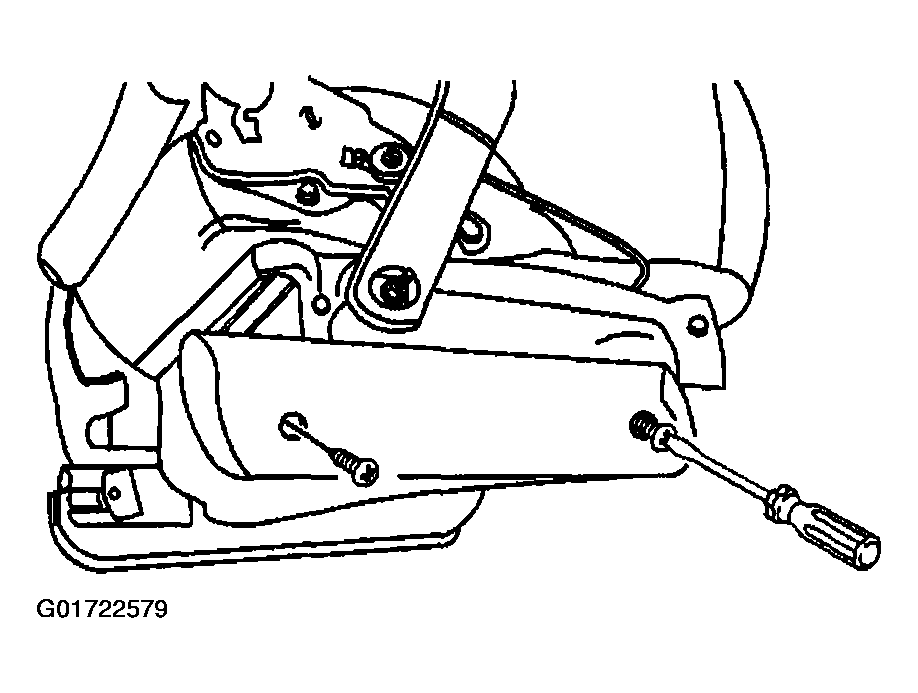

    Fig 1: Installing Front Seat Track Cover Screws
    G01722579Courtesy of GENERAL MOTORS CORP.
