Installation Procedure

  1. Install the lumbar support to the mounting holes in the front seat back.
  2. Install the lumbar support to the front seat back, pressing into place until fully seated.

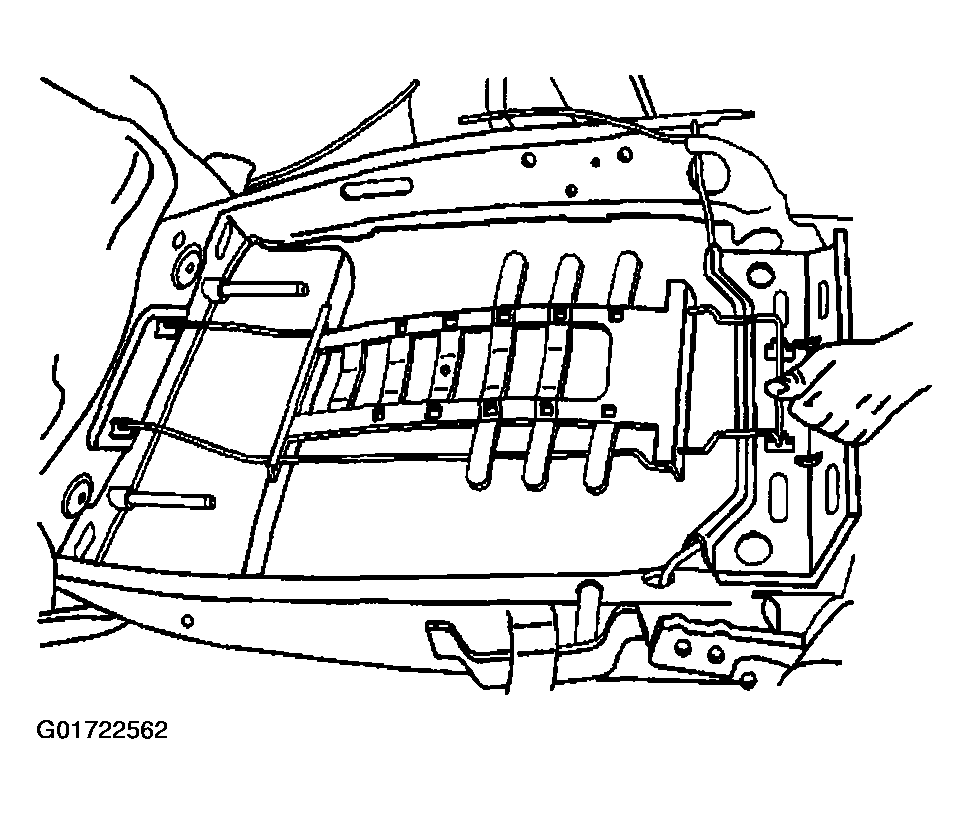

    Fig 1: Installing Lumbar Support
    G01722562Courtesy of GENERAL MOTORS CORP.
  3. Install the lumbar support cable to the lumbar support control.

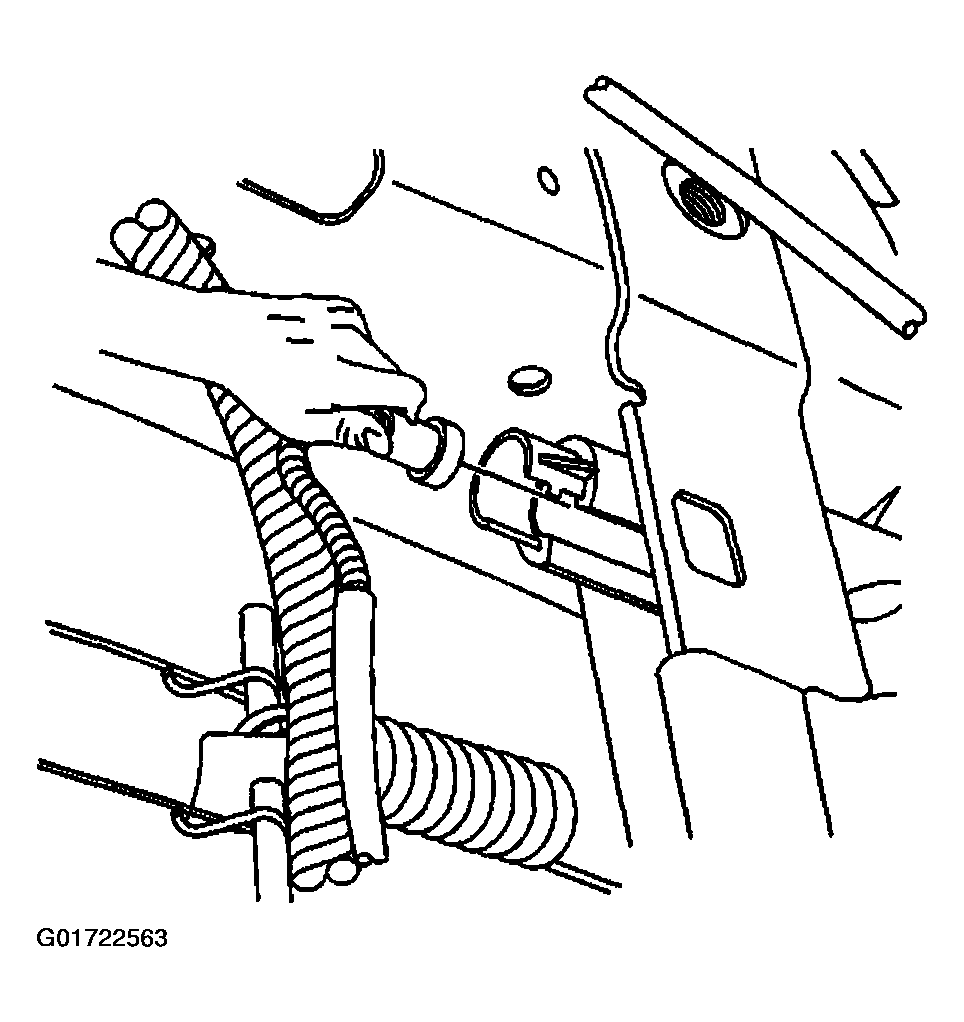

    Fig 2: Installing Lumbar Support Cable
    G01722563Courtesy of GENERAL MOTORS CORP.
  4. Install the lumbar support cable to the lumbar support control.
  5. Install the front seat back pad. Refer to Seat Back Pad Replacement - Front .
  6. Install the front seat back cover. Refer to Seat Back Cover Replacement - Front .
  7. Install the front seat. Refer to Seat Replacement - Bucket .

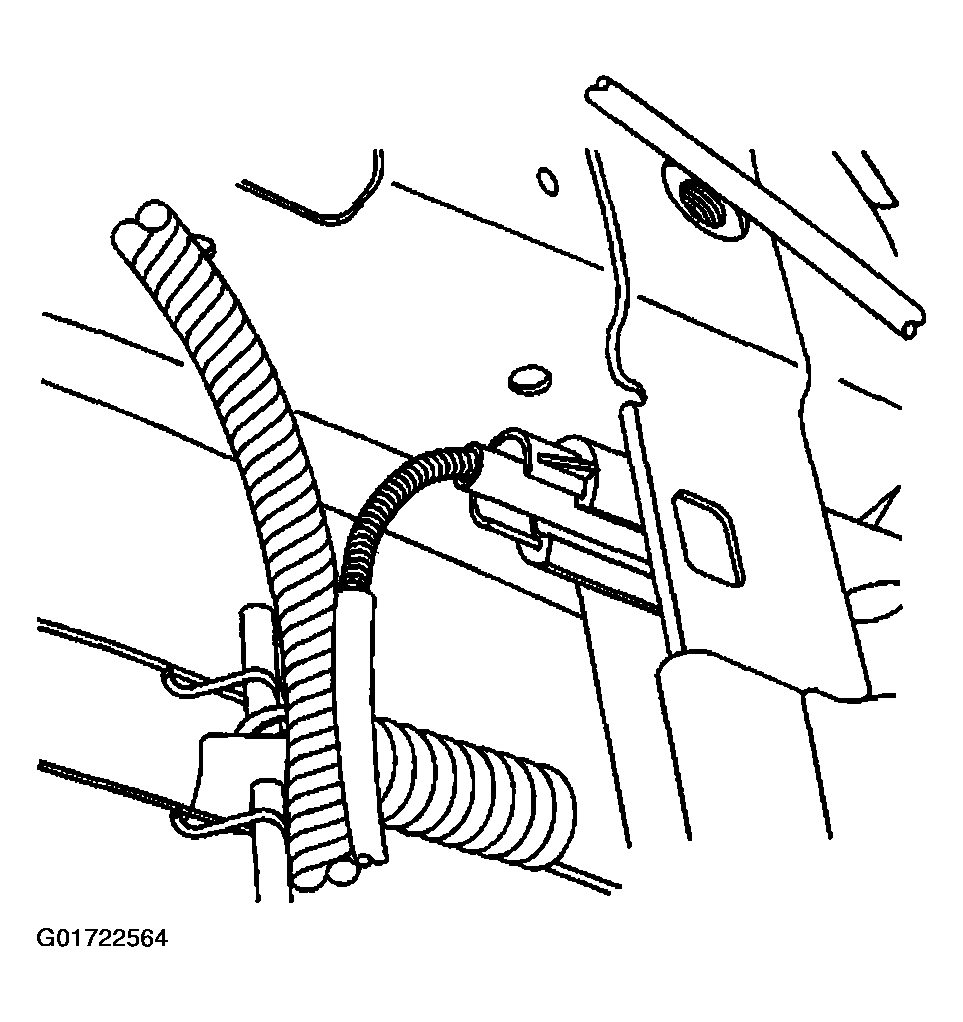

    Fig 3: View Of Lumbar Support Control
    G01722564Courtesy of GENERAL MOTORS CORP.
