Installation Procedure

  1. Install the guide to the seat back frame, pressing in until fully seated into the front seat frame.
  2. Install the front seat cover to the front seat back.
  3. Install the J-hook retainer at the bottom edge of the front seat back cover.
  4. Install the headrest to the front seat. Refer to Head Restraint Replacement - Front Seat .
  5. Place the front seat back to the original position.

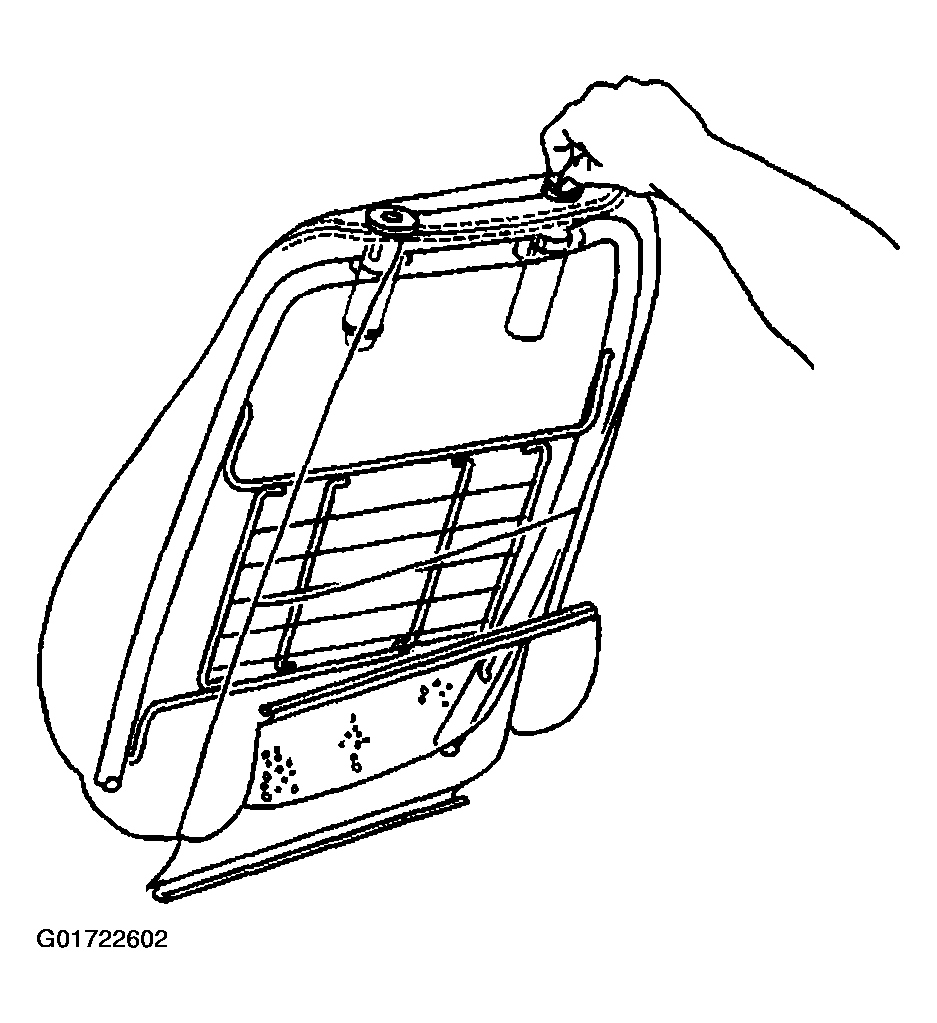

    Fig 1: Installing Front Seat Back Frame Headrest Retainer
    G01722602Courtesy of GENERAL MOTORS CORP.
