Removal Procedure

  1. Remove the armrest bolt trim cap using a small flat-bladed tool.

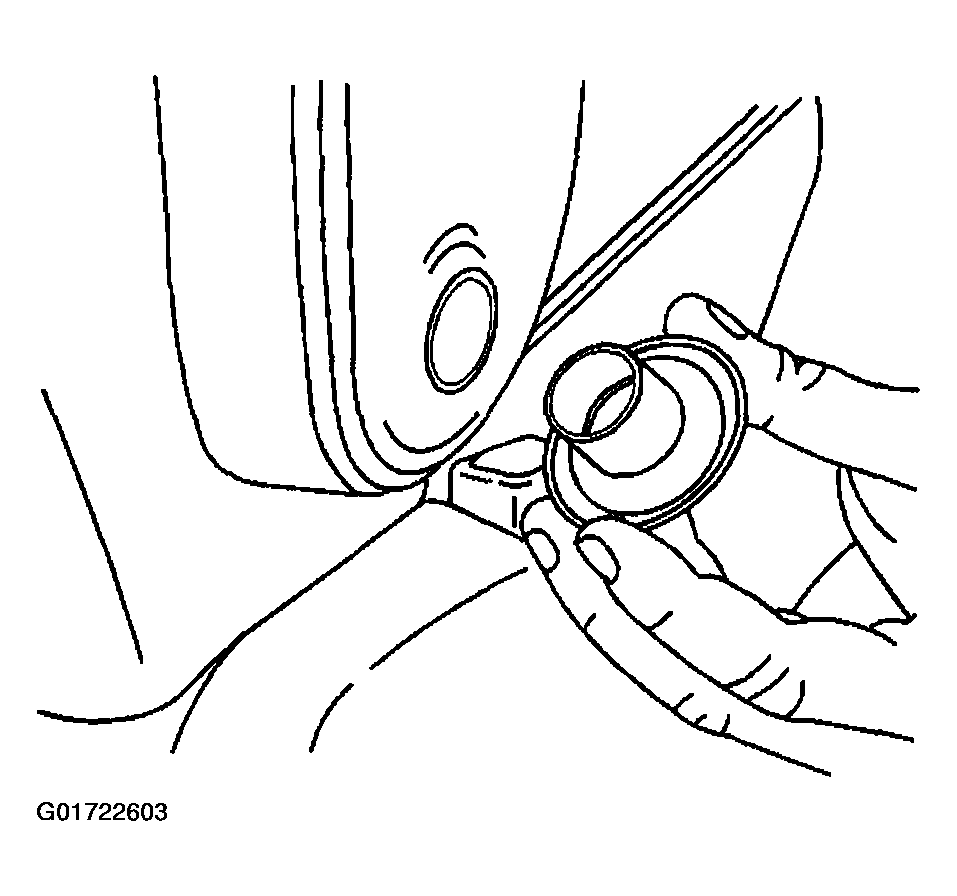

    Fig 1: Removing Armrest Bolt Trim Cap
    G01722603Courtesy of GENERAL MOTORS CORP.
  2. Remove the bolt from the armrest.
  3. Remove the armrest from the front bucket seat.
    Fig 2: Removing Armrest Bolt
    G01722604Courtesy of GENERAL MOTORS CORP.
