Removal & Installation

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2002 GMC Yukon XL, 2002 GMC Yukon, 2002 Chevrolet Tahoe, 2002 Chevrolet Suburban, and 2002 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.
  1. Before proceeding, see AIR BAG SAFETY PRECAUTIONS . Disable air bag system. See DISABLING & ACTIVATING AIR BAG SYSTEM .
  2. Remove engine protection plate, if equipped. Remove Connector Position Assurance (CPA) clip from front end discriminating sensor connector and disconnect connector. See Fig 1. Remove front end discriminating sensor mounting bolt. Remove front end discriminating sensor.
  3. To install, reverse removal procedure. Ensure arrow on front end discriminating sensor is pointing towards front of vehicle. Tighten front end discriminating sensor mounting bolt to specification. See TORQUE SPECIFICATIONS . Activate air bag system.

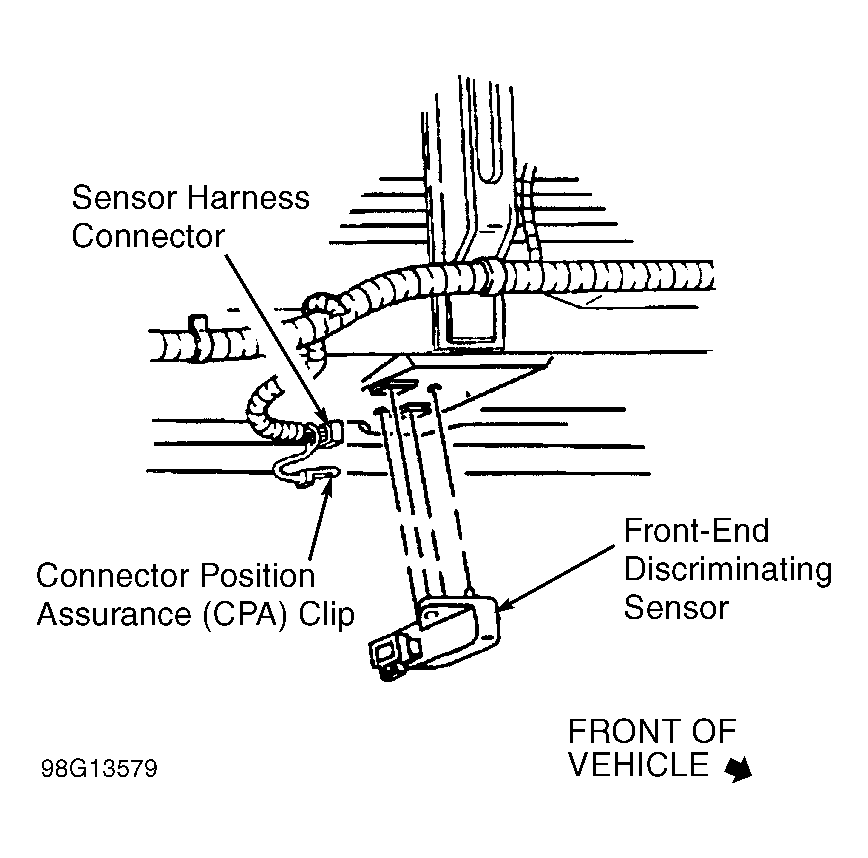

    Fig 1: Identifying Front End Discriminating Sensor
    G98G13579Courtesy of GENERAL MOTORS CORP.
