Installation (All Models)

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2002 GMC Yukon XL, 2002 GMC Yukon, 2002 Chevrolet Tahoe, 2002 Chevrolet Suburban, and 2002 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.

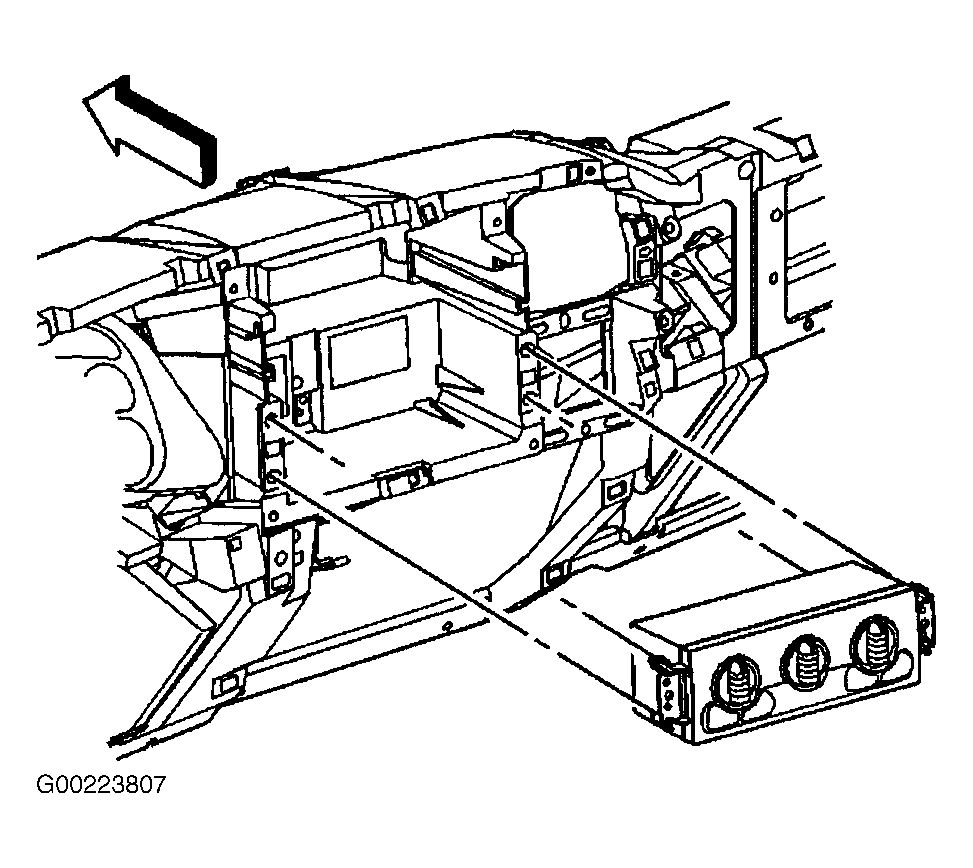

  1. Connect the electrical connectors to the HVAC control assembly. Install the HVAC control assembly. See Figure. Install the accessory switch assembly to the instrument panel.
  2. Install the screws from the HVAC control assembly. Tighten to specification. See TORQUE SPECIFICATIONS . Install the instrument panel storage tray. Install the instrument cluster trim plate bezel.
