Removal Procedure

WARNING: This page is about a different car, the 2002 Pontiac Aztek and 2002 Buick Rendezvous. However, it is still accessible from the selected car via links, so may be relevant.
  1. Open the hood.
  2. Remove the screws from the front parking/sidemarker lamp.

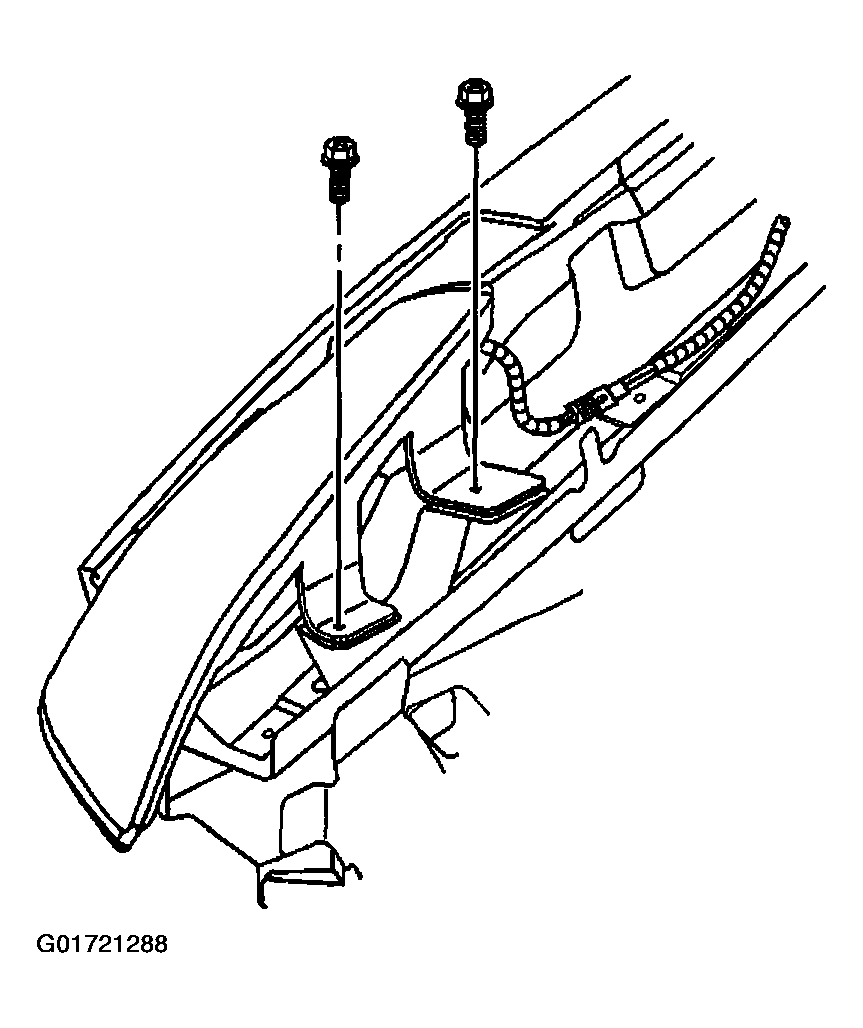

    Fig 1: Removing Front Parking/Sidemarker Lamp Screws
    G01721288Courtesy of GENERAL MOTORS CORP.
  3. Disconnect the front parking/sidemarker lamp wiring harness from the pinch- weld flange.

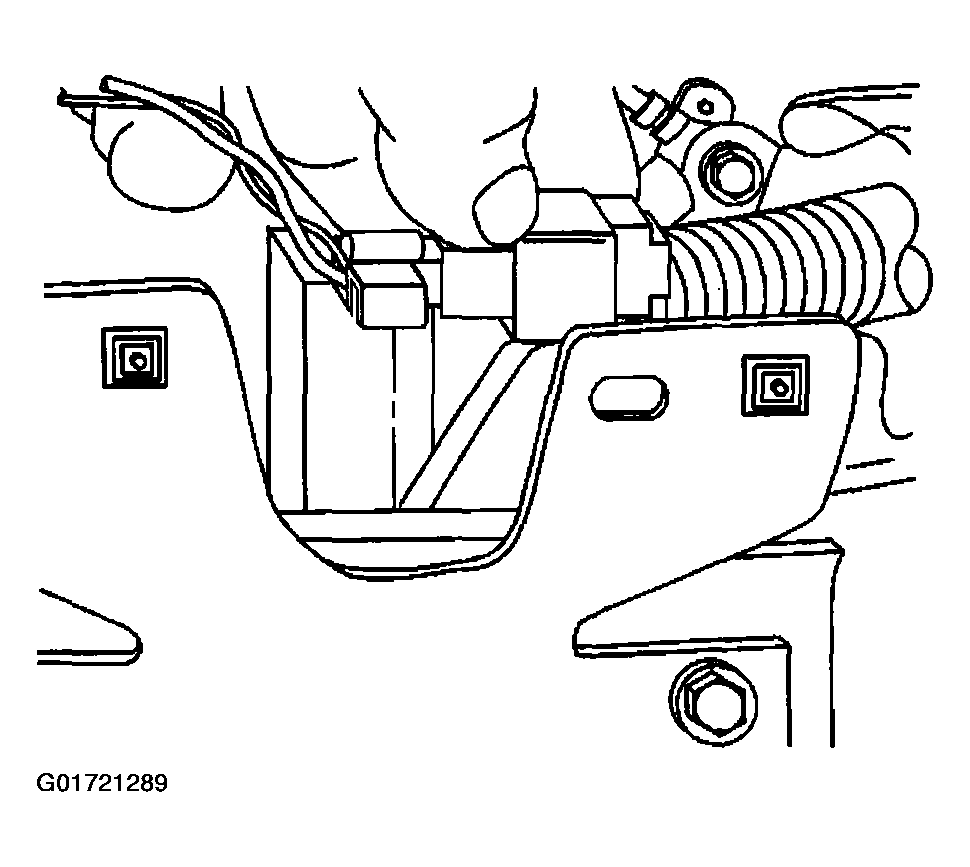

    Fig 2: Disconnecting Front Parking/Sidemarker Lamp Wiring Harness
    G01721289Courtesy of GENERAL MOTORS CORP.
  4. Remove the front parking/sidemarker lamp from the front fender.

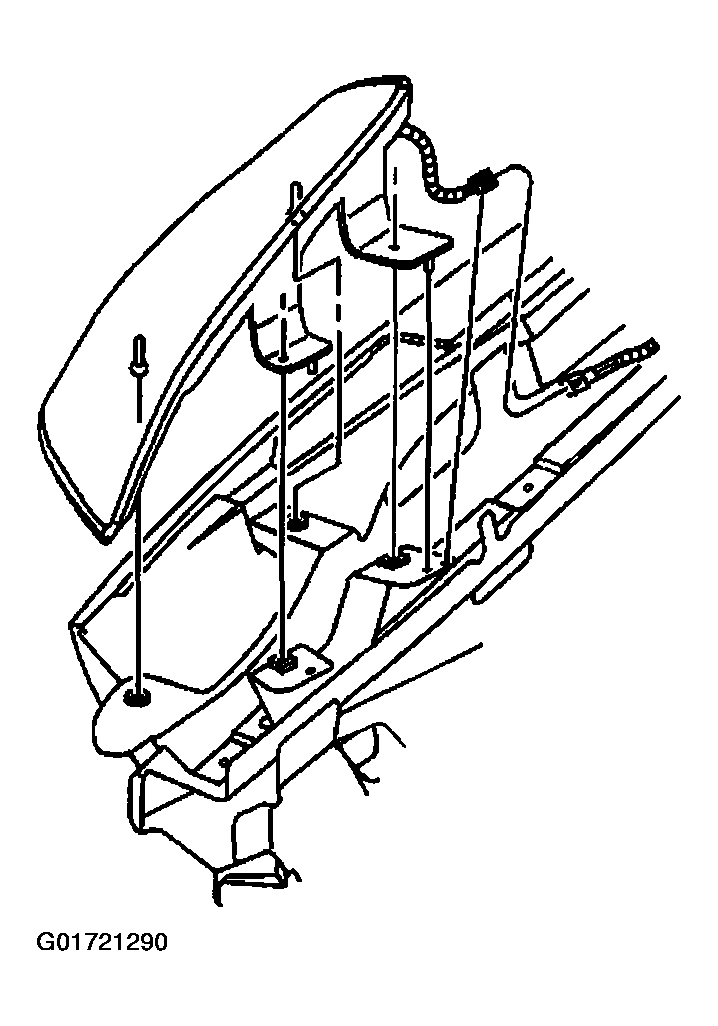

    Fig 3: Removing Front Parking/Sidemarker Lamp
    G01721290Courtesy of GENERAL MOTORS CORP.
  5. Remove the front parking/sidemarker lamp socket, depressing the locking tab and turning counterclockwise.

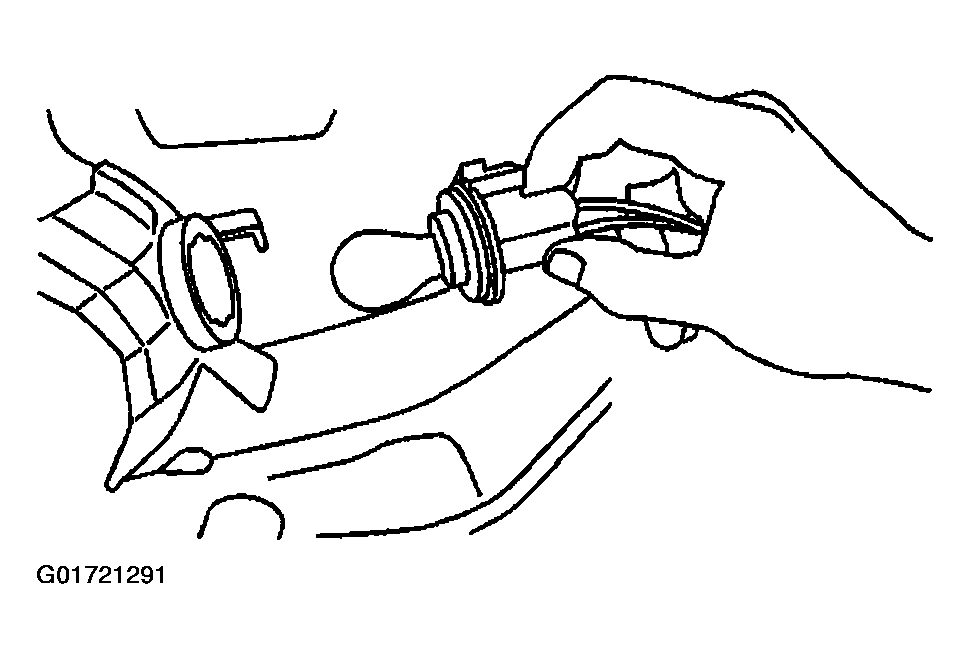

    Fig 4: Removing Front Parking/Sidemarker Lamp Socket (Aztek)
    G01721291Courtesy of GENERAL MOTORS CORP.
  6. Remove the bulb from the front parking/sidemarker lamp socket, if replacing the bulb.

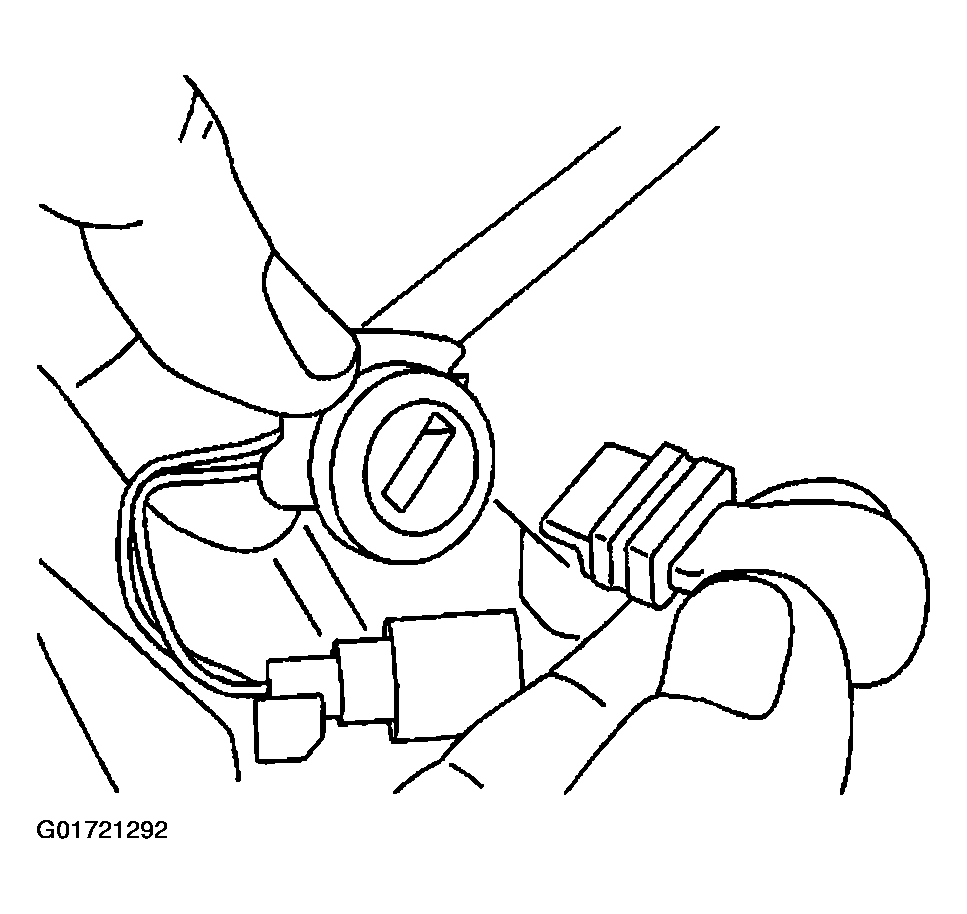

    Fig 5: Removing Front Parking/Sidemarker Lamp Bulb (Aztek)
    G01721292Courtesy of GENERAL MOTORS CORP.
