Installation Procedure

WARNING: This page is about a different car, the 2003 GMC Sonoma, 2003 GMC Jimmy, 2003 Chevrolet S10 Pickup, and 2003 Chevrolet Blazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. With an assistant, install the liftgate window to the liftgate.
  2. Install the liftgate window hinge pins.
  3. Install the new liftgate window hinge pin retainers.
  4. Install the liftgate window struts. Refer to STRUT REPLACEMENT - LIFT GATE WINDOW .
  5. Connect the liftgate window defogger electrical connectors, if equipped.
  6. Install the high mount stoplamp spoiler assembly to the liftgate window. Refer to HIGH MOUNTED STOP LAMP REPLACEMENT (UTILITY - ENDGATE WINDOW) or HIGH MOUNTED STOP LAMP REPLACEMENT (UTILITY - ROOF MOUNTED) or HIGH MOUNTED STOP LAMP REPLACEMENT (PICKUP) in Lighting Systems.

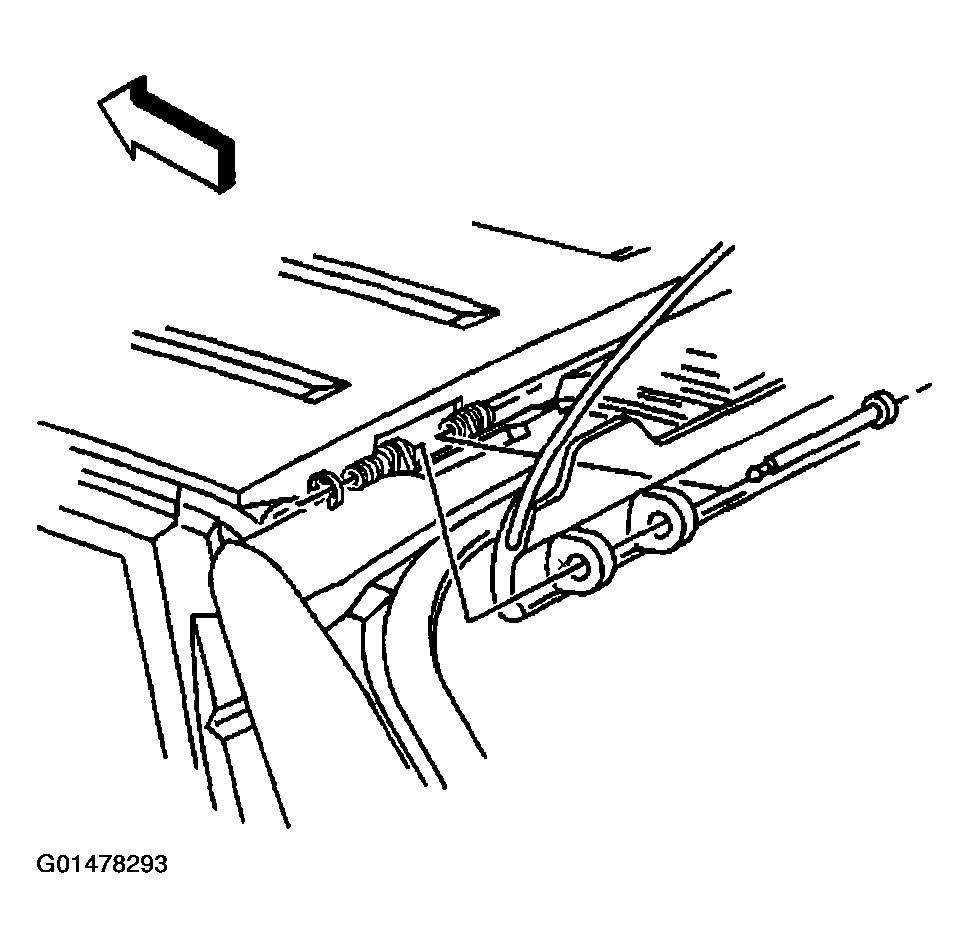

    Fig 1: Liftgate Window Hinge Pins
    G01478293Courtesy of GENERAL MOTORS CORP.
