Installation Procedure

WARNING: This page is about a different car, the 2003 GMC Sonoma, 2003 GMC Jimmy, 2003 Chevrolet S10 Pickup, and 2003 Chevrolet Blazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the endgate torque rod.
  2. Install the endgate bracket.
  3. Install the insulator to the vehicle.

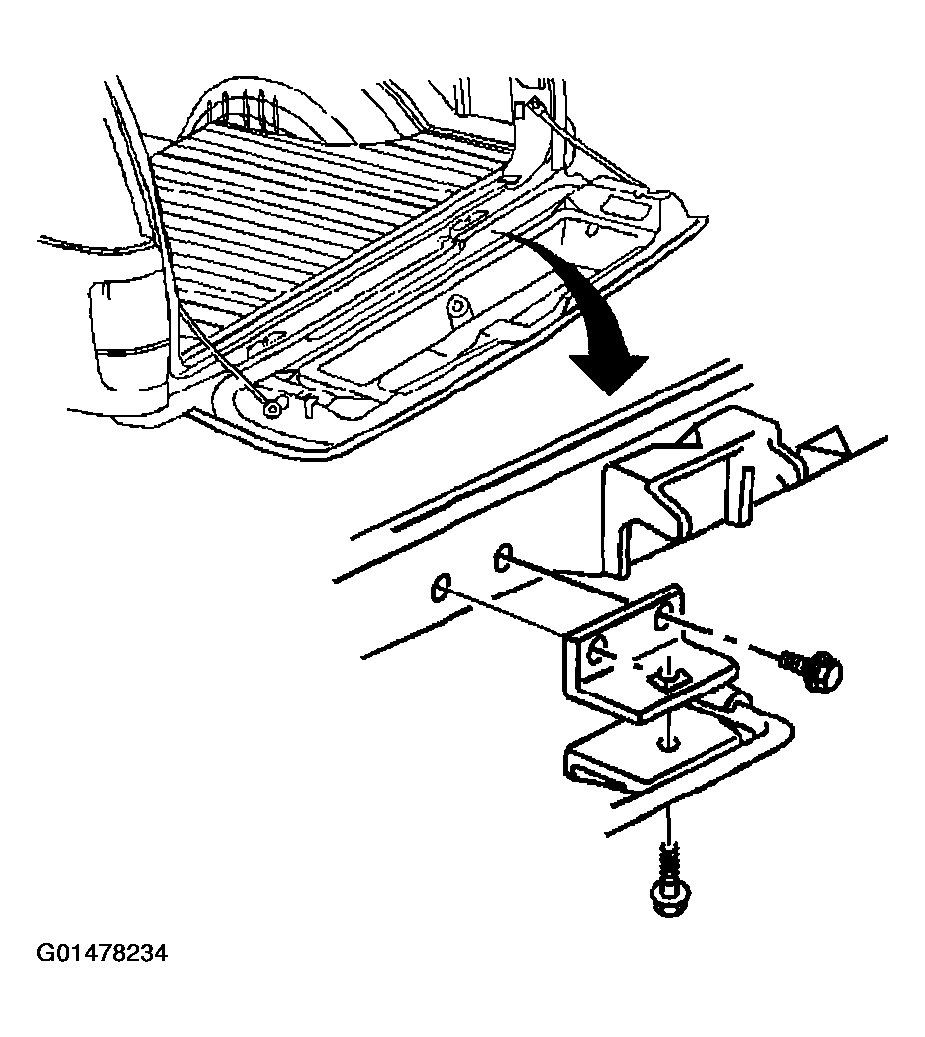

    Fig 1: Endgate Torque Rod
    G01478234Courtesy of GENERAL MOTORS CORP.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  4. Install the bolts that retain the endgate torque rod bracket to the vehicle body.

    Tighten

    Tighten the bolts to 10 N.m (88 lb in).

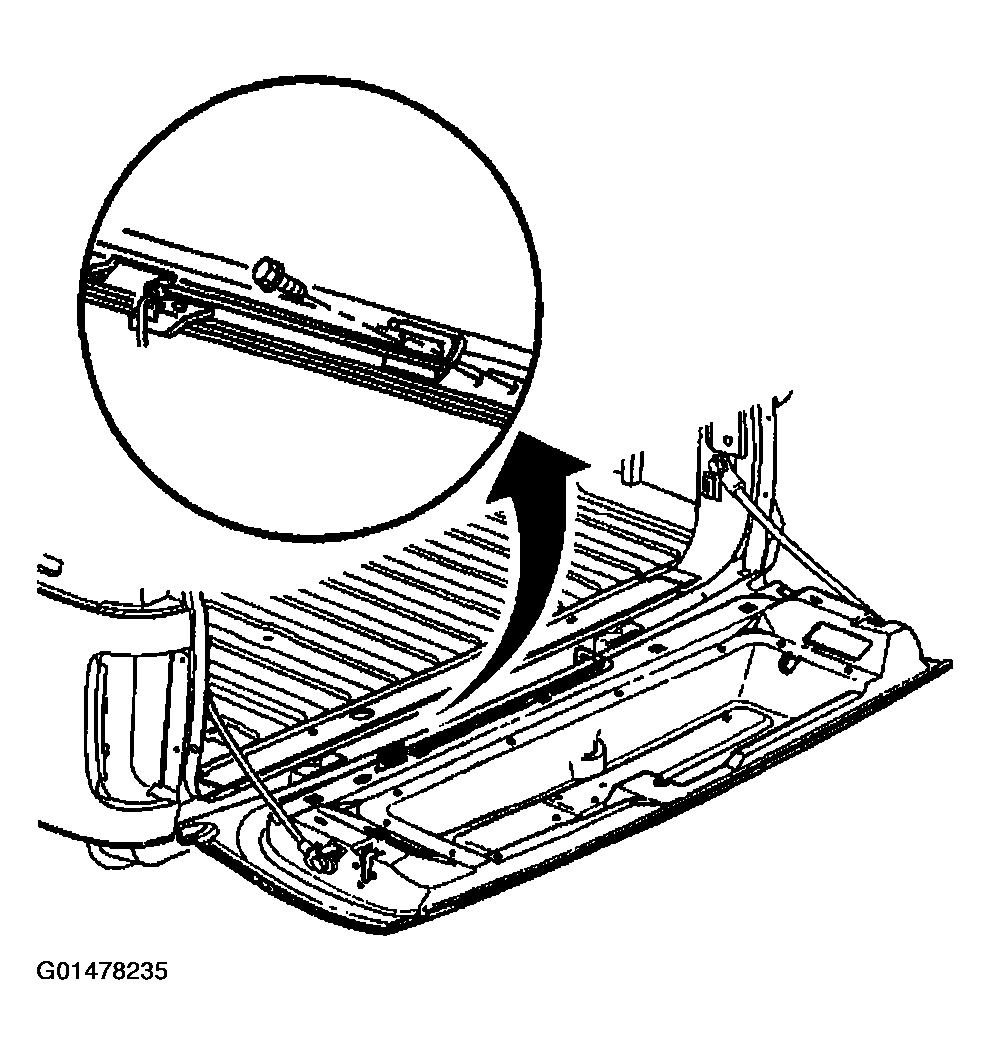

    Fig 2: Installing Bolts That Retain Endgate Torque Rod Bracket
    G01478235Courtesy of GENERAL MOTORS CORP.
