Installation Procedure

WARNING: This page is about a different car, the 2003 GMC Sonoma, 2003 GMC Jimmy, 2003 Chevrolet S10 Pickup, and 2003 Chevrolet Blazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the endgate window latch support.
  2. Align the marks made during disassembly.
  3. Connect the electrical connectors as needed.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  4. Install the bolts that retain the endgate window latch support to the liftgate.

    Tighten

    Tighten the bolts to 9 N.m (80 lb in).

  5. Connect the electrical connectors as needed.
  6. Install the endgate window latch. Refer to LATCH REPLACEMENT - END GATE WINDOW .

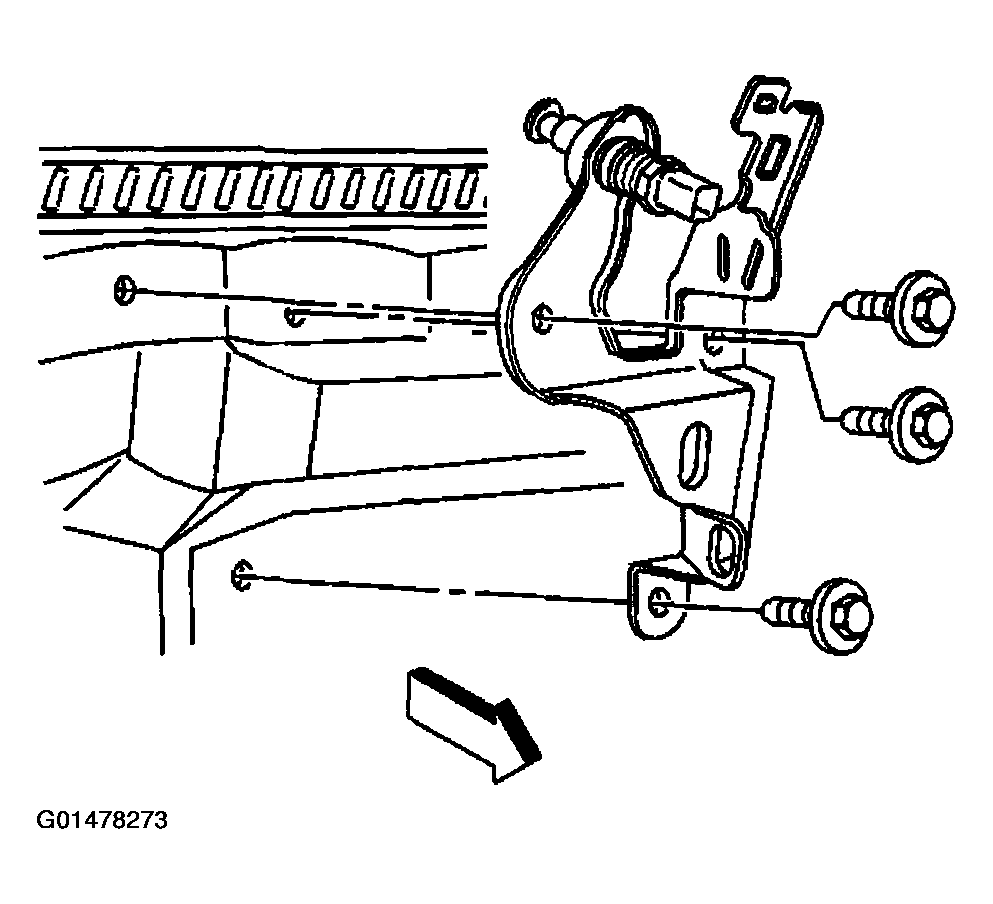

    Fig 1: Endgate Window Latch Support
    G01478273Courtesy of GENERAL MOTORS CORP.
