Installation Procedure

WARNING: This page is about a different car, the 2003 GMC Sonoma, 2003 GMC Jimmy, 2003 Chevrolet S10 Pickup, and 2003 Chevrolet Blazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the console to the roof.
  2. Connect the electrical connectors.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  3. Install the console roof screw.

    Tighten

    Tighten the overhead console screw to 2 N.m (18 Ib in).

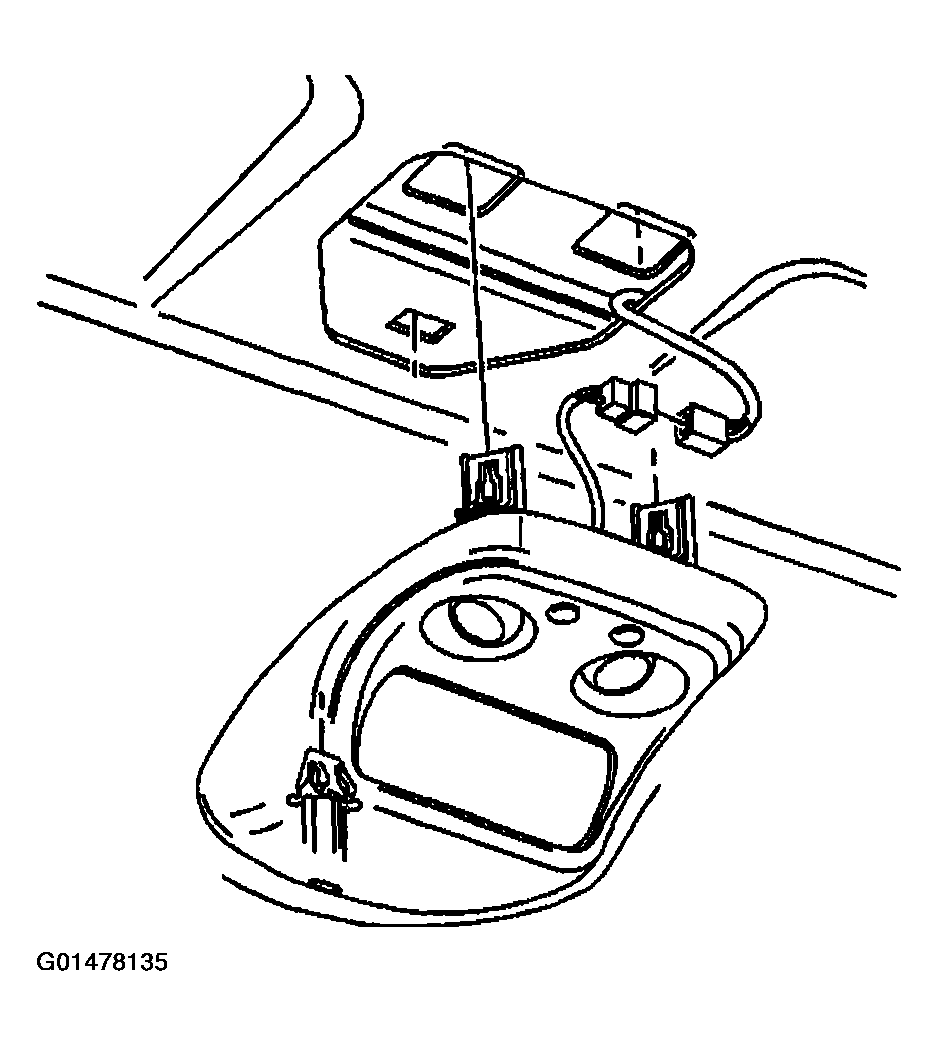

    Fig 1: Overhead (Short) Console
    G01478135Courtesy of GENERAL MOTORS CORP.
