Installation Procedure

WARNING: This page is about a different car, the 2003 GMC Sonoma, 2003 GMC Jimmy, 2003 Chevrolet S10 Pickup, and 2003 Chevrolet Blazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the jump seat to the vehicle.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  2. Install the jump seat retaining bolts and nuts.

    Tighten

    Tighten the jump seat retaining bolts and nuts to 25 N.m (19 lb ft).

  3. Install the body side trim panel. Refer to TRIM PANEL REPLACEMENT -- BODY SIDE (STANDARD CAB PICKUP) or TRIM PANEL REPLACEMENT -- BODY SIDE (EXTENDED CAB PICKUP) or TRIM PANEL REPLACEMENT -- BODY SIDE (2-DOOR UTILITY) or TRIM PANEL REPLACEMENT -- BODY SIDE (4-DOOR UTILITY) or TRIM PANEL REPLACEMENT -- BODY SIDE (CREW CAB)

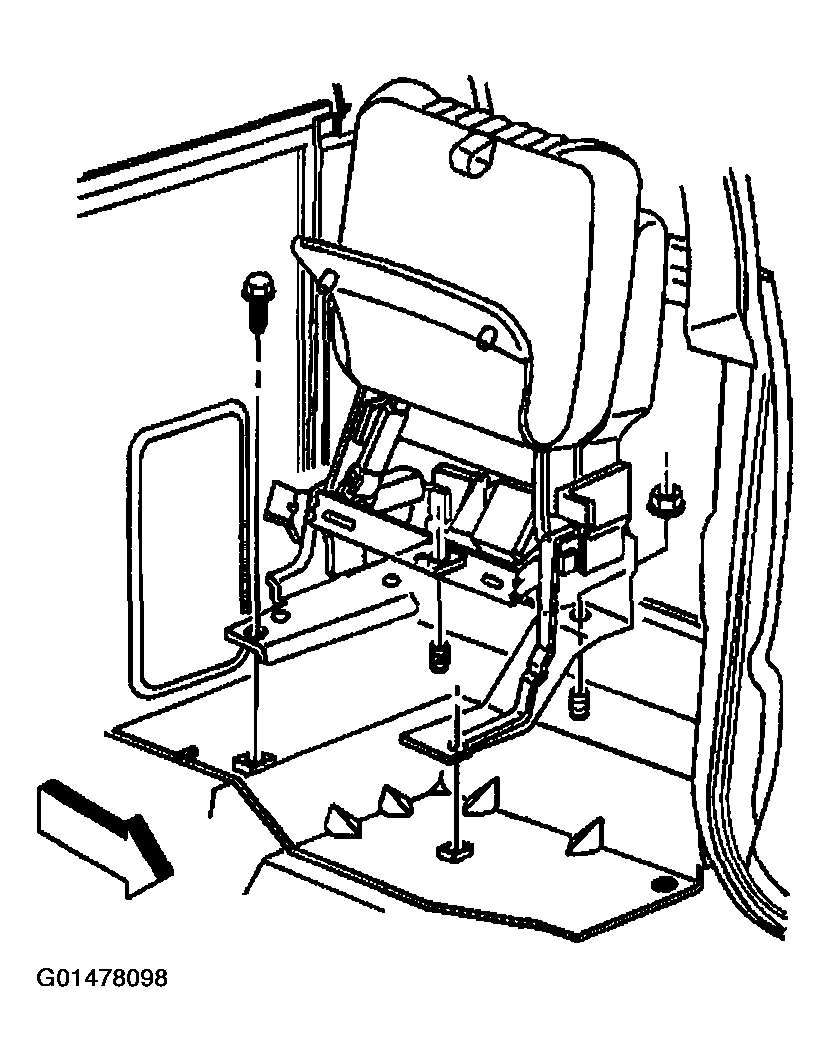

    Fig 1: Installing Jump Seat To Vehicle
    G01478098Courtesy of GENERAL MOTORS CORP.
