Installation Procedure

WARNING: This page is about a different car, the 2003 GMC Sonoma, 2003 GMC Jimmy, 2003 Chevrolet S10 Pickup, and 2003 Chevrolet Blazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the cladding to the pickup box.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  2. Install the nuts that retain the cladding to the pickup box.

    Tighten

    Tighten the nuts to 2 N.m (18 lb in).

  3. Install the push-pin.
  4. Lower the vehicle.

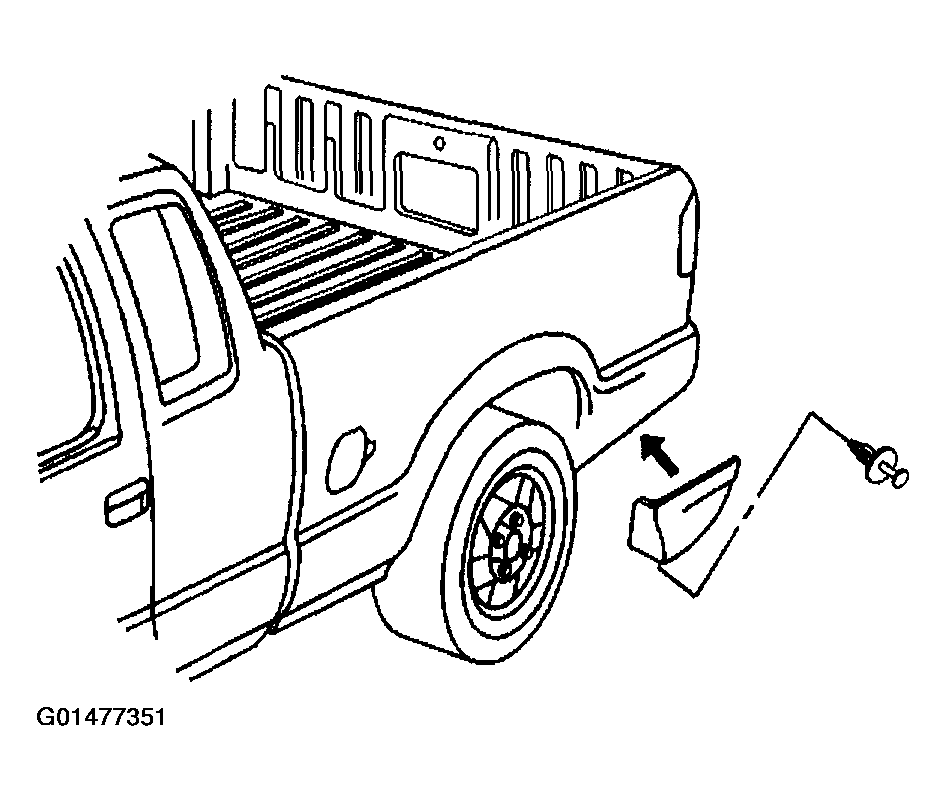

    Fig 1: Installing Cladding To Pickup Box Retaining Nut
    G01477351Courtesy of GENERAL MOTORS CORP.
