Test Description

WARNING: This page is about a different car, the 2003 GMC Sonoma, 2003 GMC Jimmy, 2003 Chevrolet S10 Pickup, and 2003 Chevrolet Blazer. However, it is still accessible from the selected car via links, so may be relevant.

The numbers below refer to the step numbers on the diagnostic table.

  1. 2. Lack of communication may be due to a partial or total malfunction of the class 2 serial data circuit. The specified procedure will determine the particular condition.
  2. 5. The presence of DTCs which begin with "U" indicate some other module is not communicating on the class 2 serial data circuit. The specified procedure will compile all the available information before tests are perform.

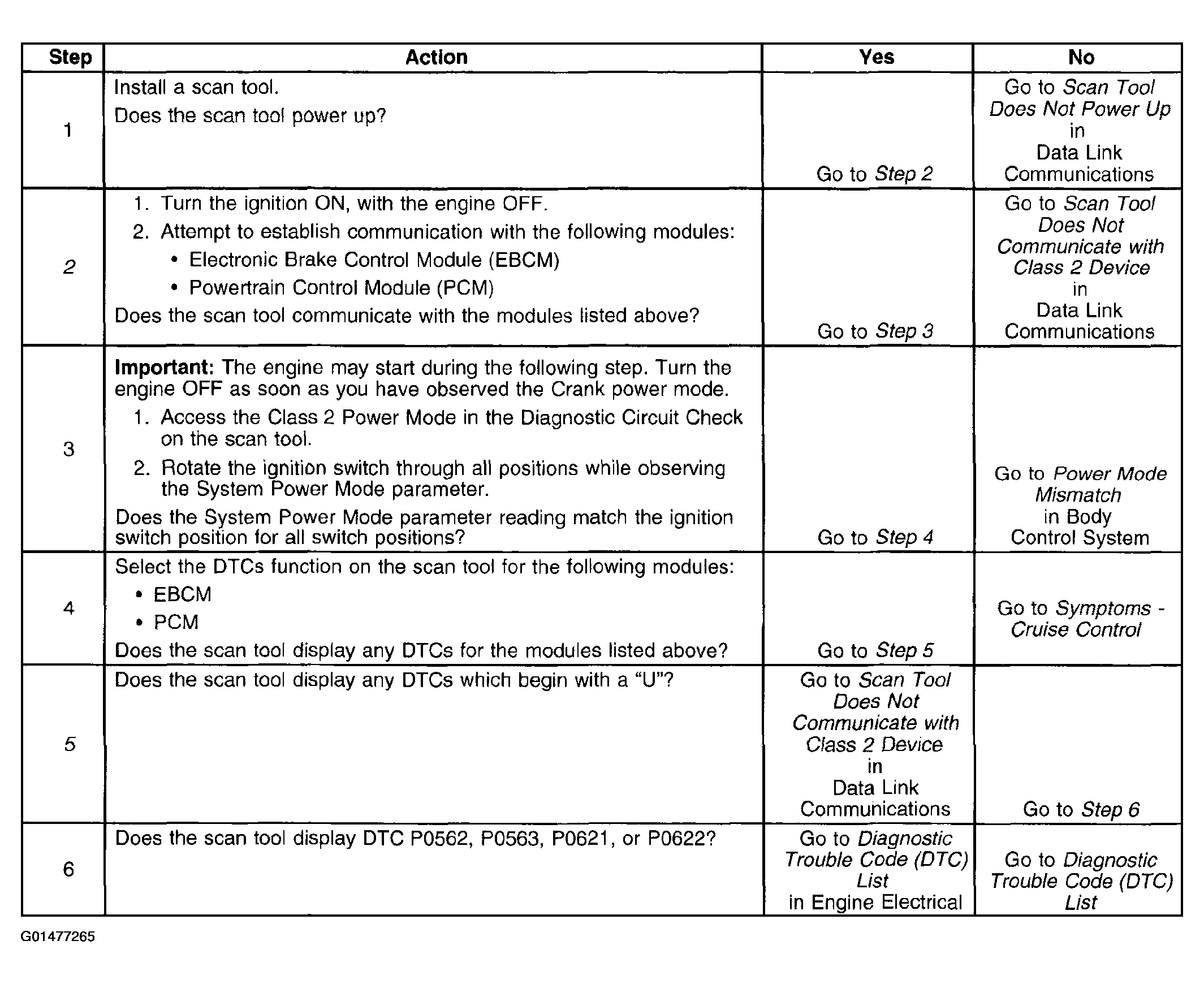

Fig 1: Diagnostic System Check - Cruise Control
G01477265Courtesy of GENERAL MOTORS CORP.
