Schematic and Routing Diagrams

WARNING: This page is about a different car, the 2003 GMC Sonoma, 2003 GMC Jimmy, 2003 Chevrolet S10 Pickup, and 2003 Chevrolet Blazer. However, it is still accessible from the selected car via links, so may be relevant.

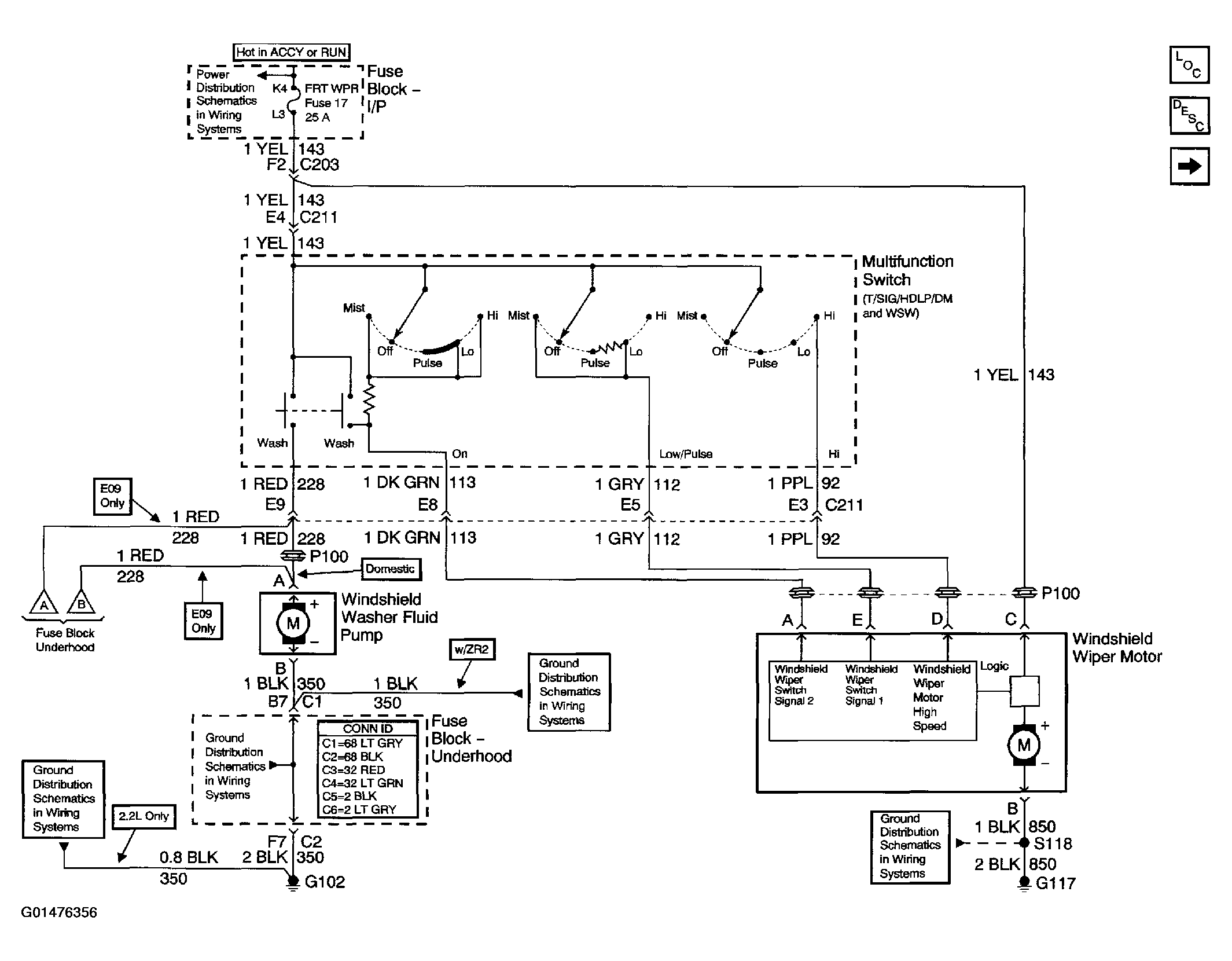

Fig 1: Wiper/Washer Systems Schematics (Pulse Wipers)

Courtesy of GENERAL MOTORS CORP.

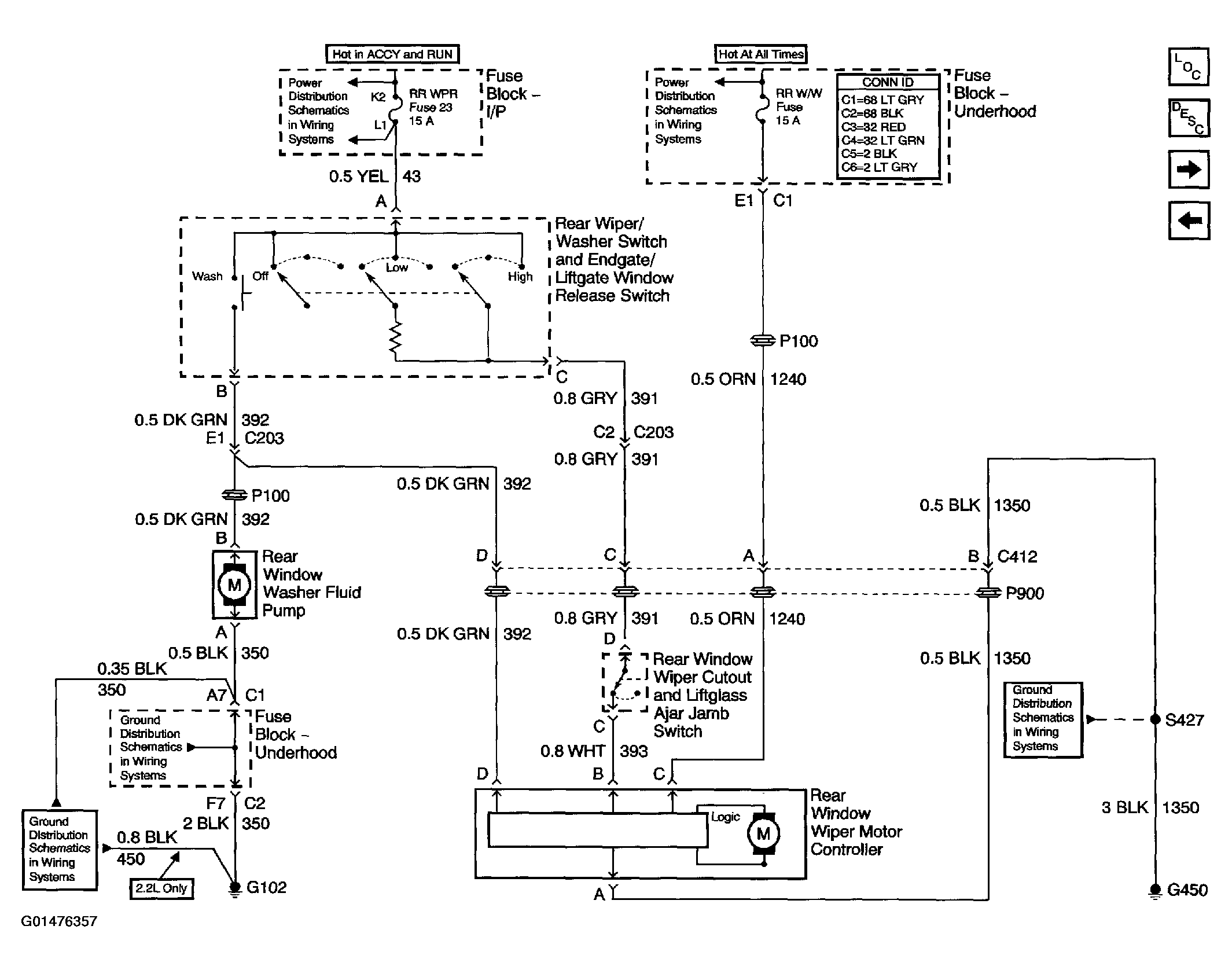

Fig 2: Wiper/Washer Systems Schematics (Rear Wipers)

Courtesy of GENERAL MOTORS CORP.

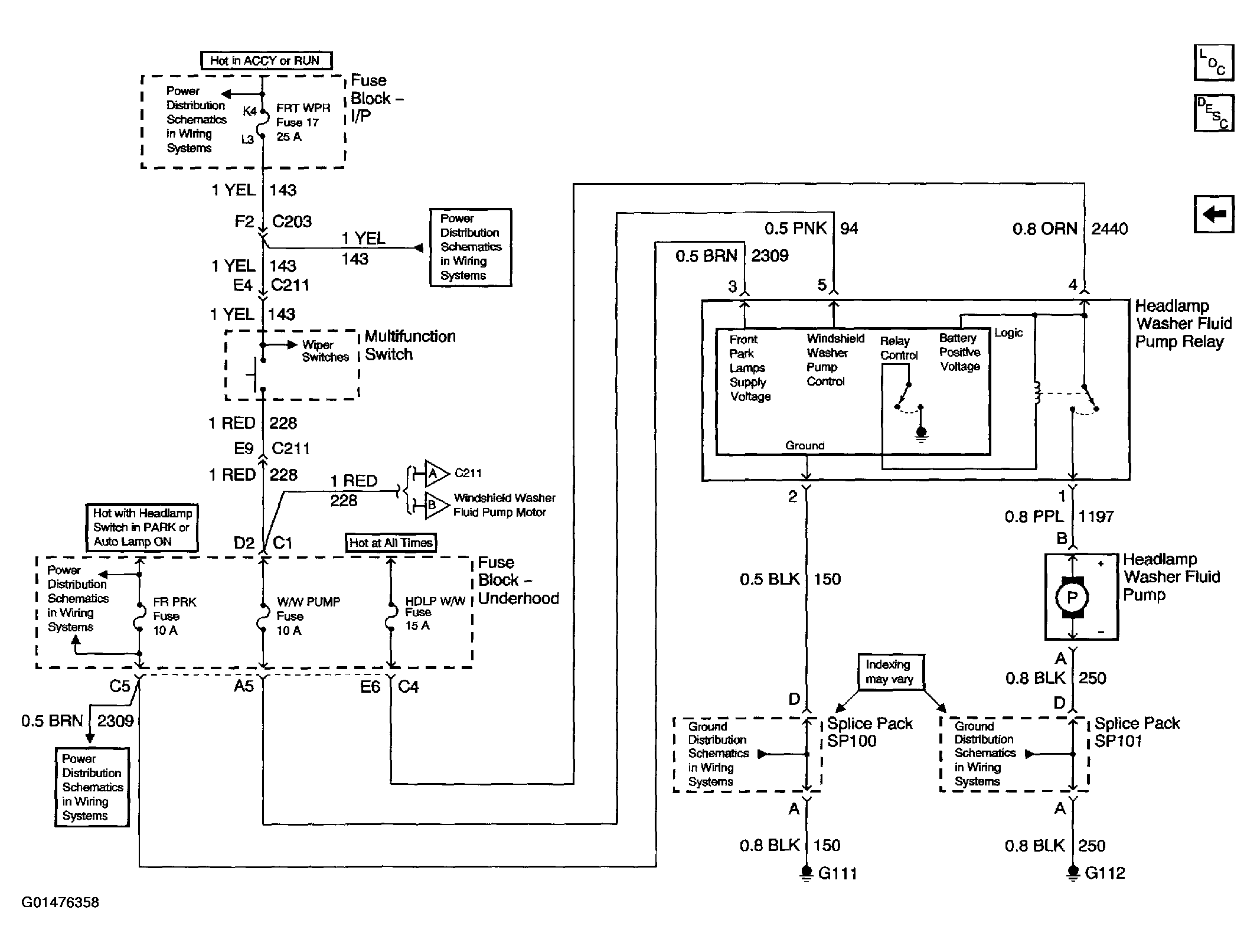

Fig 3: Wiper/Washer Systems Schematics (Headlamp Washer System - Export Only)

Courtesy of GENERAL MOTORS CORP.
