Removal Procedure

WARNING: This page is about a different car, the 2003 GMC Sonoma, 2003 GMC Jimmy, 2003 Chevrolet S10 Pickup, and 2003 Chevrolet Blazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the wiper arms. Refer to WIPER ARM REPLACEMENT .
  2. Remove the air inlet grille panel. Refer to AIR INLET GRILLE PANEL REPLACEMENT .
  3. Remove the transmission drive link from the wiper motor crank arm using the J 39232.

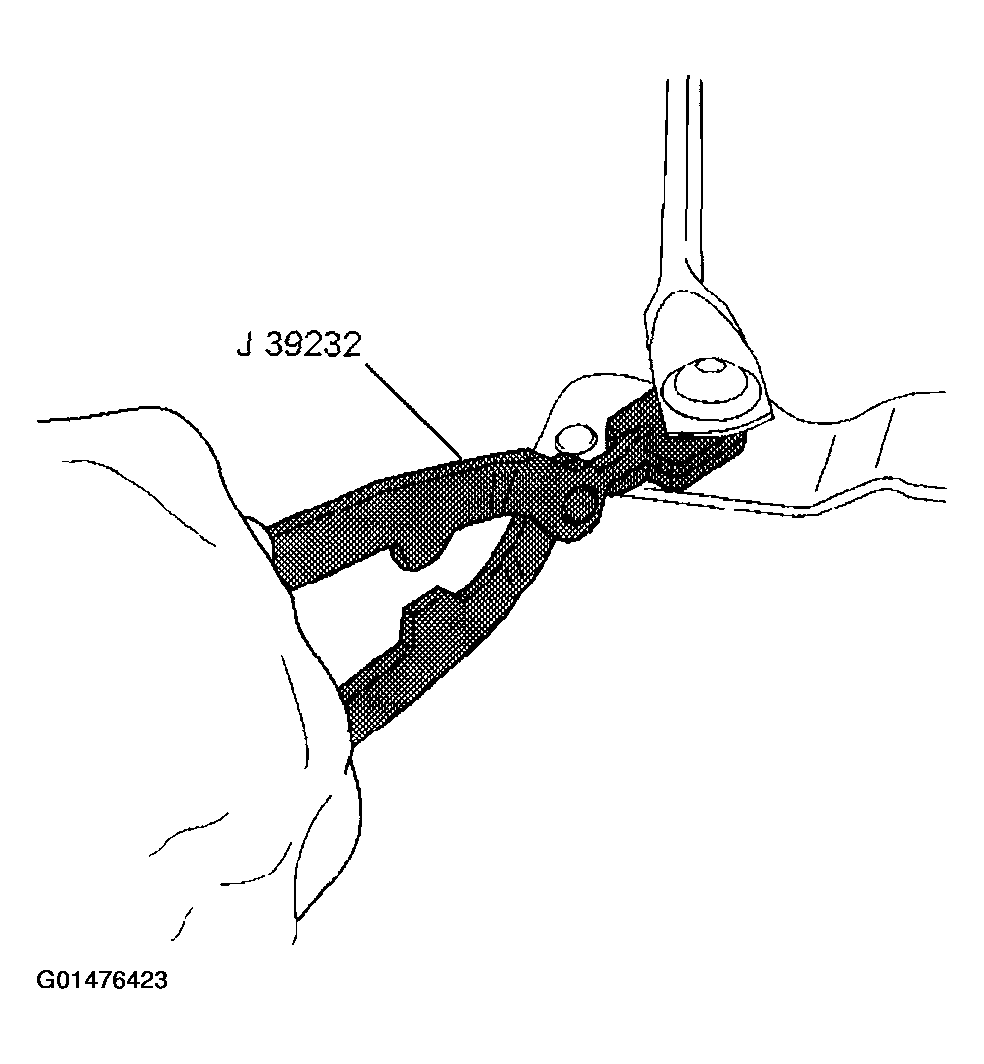

    Fig 1: Removing Transmission Drive Link From Wiper Motor Crank Arm Using Wiper Transmission Separator
    G01476423Courtesy of GENERAL MOTORS CORP.
  4. Remove the transmission screws.
  5. Remove the transmission from the vehicle through the access openings in the top of the cowl.

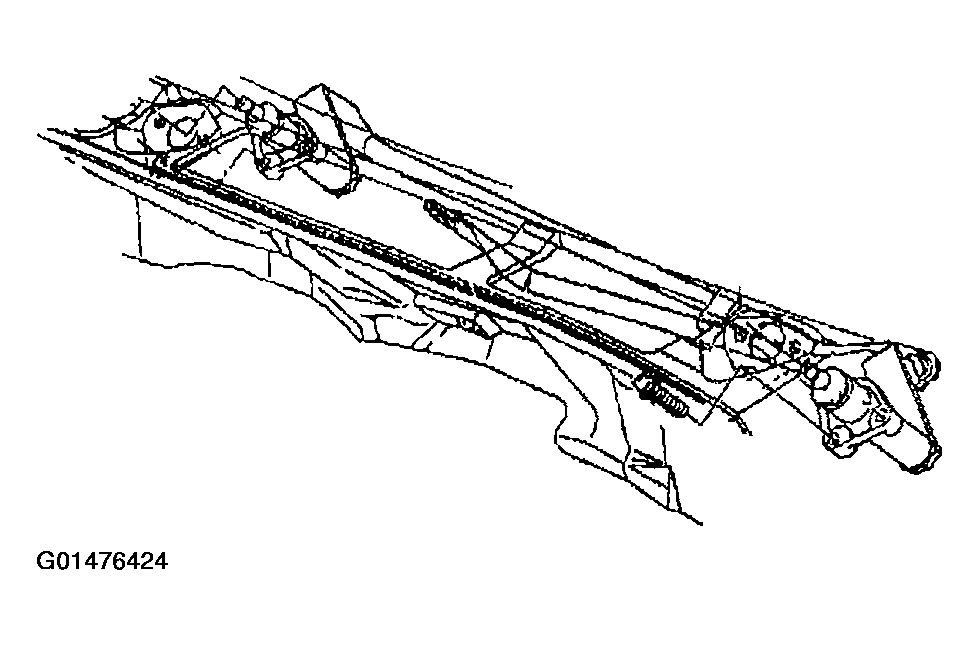

    Fig 2: Removing Transmission From Vehicle Through Access Openings In Top Of Cowl
    G01476424Courtesy of GENERAL MOTORS CORP.
