Wiper Arm Blade Replacement - Rear: Notes

WARNING: This page is about a different car, the 2003 GMC Sonoma, 2003 GMC Jimmy, 2003 Chevrolet S10 Pickup, and 2003 Chevrolet Blazer. However, it is still accessible from the selected car via links, so may be relevant.

Important: Do not to allow the wiper arm to fall back and strike the window.

Lift the wiper arm off of the window.
Push in the locking tab of the wiper blade clip and pull downward on the wiper blade.

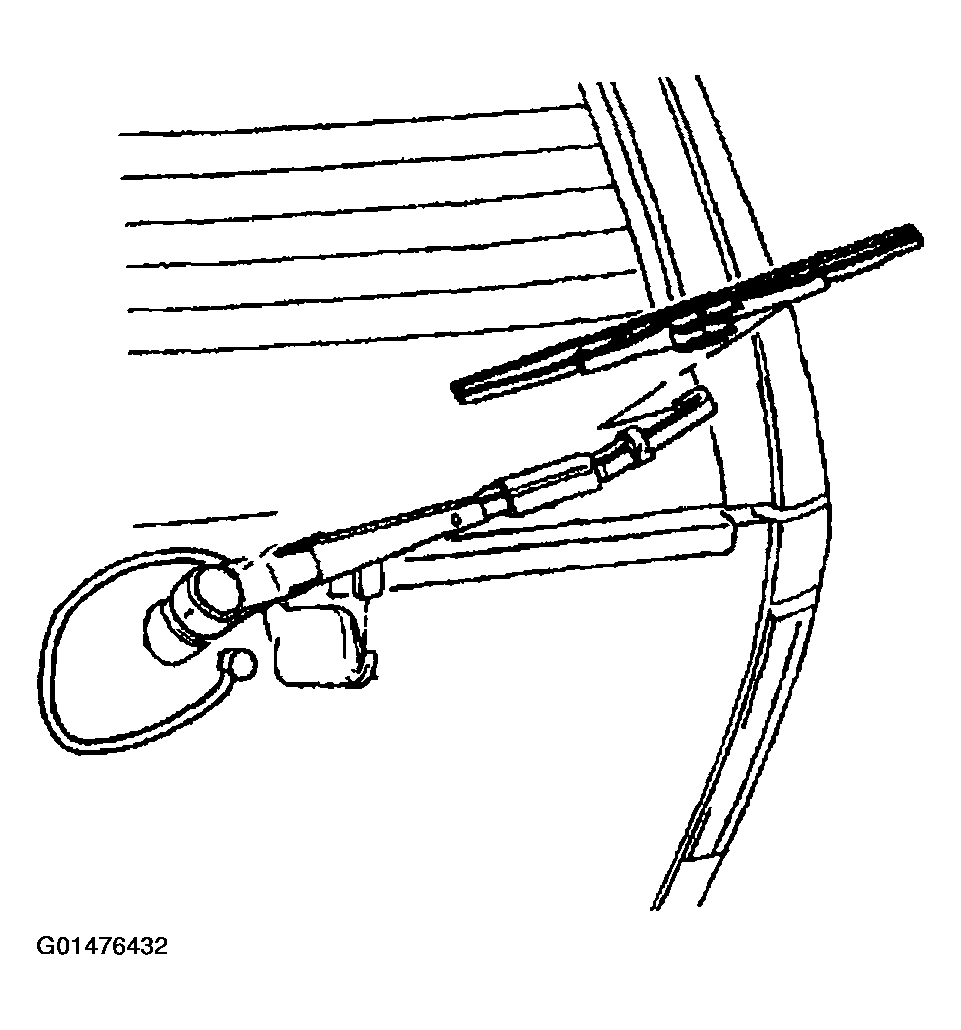

Fig 1: Pushing In Locking Tab Of Wiper Blade Clip & Pulling Downward On Wiper Blade
Courtesy of GENERAL MOTORS CORP.
Remove the wiper blade pivot from the inside radius of the wiper arm.
Bring the wiper arm out through the opening in the wiper blade.

Fig 2: Bringing Wiper Arm Out Through Opening In Wiper Blade
Courtesy of GENERAL MOTORS CORP.
