Installation Procedure

WARNING: This page is about a different car, the 2003 GMC Sonoma, 2003 GMC Jimmy, 2003 Chevrolet S10 Pickup, and 2003 Chevrolet Blazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the washer pumps and grommets onto the solvent container.

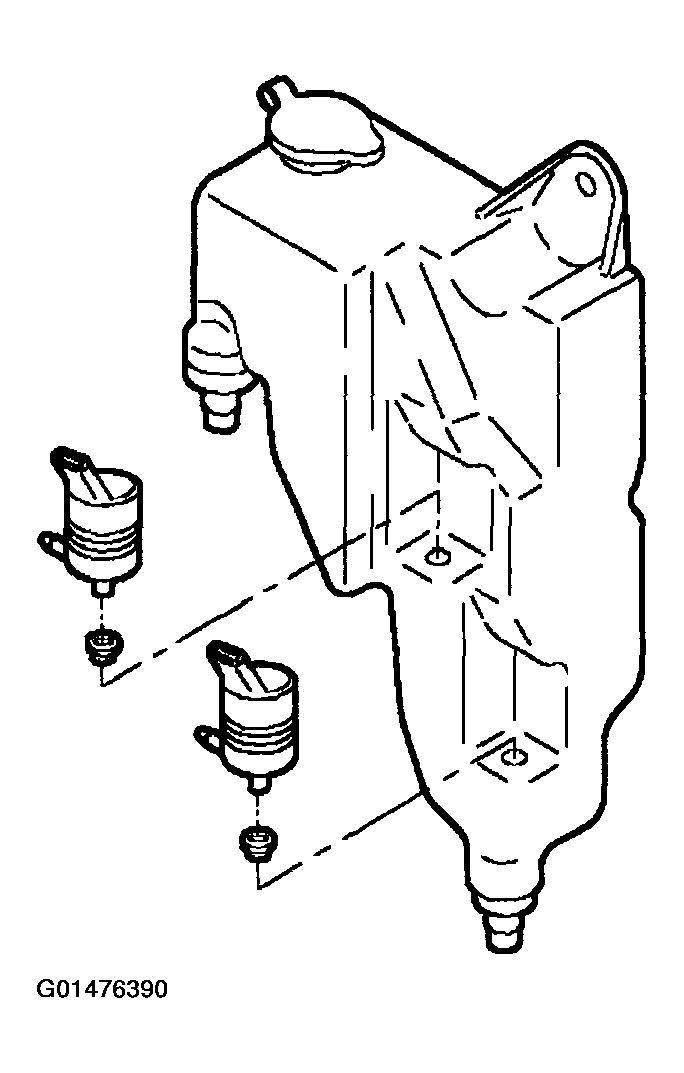

    Fig 1: Installing Washer Pumps & Grommets Onto Solvent Container
    G01476390Courtesy of GENERAL MOTORS CORP.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  2. Install the solvent container onto the vehicle with the screw.

    Tighten

    Tighten the screw to 3 N.m (27 Ib. in).

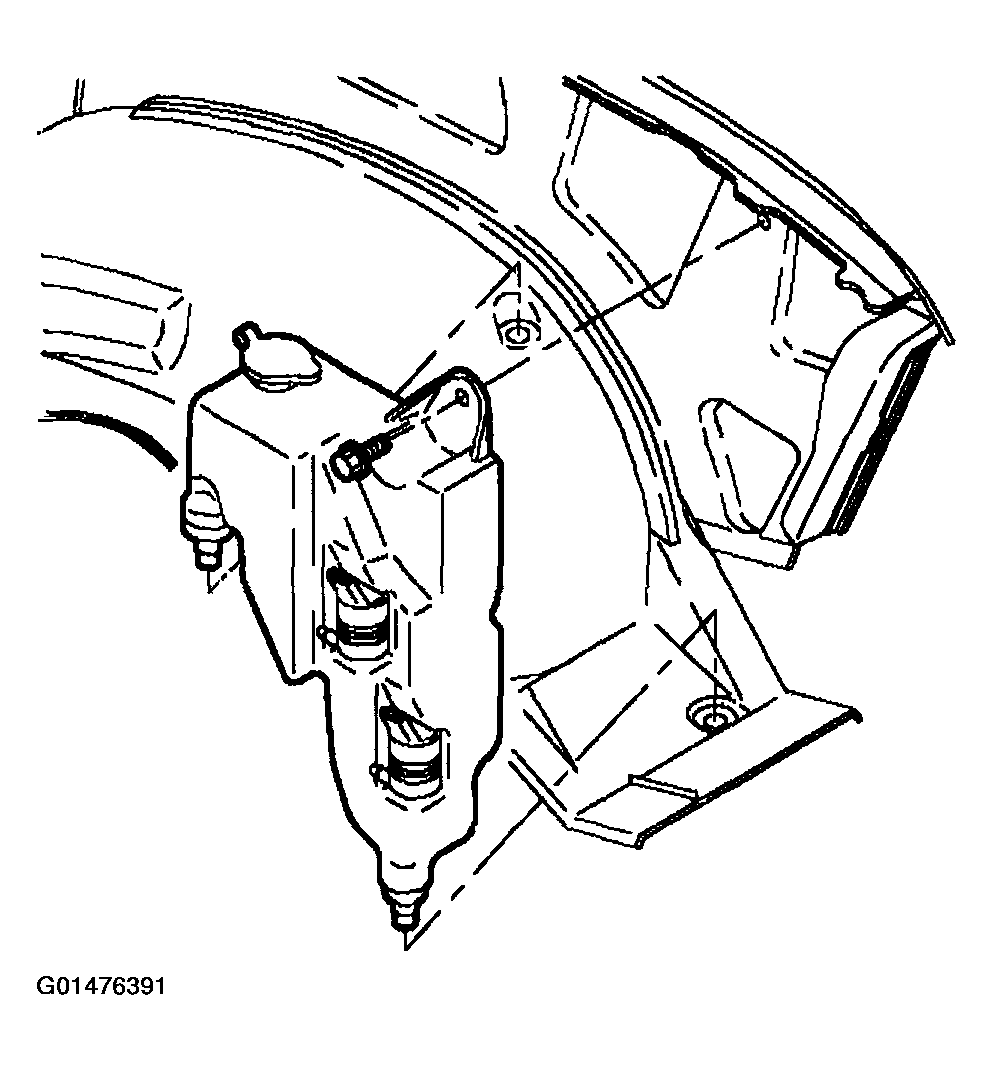

    Fig 2: Installing Solvent Container Onto Vehicle With Screw
    G01476391Courtesy of GENERAL MOTORS CORP.
  3. Connect the hoses to the washer pumps.
  4. Connect the electrical connectors to the washer pumps.
  5. Refill the washer solvent in the solvent container.
  6. Close the hood.

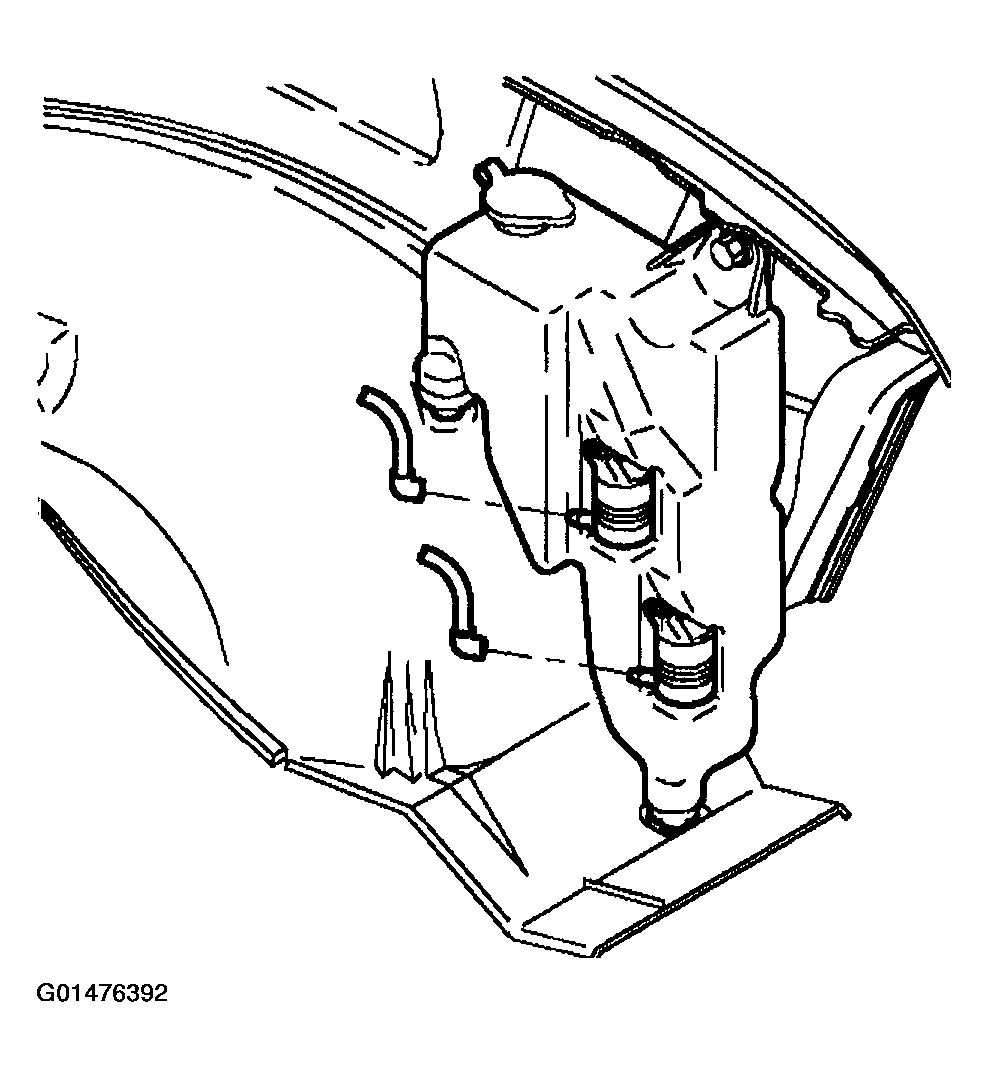

    Fig 3: Connecting Hoses To Washer Pump
    G01476392Courtesy of GENERAL MOTORS CORP.
