Installation Procedure

WARNING: This page is about a different car, the 2003 GMC Sonoma, 2003 GMC Jimmy, 2003 Chevrolet S10 Pickup, and 2003 Chevrolet Blazer. However, it is still accessible from the selected car via links, so may be relevant.

Route the hose over the left wheelhouse panel.
Install the hose to the pump.

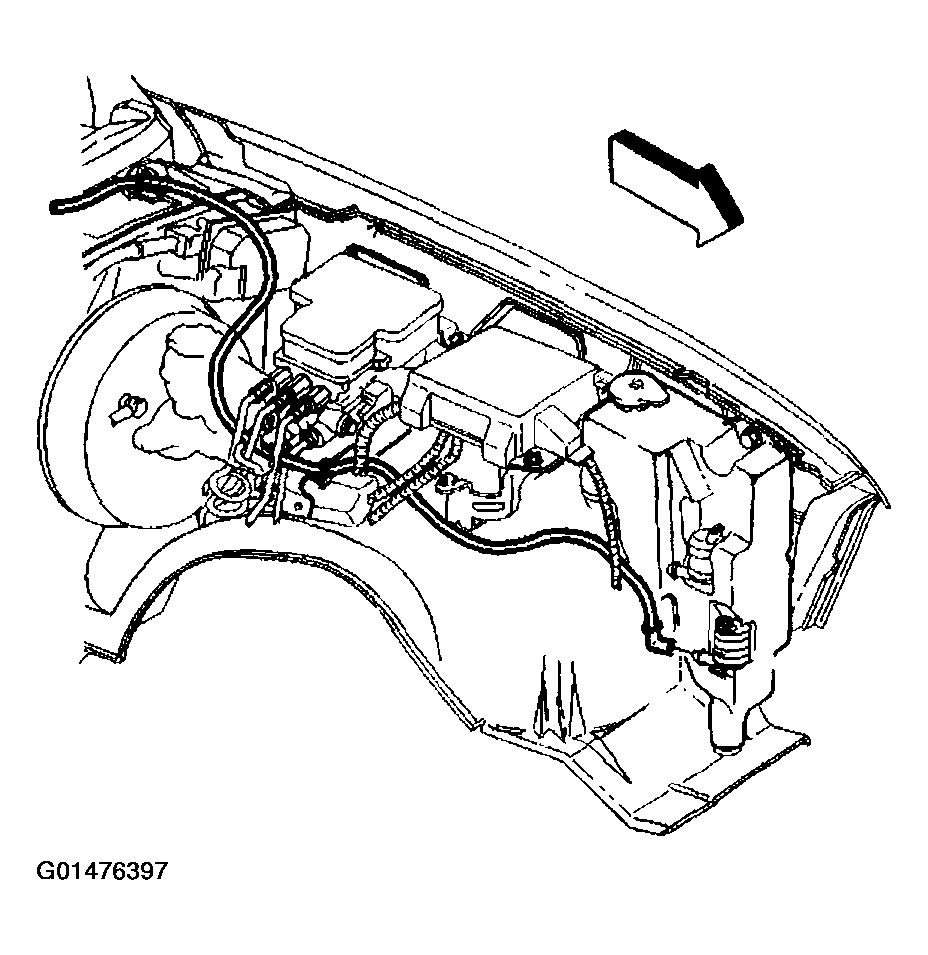

Fig 1: Installing Hose To Pump
Courtesy of GENERAL MOTORS CORP.
Install the hose to the nozzles.
Install the hose clip to the hood.
Close the hood.

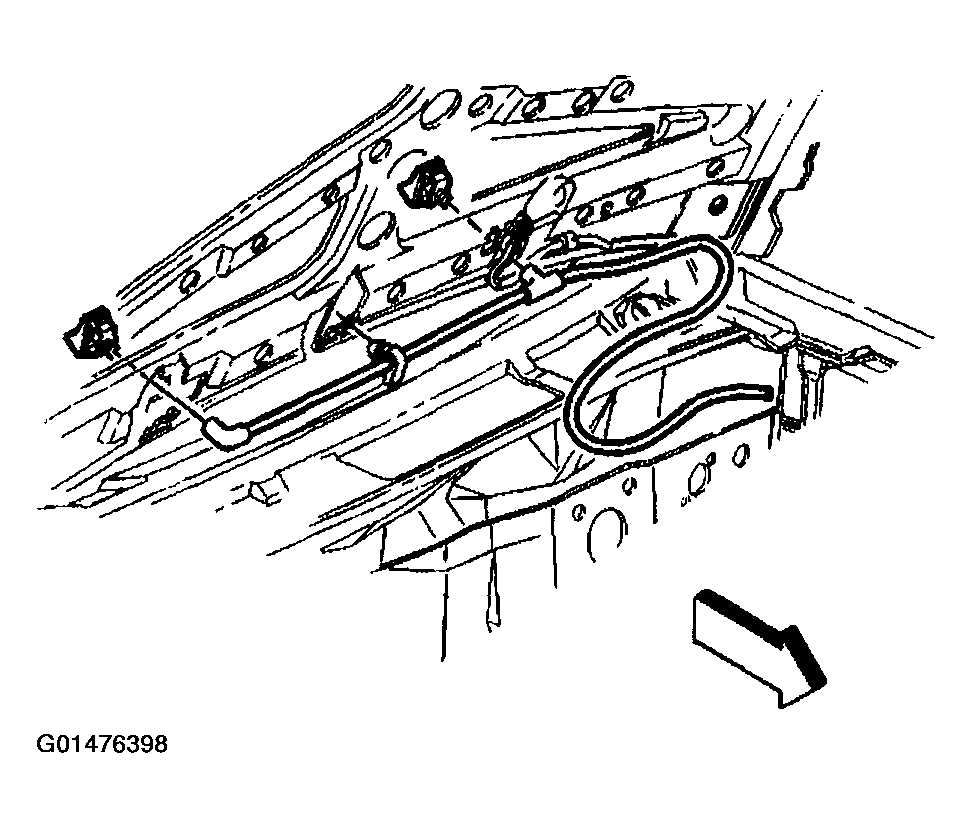

Fig 2: Installing Hose To Nozzles
Courtesy of GENERAL MOTORS CORP.
