Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Aztek and 2003 Buick Rendezvous. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the speaker to the door trim panel assembly.

    Tighten

    Tighten the speaker screws to 3.2 N.m 28 lb in).

  2. Connect the wire harness to the speaker.
  3. Install the trim panel assembly to the front door. Refer to TRIM PANEL REPLACEMENT -- SIDE FRONT DOOR (AZTEK) or TRIM PANEL REPLACEMENT -- SIDE FRONT DOOR (RENDEZVOUS) .

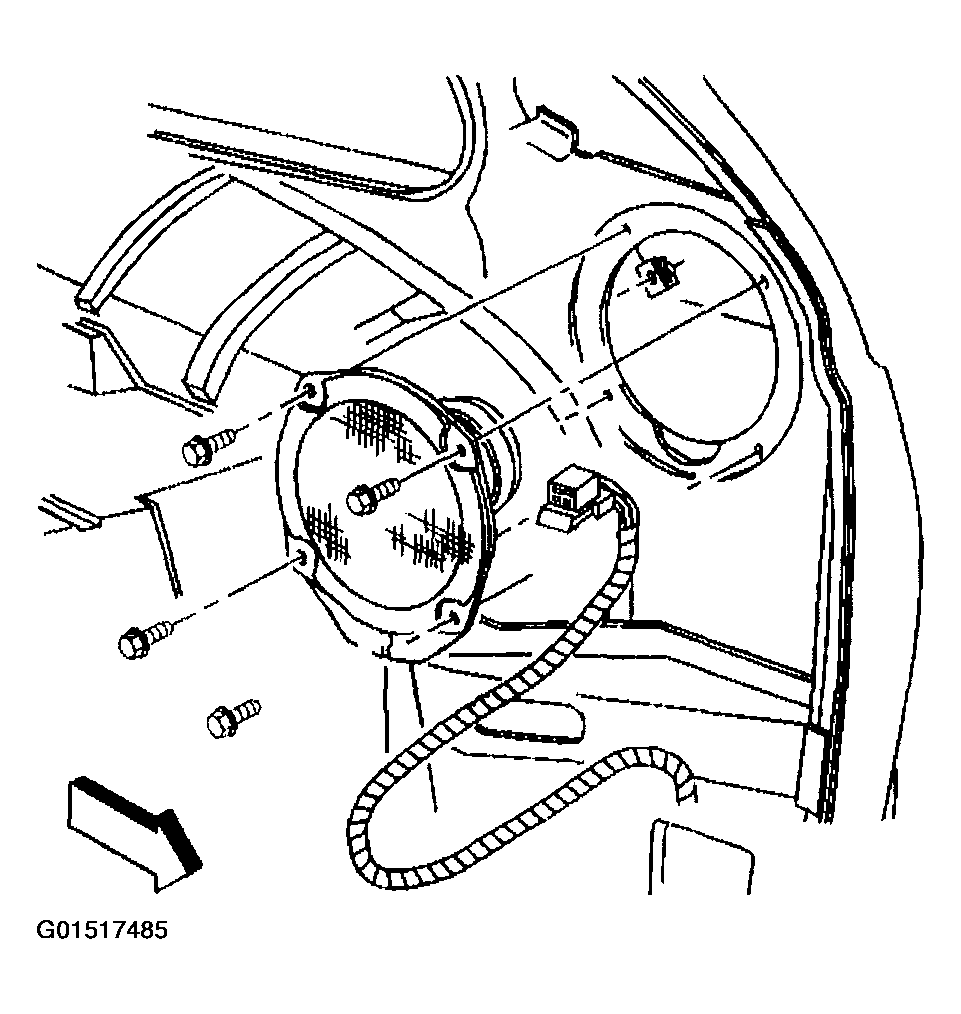

    Fig 1: Installing Speaker To Door Trim Panel Assembly
    G01517485Courtesy of GENERAL MOTORS CORP.
