Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Aztek and 2003 Buick Rendezvous. However, it is still accessible from the selected car via links, so may be relevant.
  1. Position the endgate support cable to the endgate.
  2. Install the bolts to the endgate support cable.

    Tighten the endgate support cable bolts to 3 N.m (27 lb in).

  3. Remove the support from the endgate.
  4. Close the endgate.

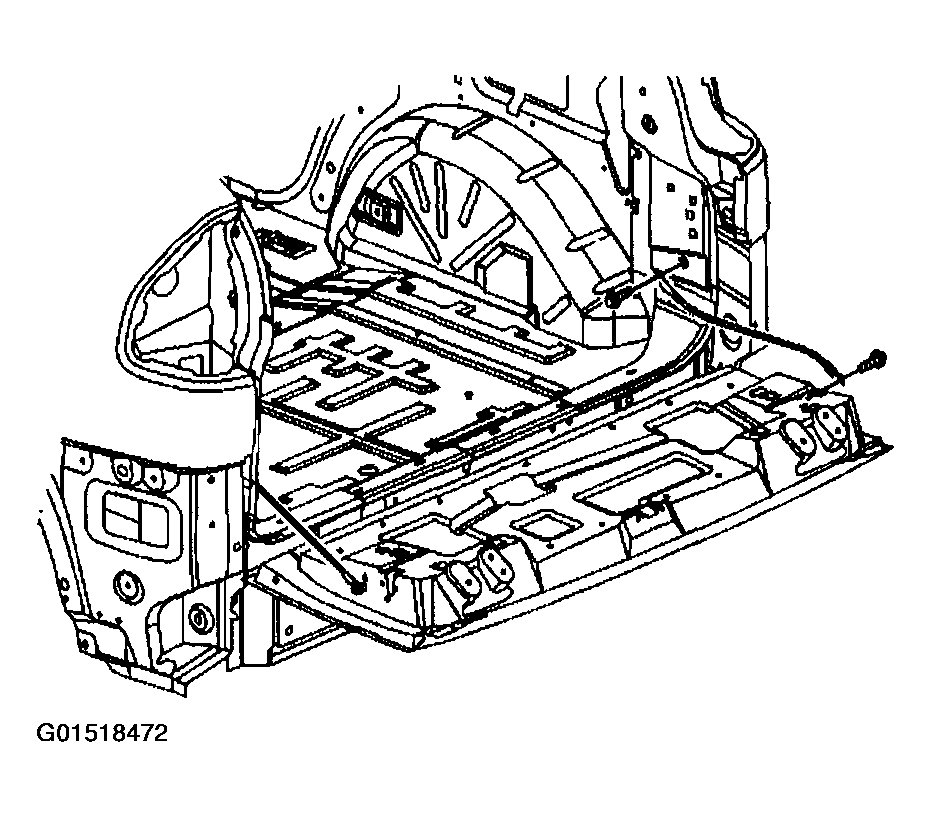

    Fig 1: Installing Procedure Of Support Cable Replacement - End Gate
    G01518472Courtesy of GENERAL MOTORS CORP.
