Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Aztek and 2003 Buick Rendezvous. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the pullstrap to the lift gate.
  2. Install the screws to the pullstrap.

    Tighten the pullstrap screws to 1.9 N.m (17 lb in).

  3. Close the lift gate.

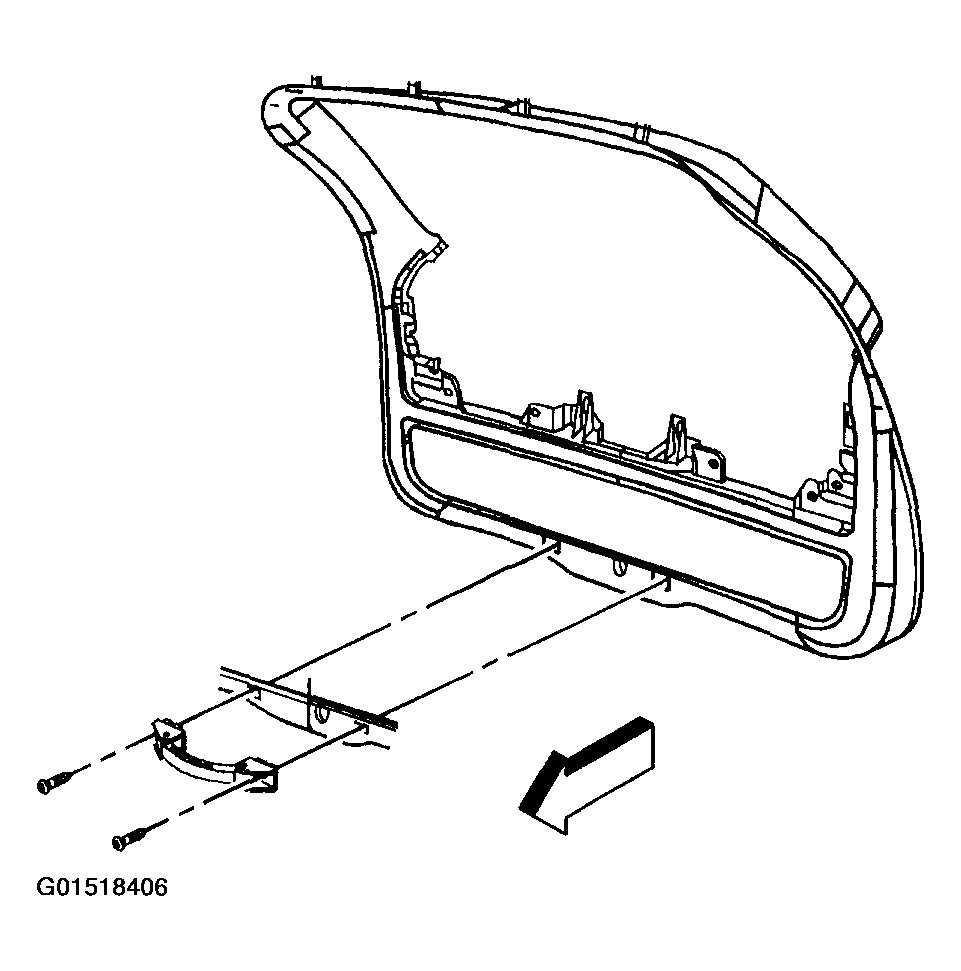

    Fig 1: Installing Procedure Pullstrap Replacement - Lift Gate
    G01518406Courtesy of GENERAL MOTORS CORP.
