Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Aztek and 2003 Buick Rendezvous. However, it is still accessible from the selected car via links, so may be relevant.
  1. Position the wiper motor cover to the wiper motor.
  2. Install the wiper motor cover screws.

    Tighten

    Tighten the screws to 3 N.m(27 lb in).

  3. Install the wiper system drive module. Refer to WIPER MOTOR MODULE REPLACEMENT  .

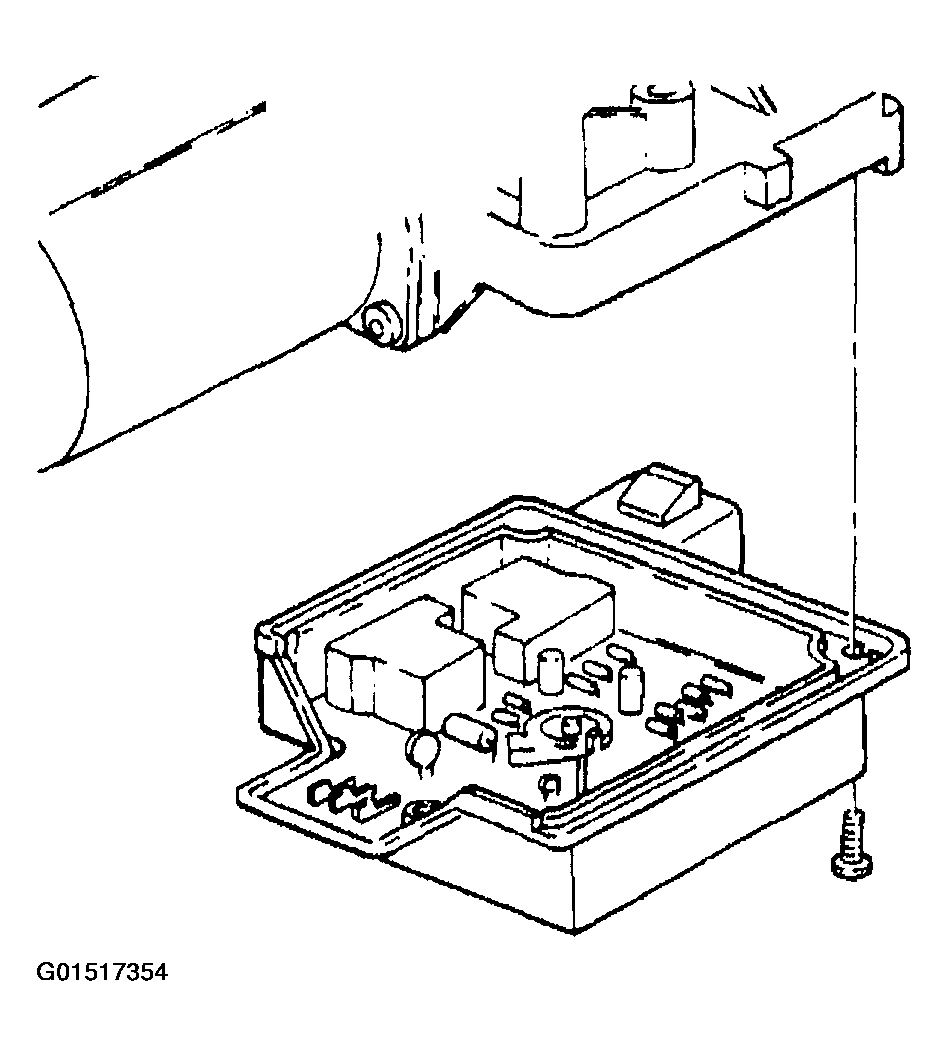

    Fig 1: Installing Wiper Motor Cover To Wiper Motor
    G01517354Courtesy of GENERAL MOTORS CORP.
