Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Aztek and 2003 Buick Rendezvous. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the ball joint to the lower control arm.
    Fig 1: Installing Ball Joint To Lower Control Arm
    G01499521Courtesy of GENERAL MOTORS CORP.
  2. Install the new ball joint bolts facing downward, away from the ball stud.
  3. Install the new ball joint retaining nuts.

    Tighten  Tighten the ball joint retaining nuts to 68N.m(50 lb ft).

  4. Install the lower control arm. Refer to LOWER CONTROL ARM REPLACEMENT  .
  5. Install the tire and wheels.
  6. Lower the vehicle.
  7. Align the front suspension. Refer to MEASURING WHEEL ALIGNMENT .

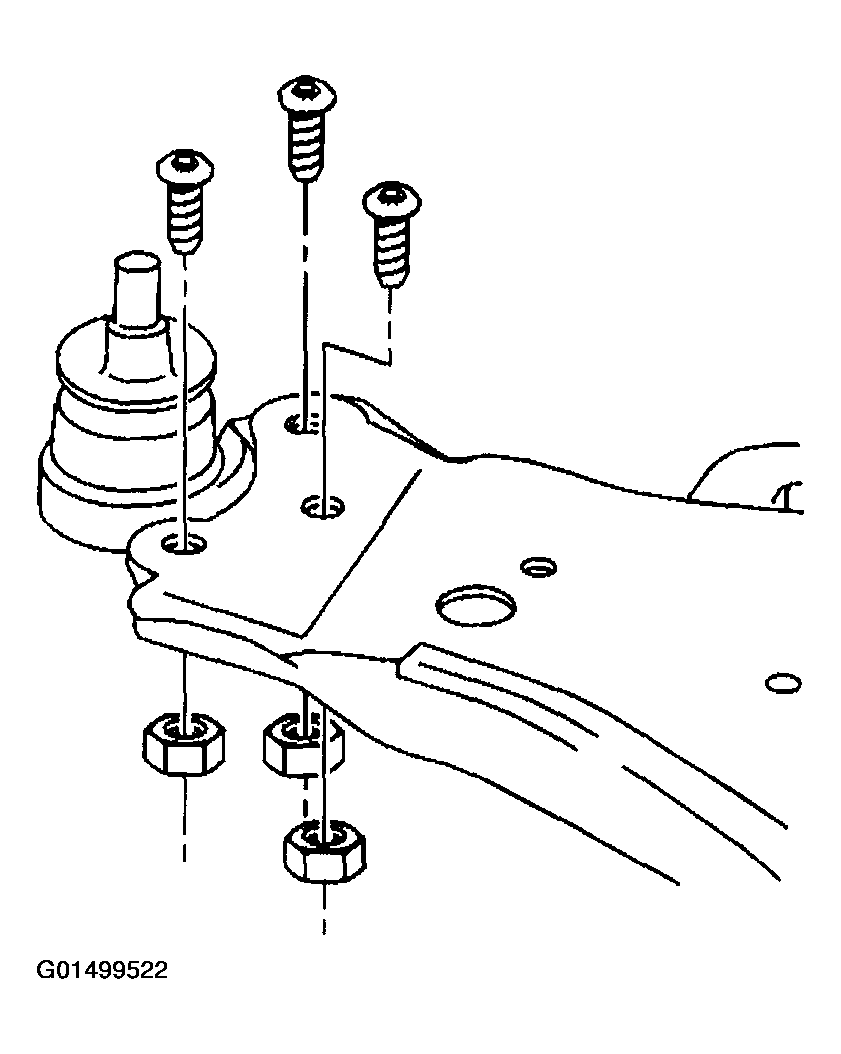

    Fig 2: Installing Ball Joint Bolts And Nuts
    G01499522Courtesy of GENERAL MOTORS CORP.
