Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Aztek and 2003 Buick Rendezvous. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the hood insulator to the hood support brackets.
  2. Align the hood insulator retainers holes to the holes in the hood.

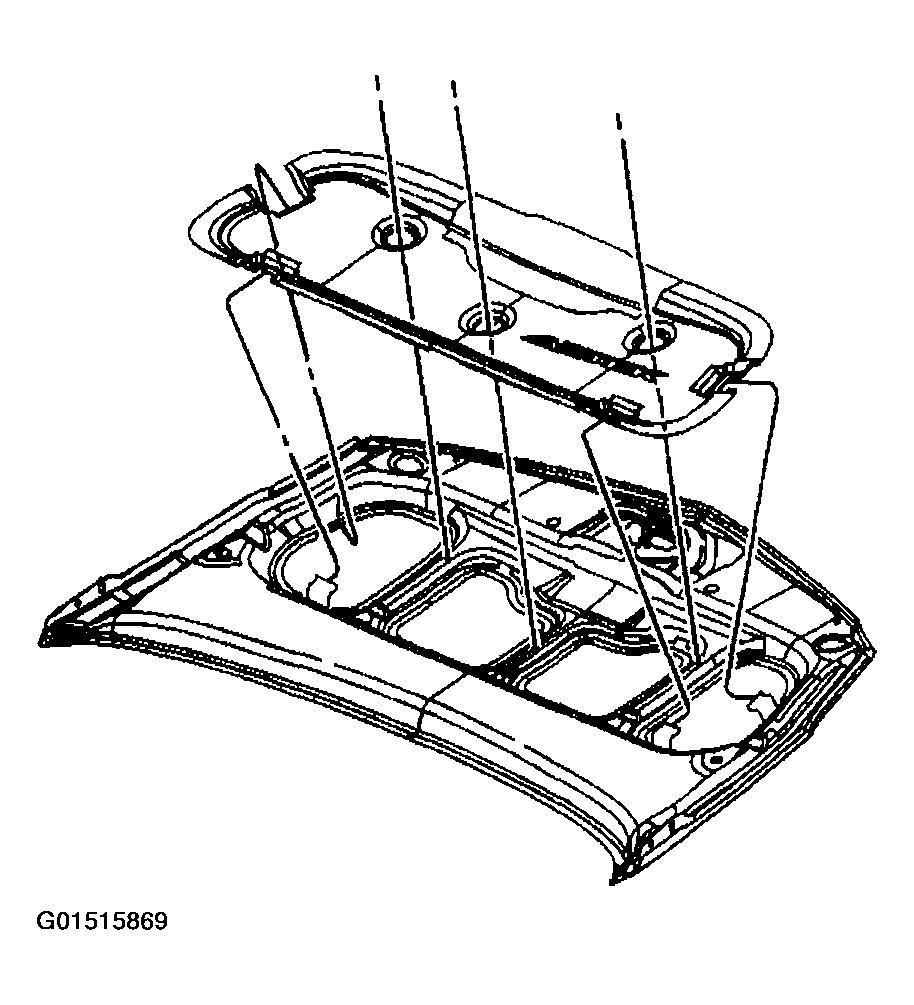

    Fig 1: Installing Hood Insulator To Hood Support Brackets
    G01515869Courtesy of GENERAL MOTORS CORP.
  3. Install the push-in retainers to the hood.
  4. Close the hood.

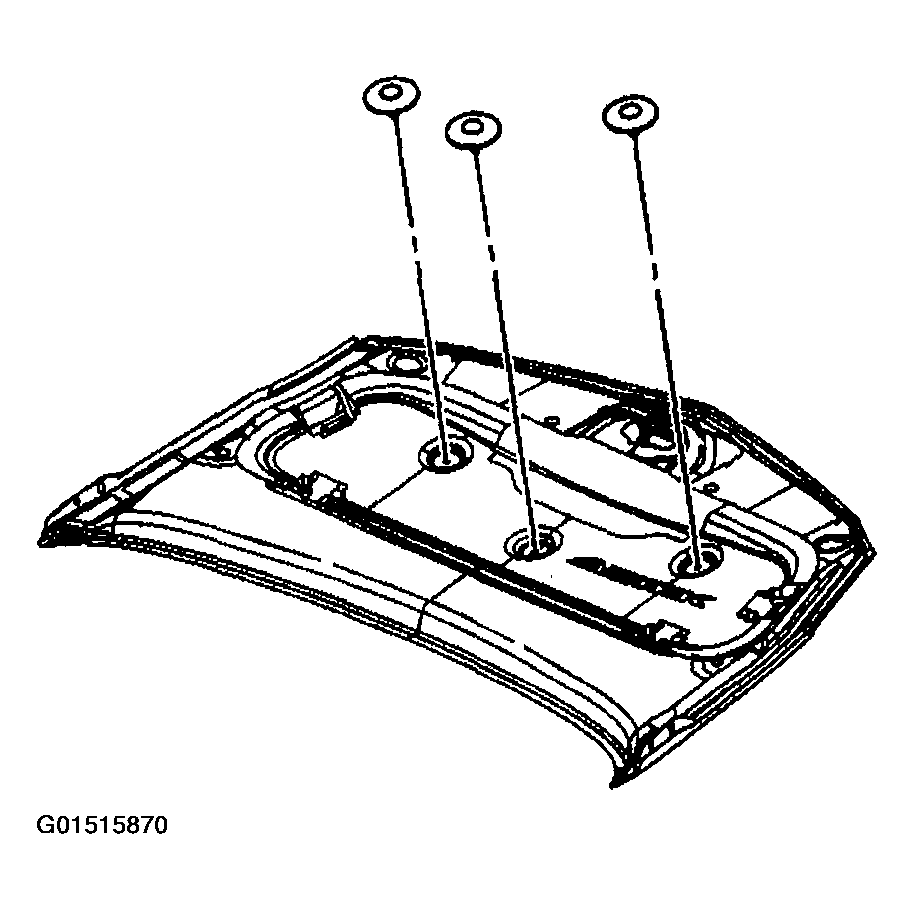

    Fig 2: Installing Push-In Retainers To Hood
    G01515870Courtesy of GENERAL MOTORS CORP.
