Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Aztek and 2003 Buick Rendezvous. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the battery negative cable from the battery.
  2. Raise and suitably support the vehicle.
  3. Remove the electrical connector from the engine oil pressure sensor.
  4. Remove the engine oil pressure switch.

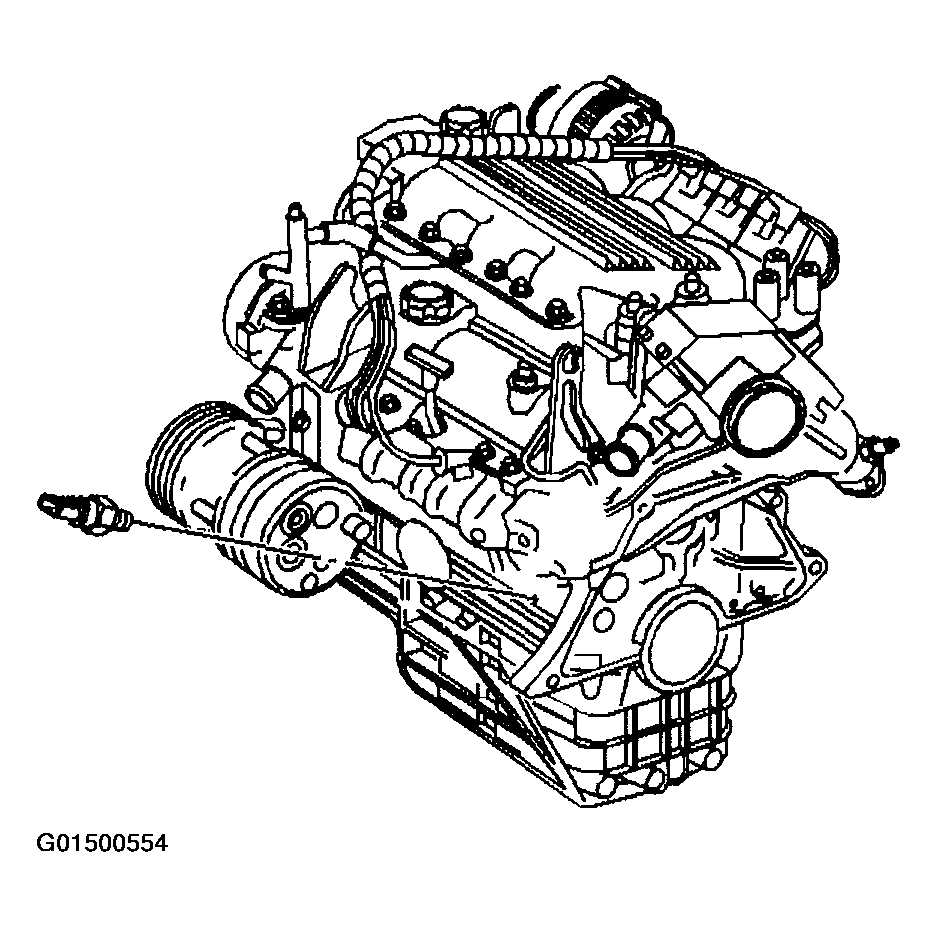

    Fig 1: Removing Engine Oil Pressure Switch
    G01500554Courtesy of GENERAL MOTORS CORP.
