Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Aztek and 2003 Buick Rendezvous. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the upper I/P trim pad. Refer to TRIM PAD REPLACEMENT -- INSTRUMENT PANEL (I/P) UPPER (AZTEK) or TRIM PAD REPLACEMENT -- INSTRUMENT PANEL (I/P) UPPER (RENDEZVOUS) .
  2. Disconnect the recirculation actuator electrical connector.

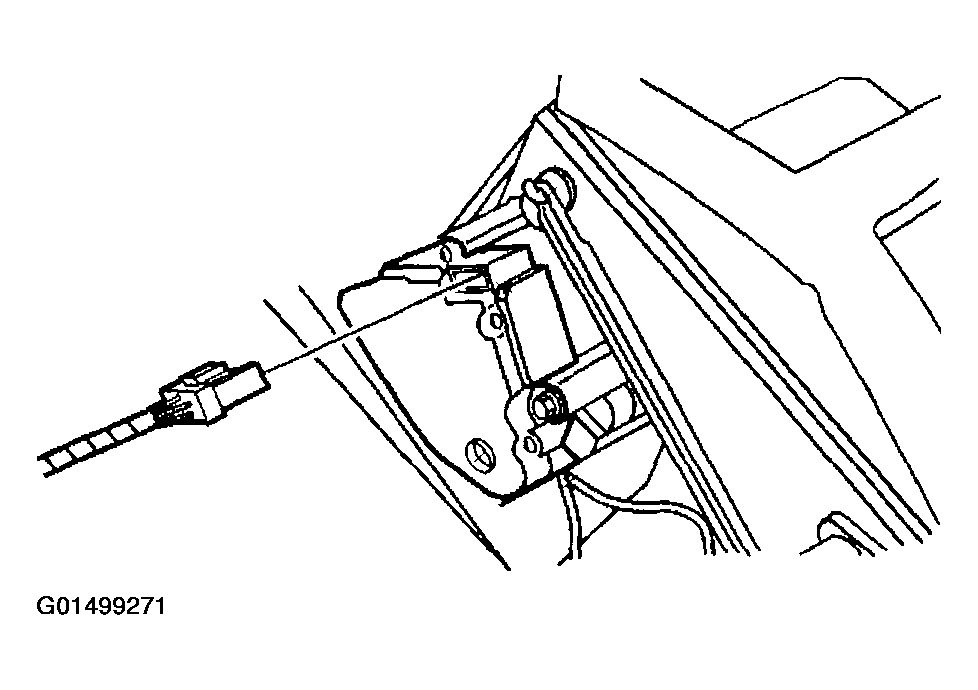

    Fig 1: Disconnecting Recirculation Actuator Electrical Connector
    G01499271Courtesy of GENERAL MOTORS CORP.
  3. Remove the mounting screws from the recirculation actuator.
  4. Remove the recirculation actuator.

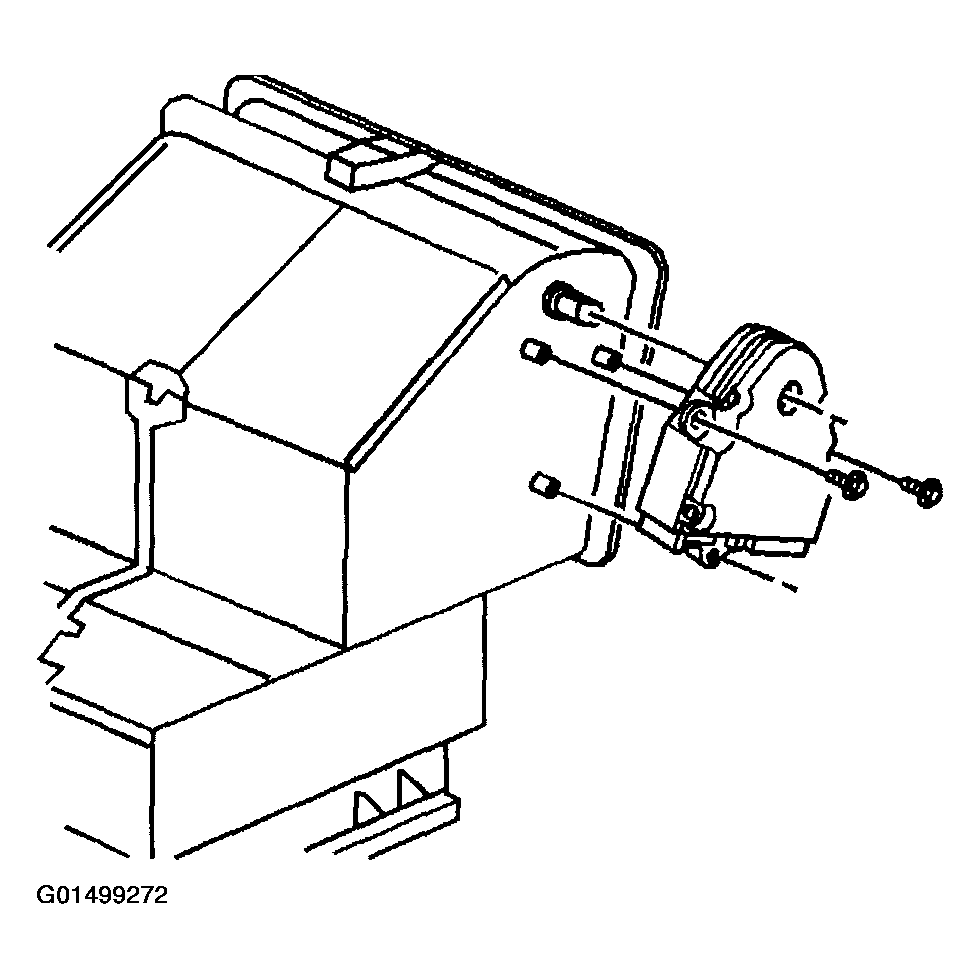

    Fig 2: Removing Mounting Screws And Recirculation Actuator
    G01499272Courtesy of GENERAL MOTORS CORP.
