Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Aztek and 2003 Buick Rendezvous. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the mode actuator.
  2. Install the mode actuator mounting screws.

    Tighten

    Tighten the screws to 1.6 N.m (14 Ib. in).

  3. Connect the I/P wiring harness clip to the I/P support bracket.

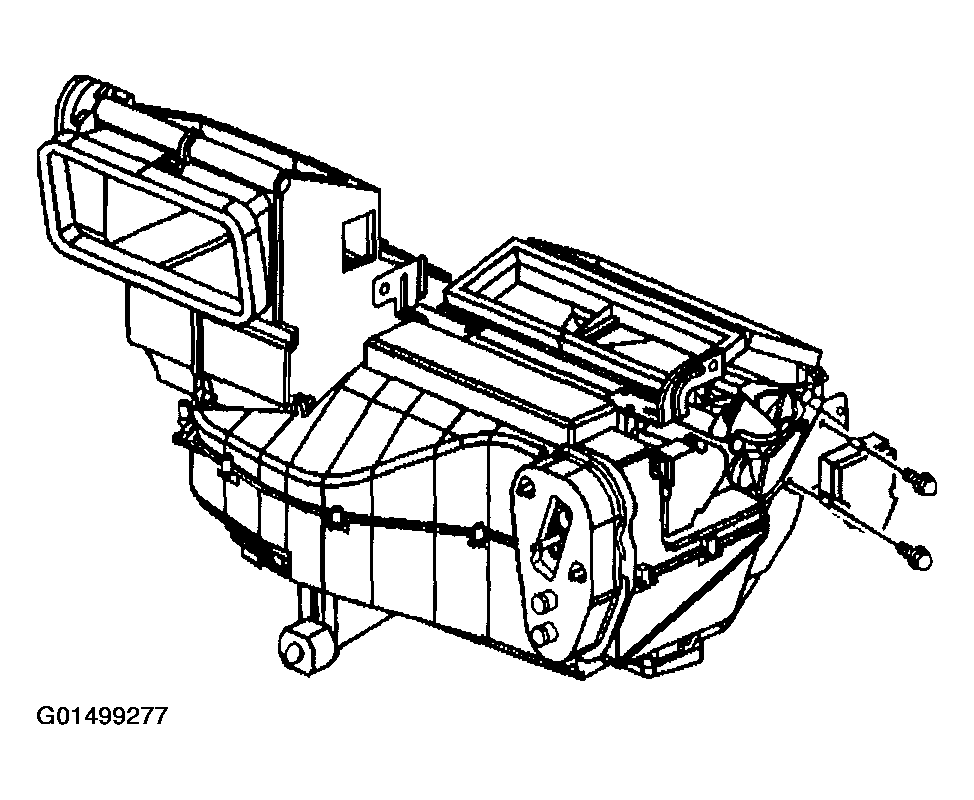

    Fig 1: Installing Mode Actuator Mounting Screws
    G01499277Courtesy of GENERAL MOTORS CORP.

    Important:  Align the counted number of threads on the mode actuator push rod (2) with the tip of the retainer clip (1).

  4. Connect the mode actuator push rod (2) to the retainer clip (1).
  5. Close the push rod retainer clip (1).
  6. Connect the mode actuator electrical connector.
  7. Install the knee bolster. Refer to KNEE BOLSTER REPLACEMENT .

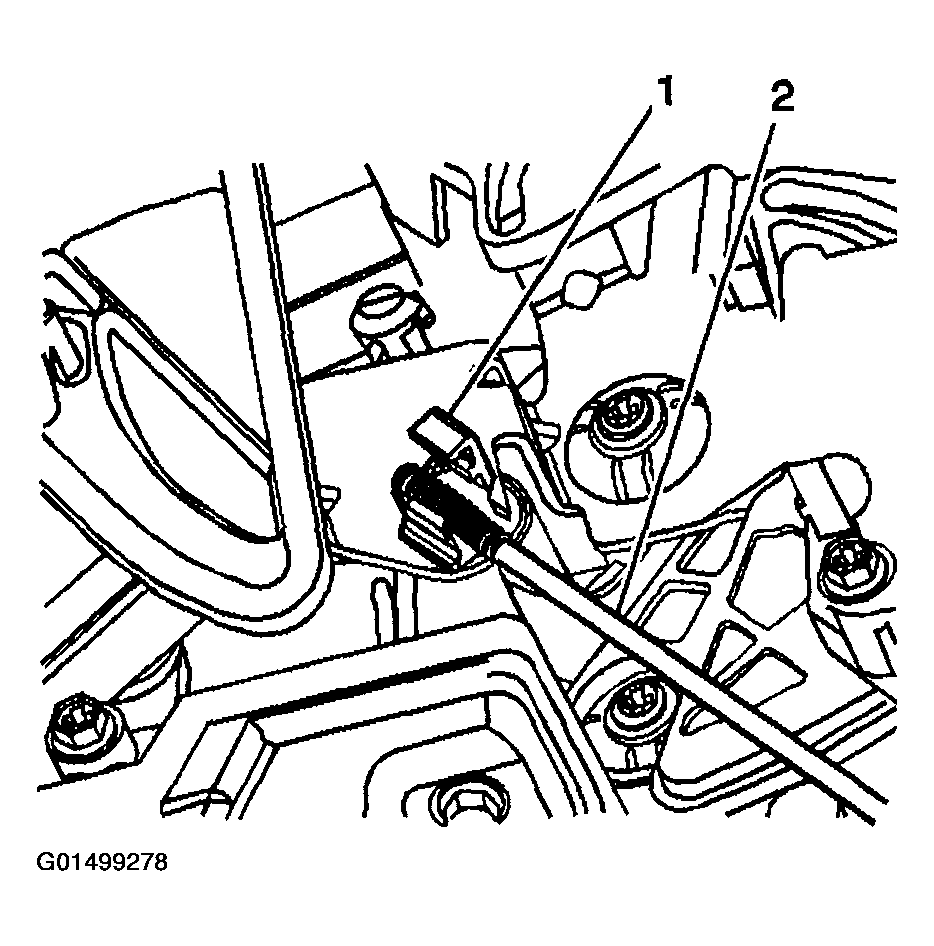

    Fig 2: Connecting Mode Actuator Push Rod To Retainer Clip
    G01499278Courtesy of GENERAL MOTORS CORP.
