Installation Procedure

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 GMC Yukon XL, 2003 GMC Yukon, 2003 Chevrolet Tahoe, 2003 Chevrolet Suburban, and 2003 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.
  1. Connect the electrical connector to the sensor.
  2. Install the sensor to the radiator support brace and install the push pin retainer.
  3. Install the radiator grille to the vehicle. Refer to GRILLE REPLACEMENT (CADILLAC) or GRILLE REPLACEMENT (AVALANCHE) in EXTERIOR TRIM

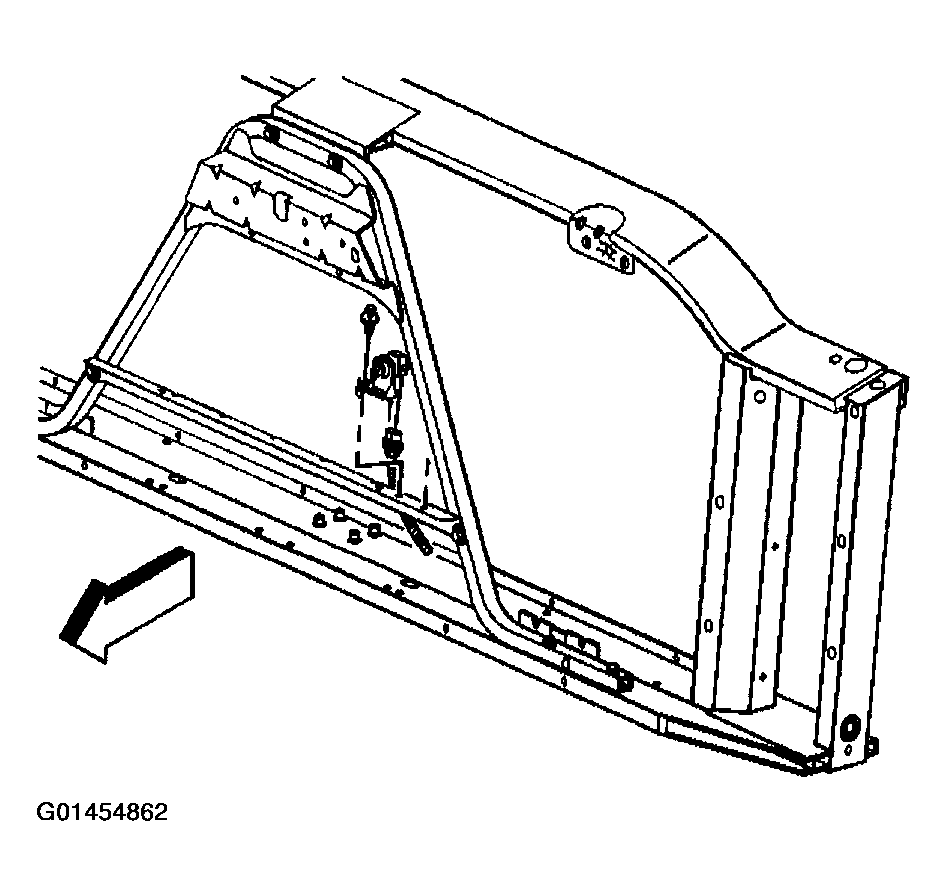

    Fig 1: Installing Ambient Air Temperature Sensor
    G01454862Courtesy of GENERAL MOTORS CORP.
