Removal Procedure

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2002 GMC Yukon XL, 2002 GMC Yukon, 2002 Chevrolet Tahoe, 2002 Chevrolet Suburban, and 2002 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.
  1. Raise and support the vehicle. Refer to LIFTING AND JACKING THE VEHICLE .
  2. Remove the tire and wheel. Refer to TIRE AND WHEEL REMOVAL AND INSTALLATION .
  3. Remove the stabilizer shaft links from the lower control arm. Refer to Stabilizer Shaft Replacement .
  4. Remove the shock absorber lower nut and the bolt. Refer to Shock Absorber Replacement (2WD)  or Shock Absorber Replacement (4WD)  .
  5. Remove the torsion bars. Refer to Torsion Bar Replacement .
  6. Remove the wheel drive shaft. Refer to AXLE SHAFT , AXLE SHAFT or AXLE SHAFT .
  7. Remove the lower ball joint stud nut.

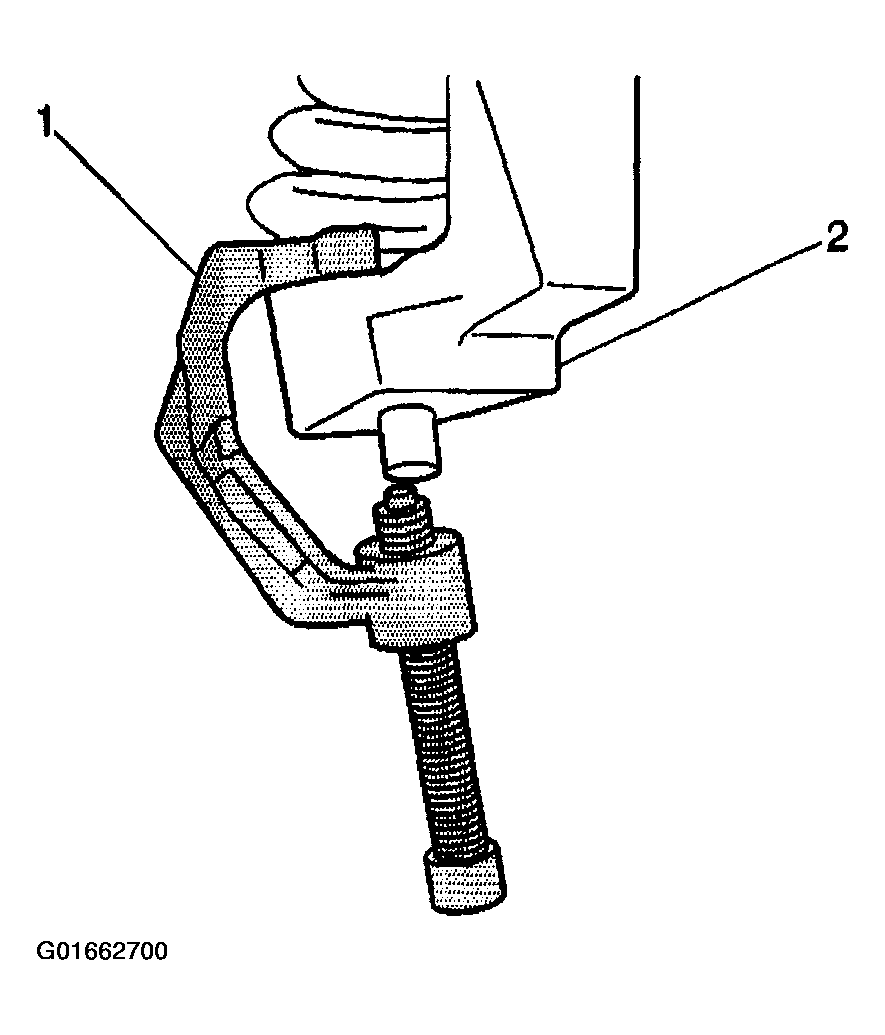

    8. Fig 1: Disconnecting Lower Ball Joint Stud
    G01662700Courtesy of GENERAL MOTORS CORP.
  8. Disconnect the lower ball joint stud from the steering knuckle using J 43631  (1).
  9. Remove the lower control arm nuts and the 15-series washers.
  10. Remove the lower control arm bolts.

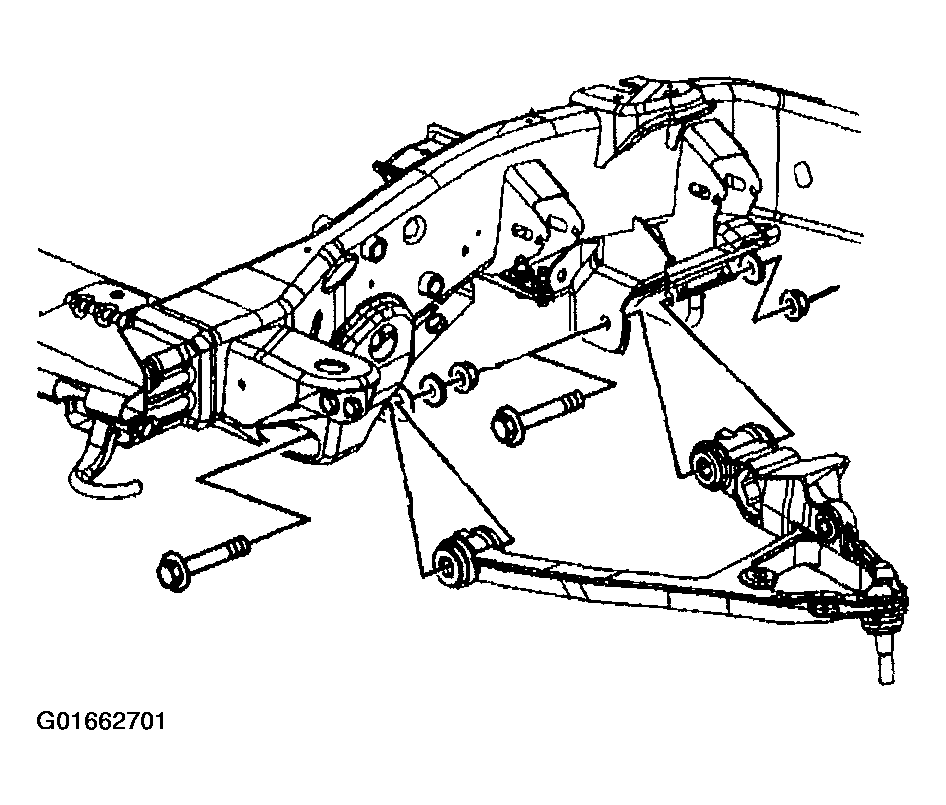

    Fig 2: Removing Lower Control Arm (15 Series)
    G01662701Courtesy of GENERAL MOTORS CORP.
  11. Remove the lower control arm nuts and the 25/35-series washers.
  12. Remove the lower control arm bolts.
  13. Remove the lower control arm.

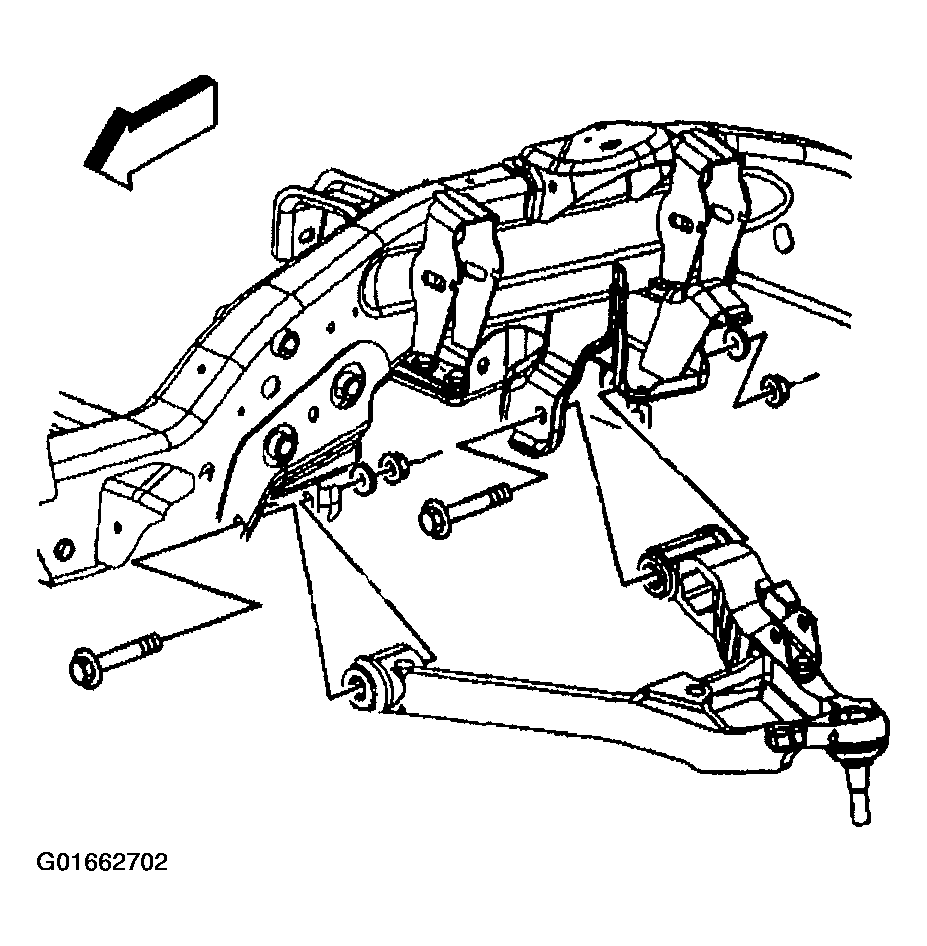

    Fig 3: Removing Lower Control Arm (25/35 Series)
    G01662702Courtesy of GENERAL MOTORS CORP.
