Removal Procedure

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2002 GMC Yukon XL, 2002 GMC Yukon, 2002 Chevrolet Tahoe, 2002 Chevrolet Suburban, and 2002 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.
  1. Raise and support the vehicle. Refer to LIFTING AND JACKING THE VEHICLE .
  2. Remove the tire and wheel. Refer to TIRE AND WHEEL REMOVAL AND INSTALLATION .
  3. Disconnect the Real Time Damping (RTD) link rod from the sensor, if equipped. Refer to FRONT POSITION SENSOR LINK ASSEMBLY REPLACEMENT - ELECTRONIC SUSPENSION .
  4. Remove the torsion bar. Refer to Torsion Bar Replacement .
  5. Remove the lower control arm nuts and the washers for the 15 Series.
  6. Remove the lower control arm bolts for the 15 Series.

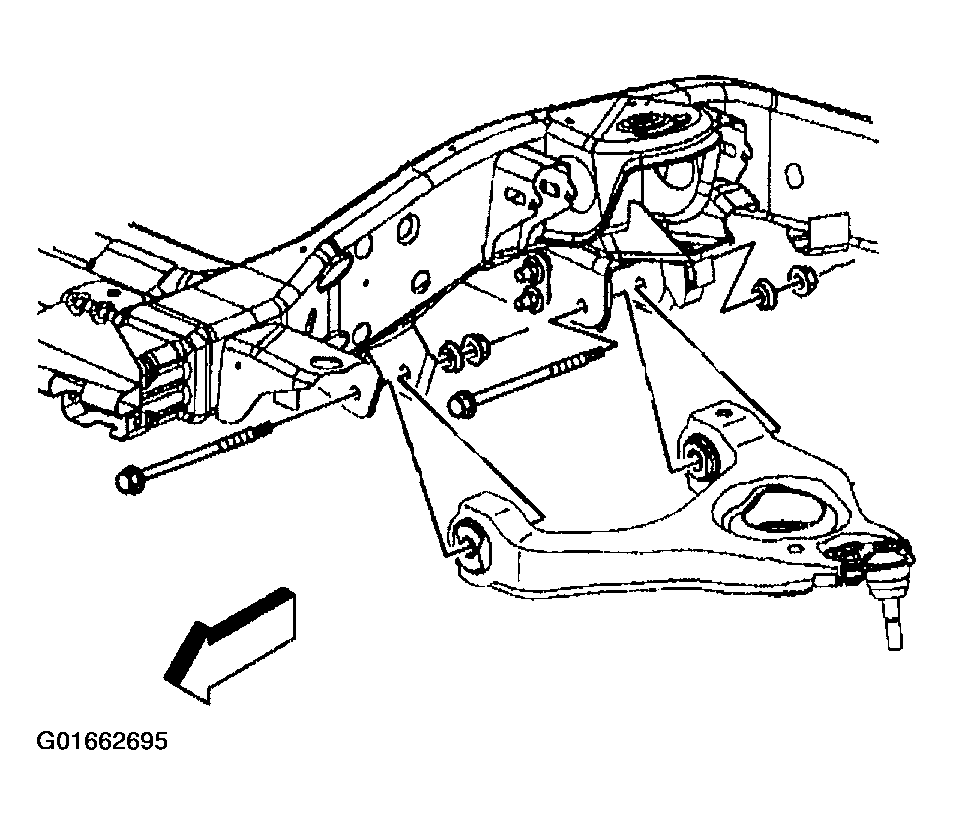

    7. Fig 1: Removing Lower Control Arm (15 Series)
    G01662695Courtesy of GENERAL MOTORS CORP.
  7. Remove the lower control arm nuts and washers for the 25/35 Series.
  8. Remove the lower control arm bolts for the 25/35 Series.

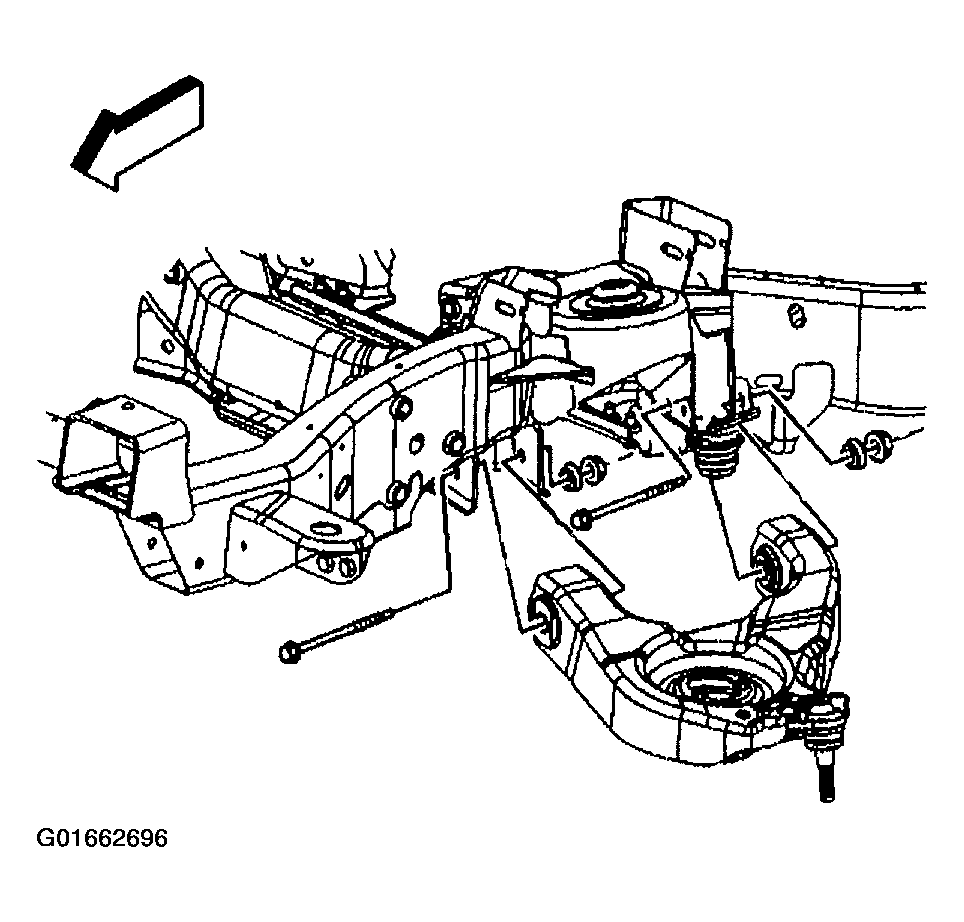

    Fig 2: Removing Lower Control Arm (25/35 Series)
    G01662696Courtesy of GENERAL MOTORS CORP.
  9. Remove the lower ball joint stud nut.
  10. Disconnect the lower ball joint stud from the steering knuckle using J 43631  (1).

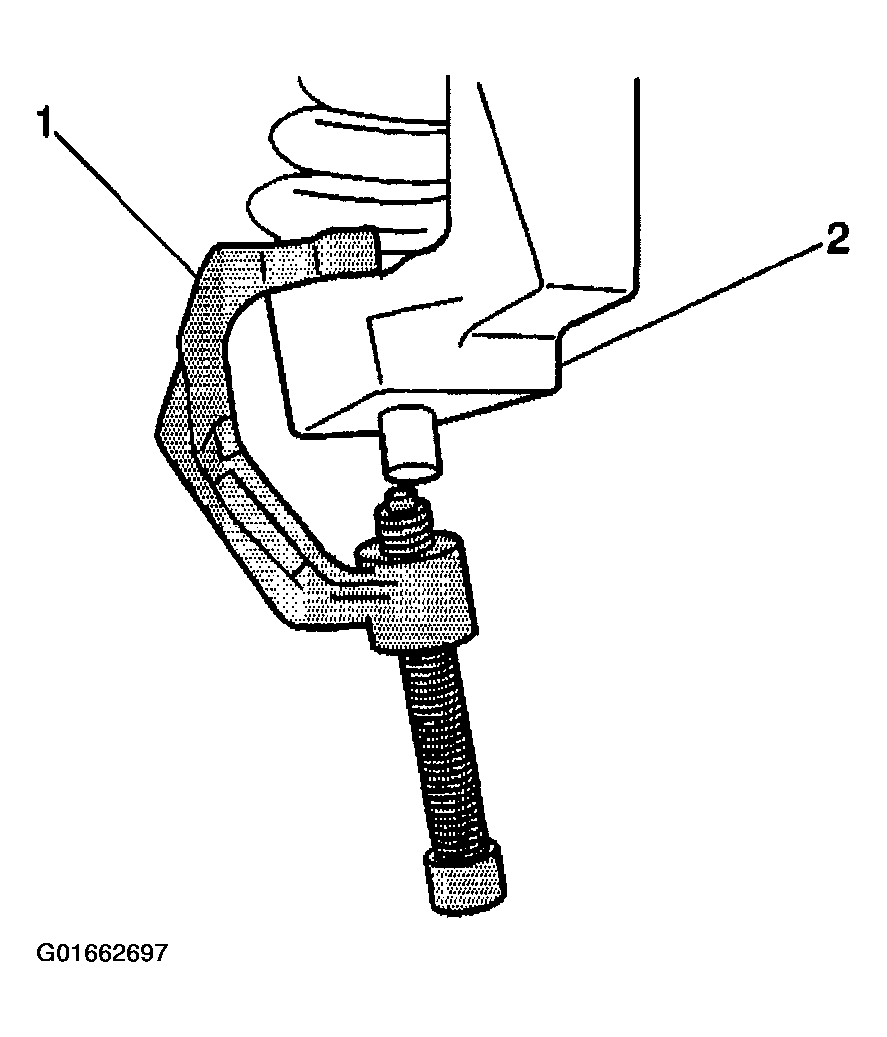

    11. Fig 3: Disconnecting Lower Ball Joint Stud
    G01662697Courtesy of GENERAL MOTORS CORP.
  11. Remove the lower control arm.
