Windshield Washer Nozzle Removal/Installation

WARNING: This page is about a different car, the 2004 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the hood insulator.
  2. Remove the windshield washer hose from the windshield washer nozzle.
  3. Squeeze the tabs of the windshield washer nozzle.
  4. Pull the windshield washer nozzle out to remove it.
  5. Install in the reverse order of removal.

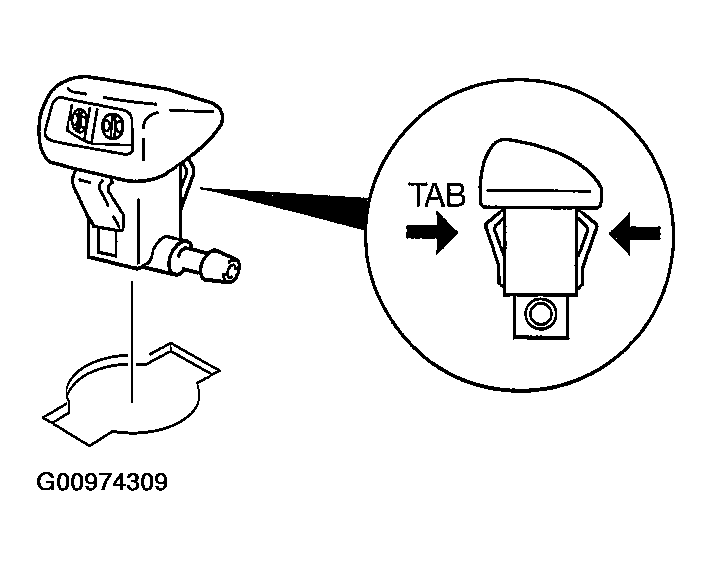

    Fig 1: Removing/Installing Windshield Washer Nozzle
    G00974309Courtesy of MAZDA MOTORS CORP.
