Automatic Transaxle Shift Mechanism Location Index

WARNING: This page is about a different car, the 2004 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.

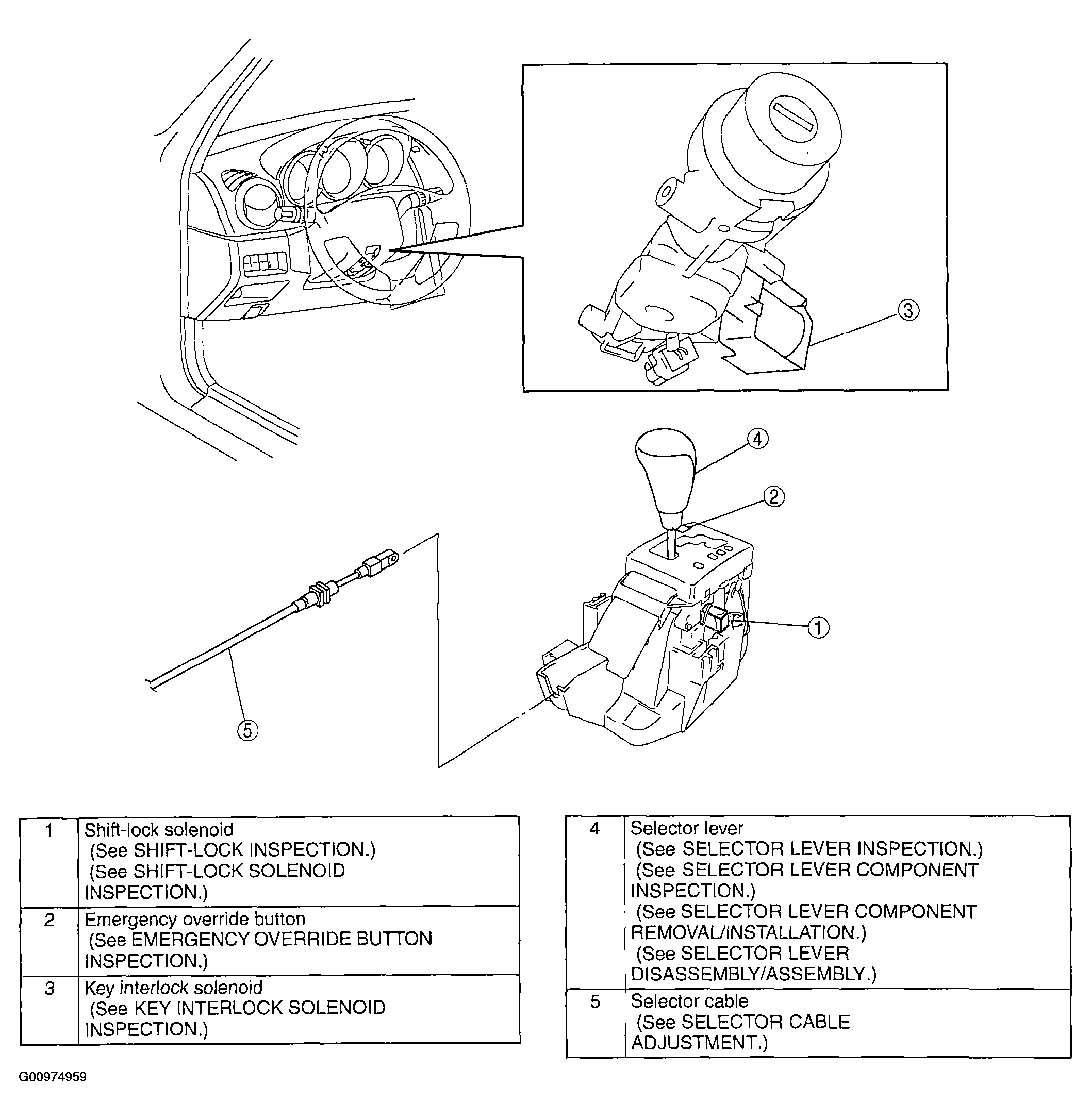

Fig 1: Automatic Transaxle Shift Mechanism Location Index
G00974959Courtesy of MAZDA MOTORS CORP.
