Removal Procedure

WARNING: This page is about a different car, the 2002 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the air inlet grille panel. Refer to AIR INLET GRILLE PANEL REPLACEMENT .
  2. Disconnect the wiper motor electrical connector.
  3. Remove the wiper drive system module screws.
  4. Remove the wiper drive system module from the vehicle.

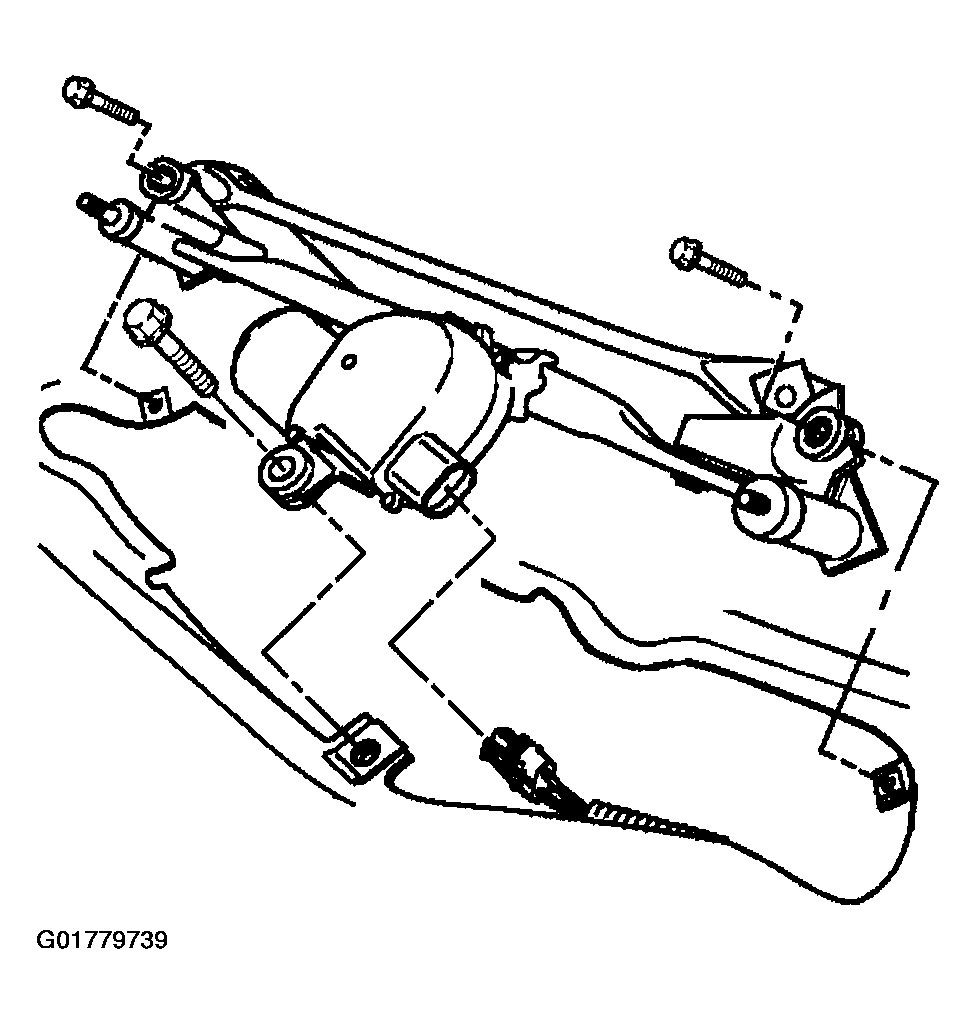

    Fig 1: Removing Wiper Drive System Module
    G01779739Courtesy of GENERAL MOTORS CORP.
  5. Using the J 39232  , disconnect the wiper transmission from the wiper motor crank arm.

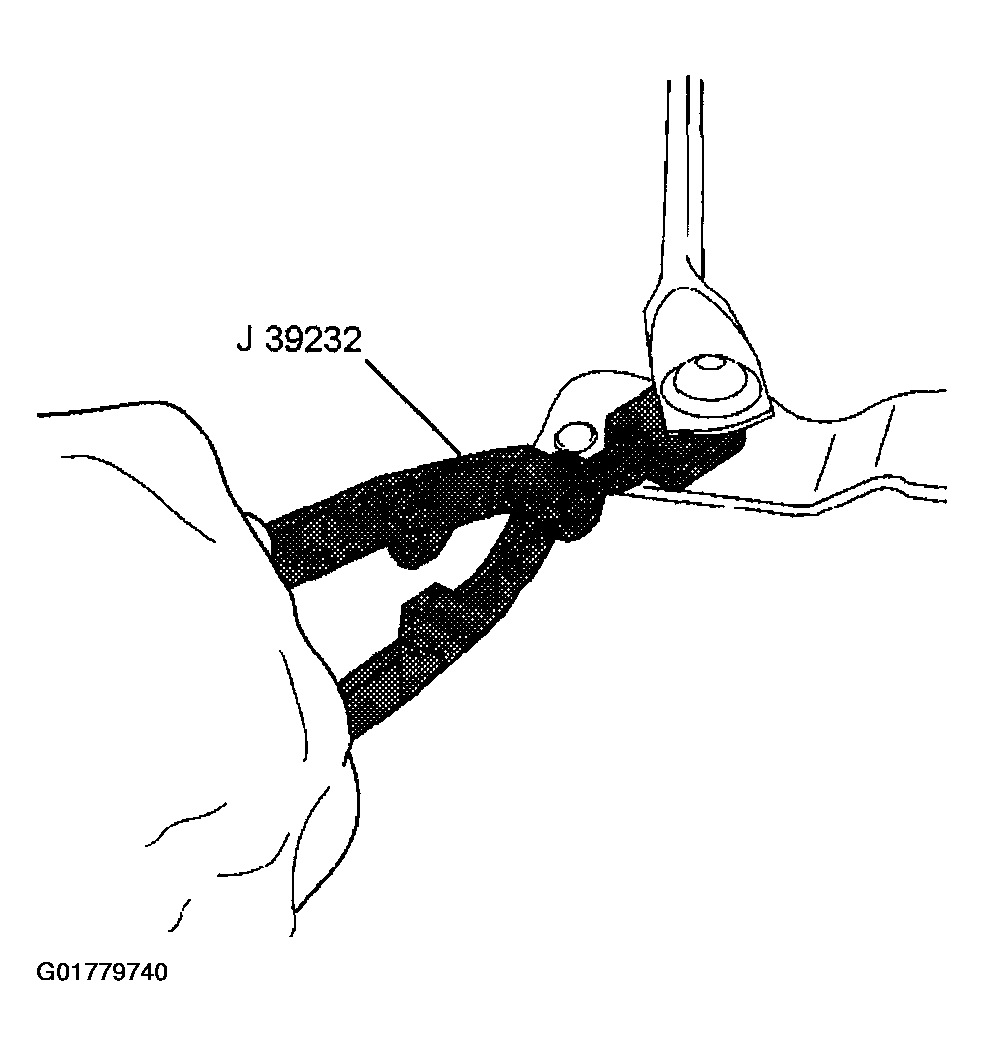

    Fig 2: Disconnecting Wiper Transmission
    G01779740Courtesy of GENERAL MOTORS CORP.
  6. Remove the wiper motor screws.
  7. Remove the wiper motor from the wiper transmission.

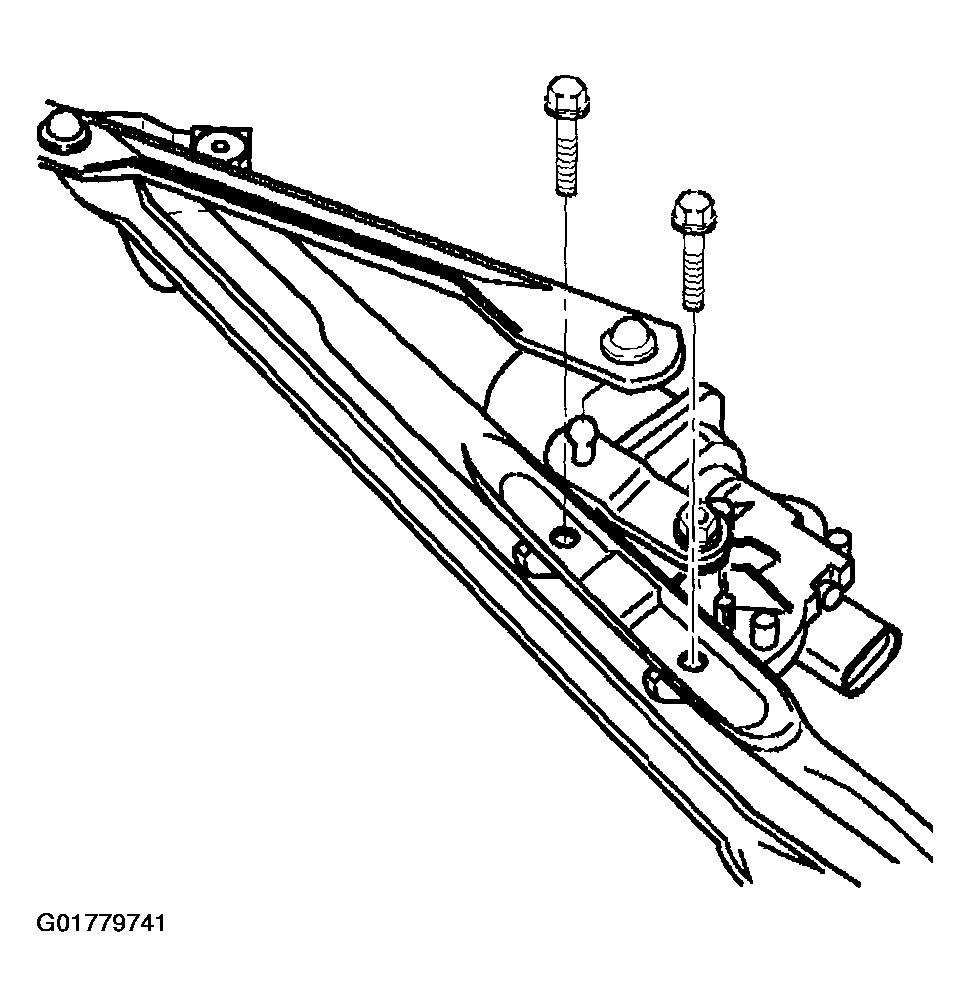

    Fig 3: Removing Wiper Motor
    G01779741Courtesy of GENERAL MOTORS CORP.
