Removal Procedure

WARNING: This page is about a different car, the 2002 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the washer solvent from the washer solvent container.
  2. Remove the air cleaner intake duct.
  3. Disconnect the washer pump electrical connector.
  4. Disconnect the washer hose from the washer pump.
  5. Disconnect the washer solvent level sensor electrical connector.
  6. Remove the washer solvent container screws.
  7. Remove the washer solvent container from the frame rail.

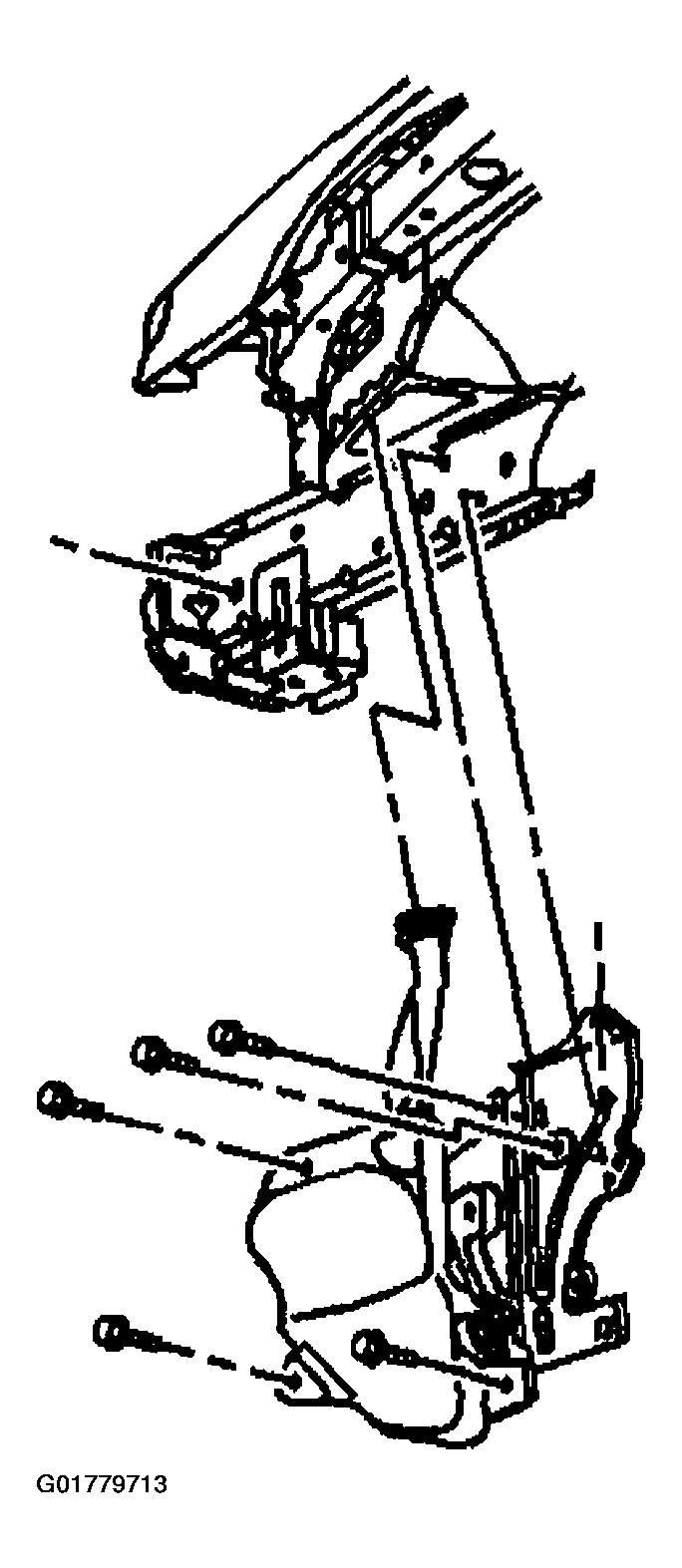

    Fig 1: Removing Washer Solvent Container
    G01779713Courtesy of GENERAL MOTORS CORP.
