Removal Procedure

WARNING: This page is about a different car, the 2002 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the washer solvent from the washer solvent container.
  2. Remove the left front fender liner. Refer to FRONT FENDER LINER REPLACEMENT .
  3. Disconnect the washer pump electrical connector.
  4. Disconnect the washer hose.
  5. Using a small flat-bladed tool, remove the washer pump from the washer solvent container.
  6. Using a small flat-bladed tool, remove the seal from the washer solvent container.

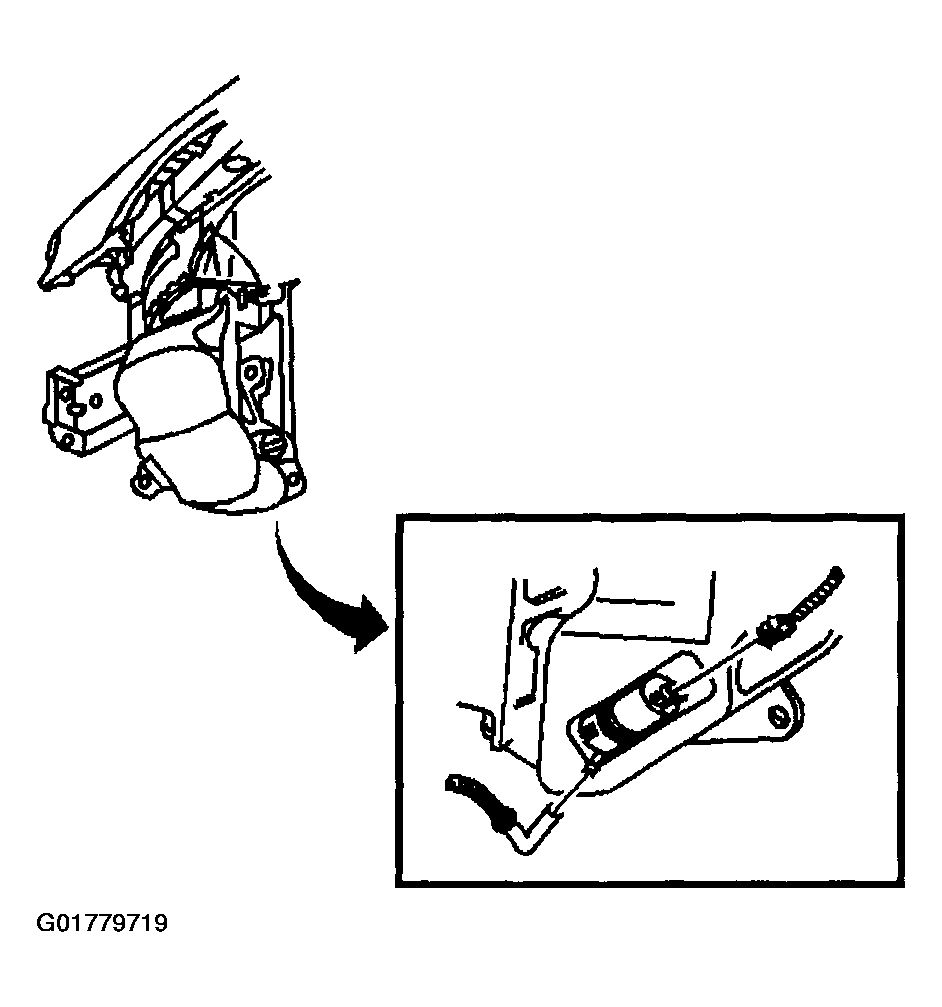

    Fig 1: Removing Washer Pump
    G01779719Courtesy of GENERAL MOTORS CORP.
