Installation Procedure

WARNING: This page is about a different car, the 2002 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.
  1. Position the washer hose to the vehicle.
  2. Connect the washer hose to the air inlet grille panel.
  3. Connect the washer hose to the wiper arms.

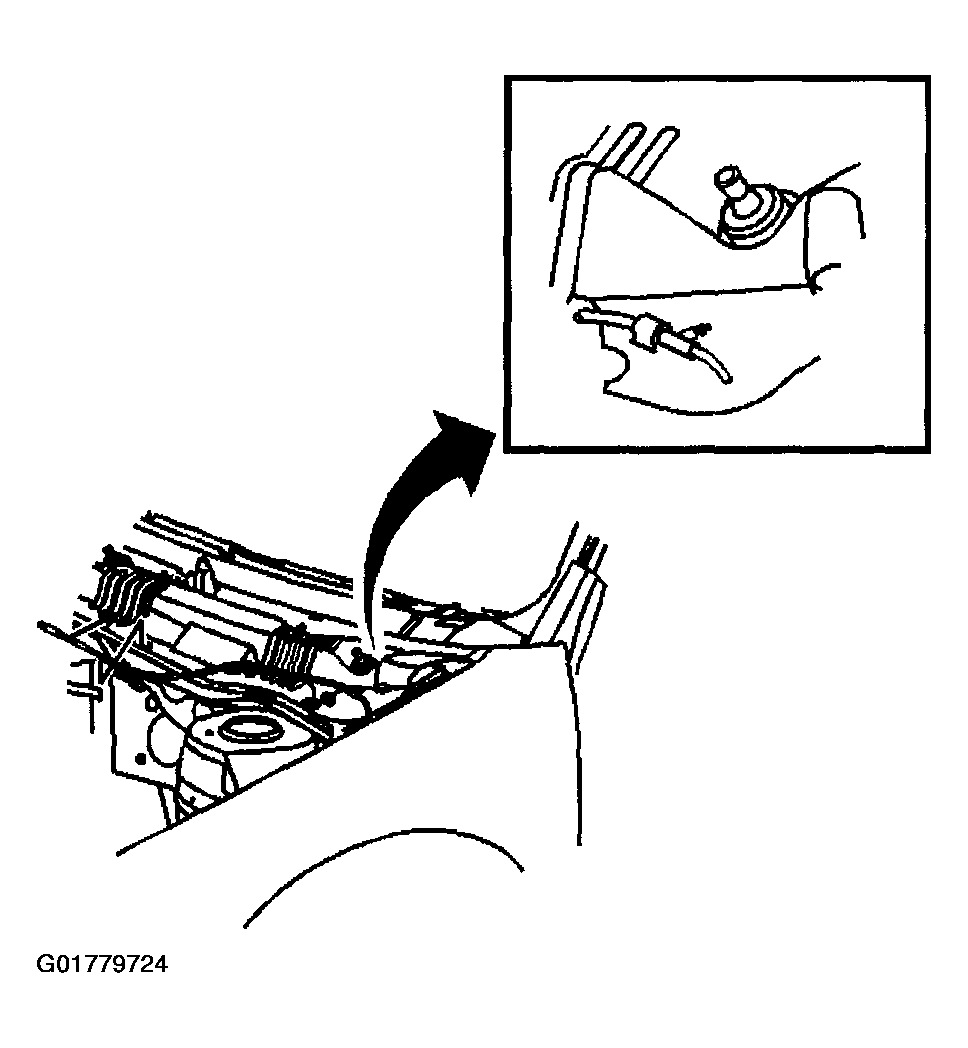

    Fig 1: Installing Washer Hose
    G01779724Courtesy of GENERAL MOTORS CORP.
  4. Route the washer hose pump end down between the battery and the radiator core support to the washer pump.
  5. Connect the washer hose to the left front fender.
  6. Raise the vehicle.

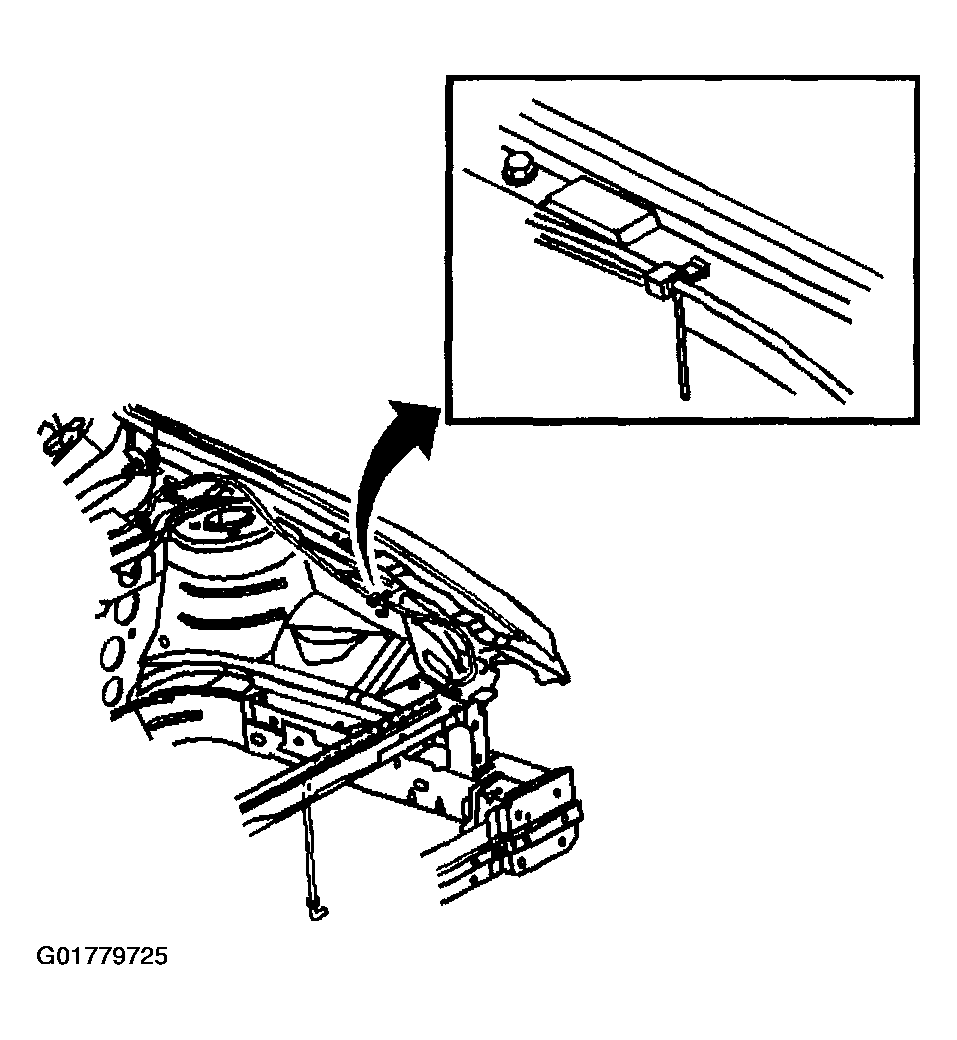

    Fig 2: Connecting Washer Hose From Left Front Fender
    G01779725Courtesy of GENERAL MOTORS CORP.
  7. Connect the washer hose to the washer pump.
  8. Install the left front fender liner. Refer to FRONT FENDER LINER REPLACEMENT .

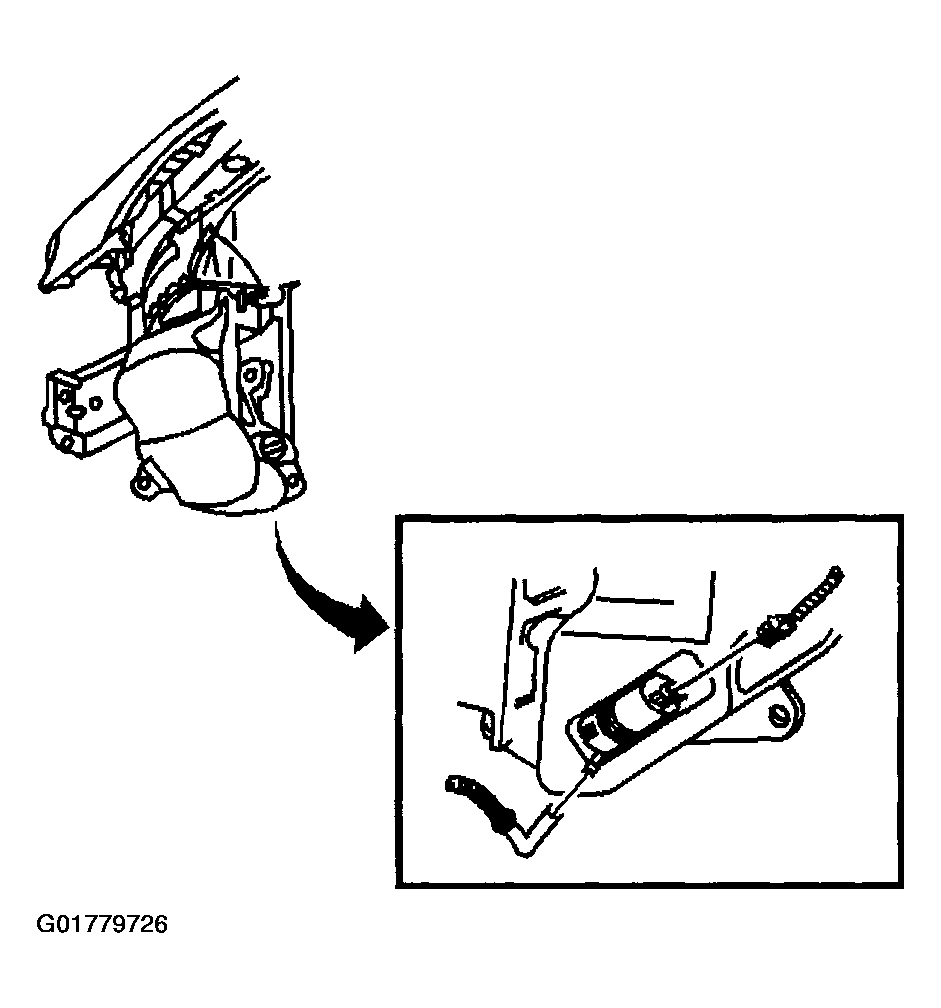

    Fig 3: Connecting Washer Hose From Washer Pump
    G01779726Courtesy of GENERAL MOTORS CORP.
