Installation Procedure

WARNING: This page is about a different car, the 2002 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the radiator inlet hose (2) and the clamps (1) to the radiator and the coolant outlet.
  2. Using the J 38185,  reposition and install the hose clamps at the radiator and the coolant outlet.
  3. Fill the cooling system. Refer to Draining and Filling Cooling System  .

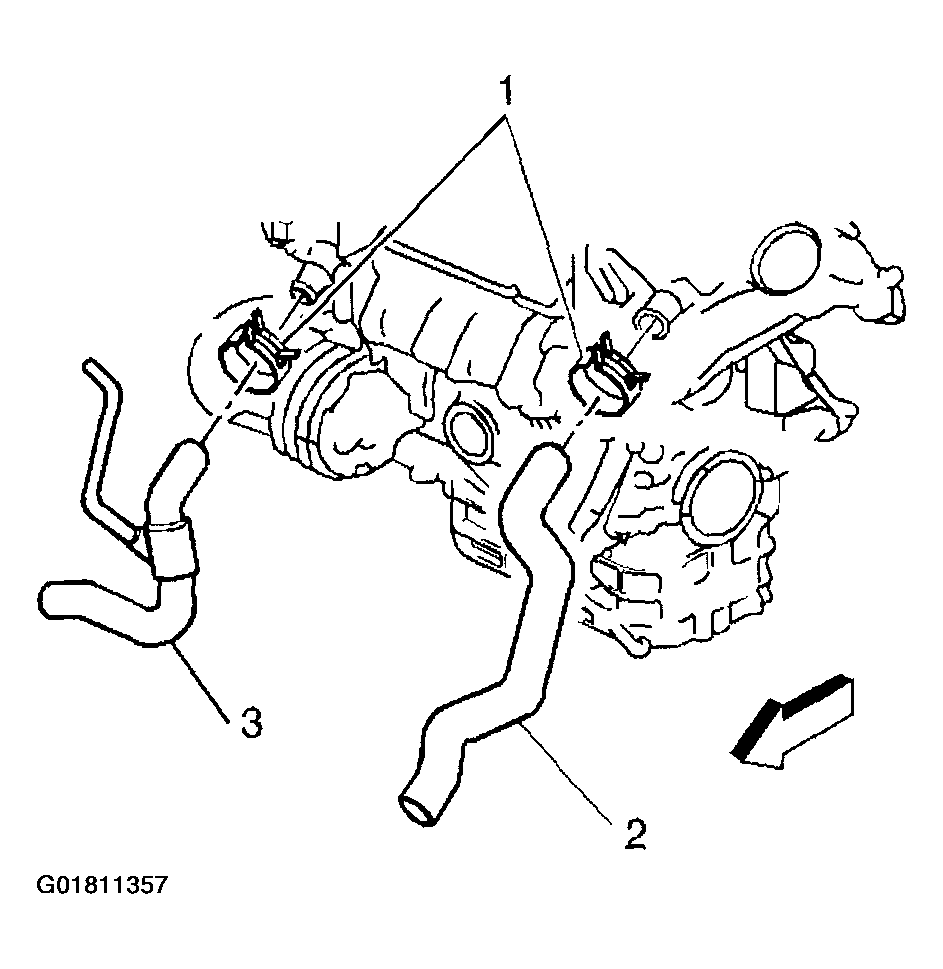

    Fig 1: Installing Radiator Inlet Hose
    G01811357Courtesy of GENERAL MOTORS CORP.
